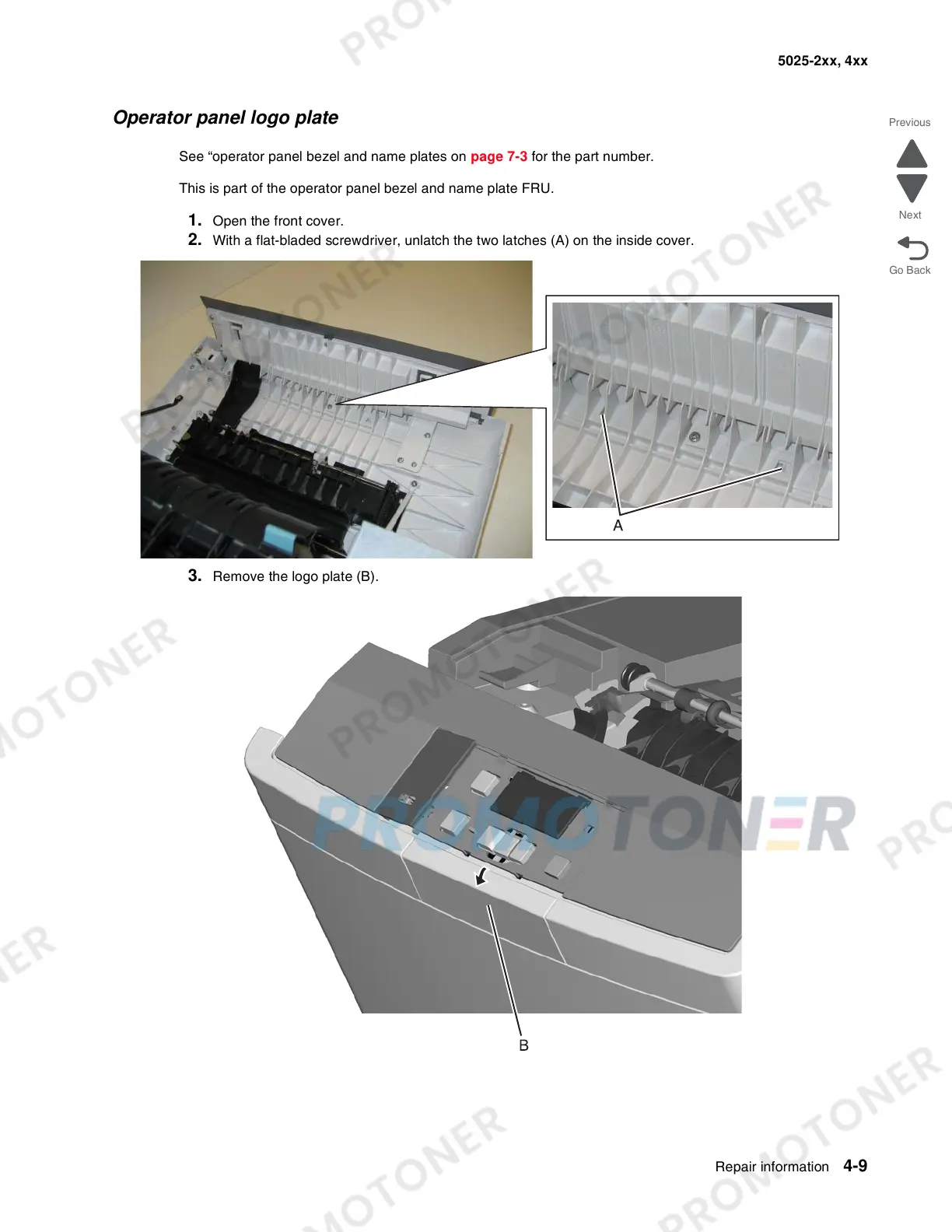

Operator panel logo plate
See “operator panel bezel and name plates on page 7-3 for the part number.
This is part of the operator panel bezel and name plate FRU.
1. Open the front cover.
2. With a flat-bladed screwdriver, unlatch the two latches (A) on the inside cover.
3. Remove the logo plate (B).
