15
Installation

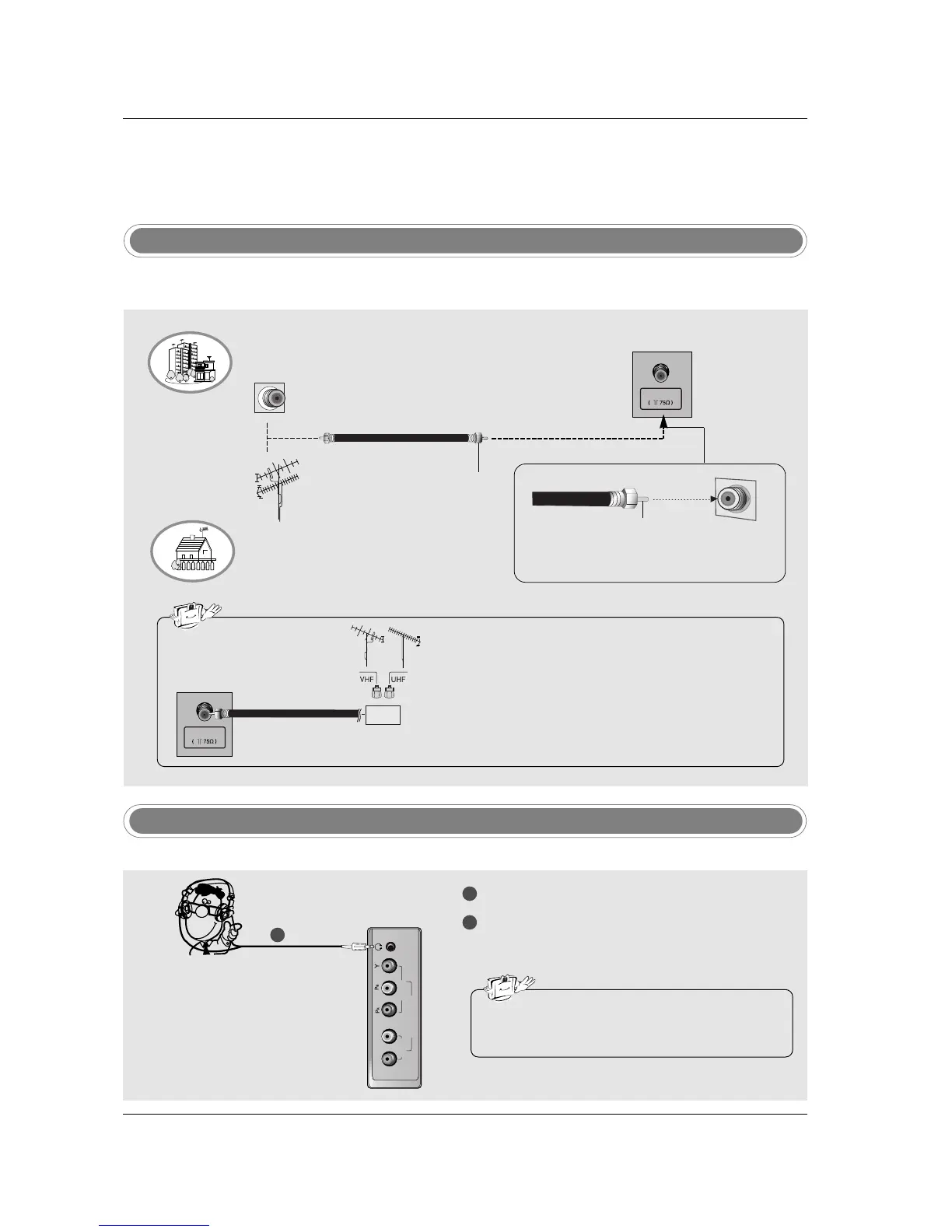

Antenna Connection
- Antenna or Cable Service without a Cable Box Connection.
- For optimum picture quality, adjust antenna direction if needed.
External Equipment Connections
External Equipment Connections
NOTE: All cables shown are not included with the TV
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Outdoor Antenna
Wall Antenna Socket
VHF Antenna
UHF Antenna
RF Coaxial Wire (75 ohm)
Turn clockwise to tighten.
• In a poor signal area to improve picture quality, purchase
and install a signal amplifier.
• If the antenna needs to be split for two TV’s, install a “2-
Way Signal Splitter” in the connections.
• If the antenna is not installed properly, contact your deal-
er for assistance.
Bronze Wire
Be careful not to bend the bronze wire when
connecting the antenna.
Signal
Amplifier
Headphone Socket
1
1
2
Plug the headphone into the headphone socket.
To adjust the headphone volume, press the VOL
DD
/
EE
button. If you press the MUTE button, the
sound from the headphone is switched off.
- You can listen to the sound through the headphone.
• While you are listening to sound through a headphone,
TV speakers will not be heard.
