21
Installation

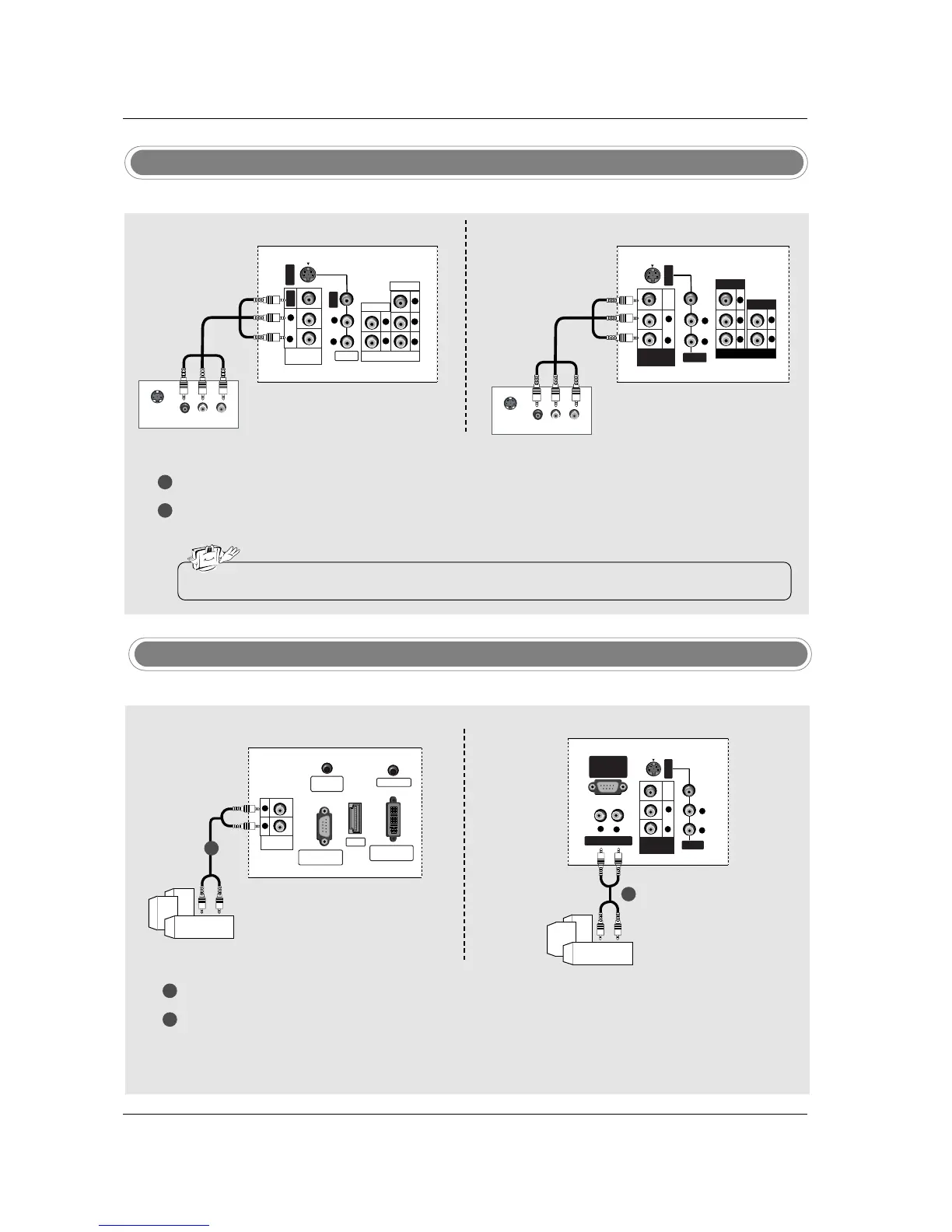

External Stereo
- Use to connected either an external amplifier, or add a sub-woofer to your surround sound system.
1
2
Connect the input jack of the stereo’s amplifier to the VARIABLE AUDIO OUT jacks on the set.
Set up your speakers through your analog stereo amplifier, according to the instructions provided
with the amplifier.
• When connecting with external audio equipments, such as amplifiers or speakers, please turn the TV speakers
off. (Refer to p.37)
PC SOUND
RS-232C INPUT
(CONTROL/SERVICE)
REMOTE
CONTROL
DVI INPUT
(PC/DTV INPUT)
VARIABLE
AUDIO OUT
R
L
HDMI
Analog Stereo Amplifier
TV Back panel (32inch)
1
VIDEO
VARIABLE AUDIO OUT
RS-232C INPUT
(CONTROL
/SERVICE PORT)
S-VIDEO
AUDIO
VIDEO
VIDEO
R
R
L
AUDIO
R
L
L
MONITOR
OUT
Analog Stereo Amplifier
TV Back panel (26inch)
1
Monitor Out Setup
1
2
Connect the second TV or monitor to the TV’s MONITOR OUT jacks.
See the Operating Manual of the second TV or monitor for further details regarding that device’s
input settings.
S-VIDEO
IN
(R) AUDIO (L)
VIDEO
S-VIDEO
PR
PB
Y
R
L
VIDEO
COMPONENT 1
AUDIO
VIDEO
AUDIO
R
L
VIDEO
VIDEO
AUDIO
R
L
MONITOR
OUT
- The TV has a special signal output capability which allows you to hook up a second TV or monitor.
• S-Video, Component 1-2, DVI PC/DVI DTV, HDMI PC/HDMI DTV input sources cannot be used for Monitor out.
TV Back panel (32inch)
S-VIDEO
IN
(R) AUDIO (L)
VIDEO
VIDEO
S-VIDEO
AUDIO
VIDEO
R
L
R
PR PB Y
L
VIDEO
COMPONENT 1
AUDIO
VIDEO
AUDIO
R
L
MONITOR
OUT
TV Back panel (26inch)
