Installation

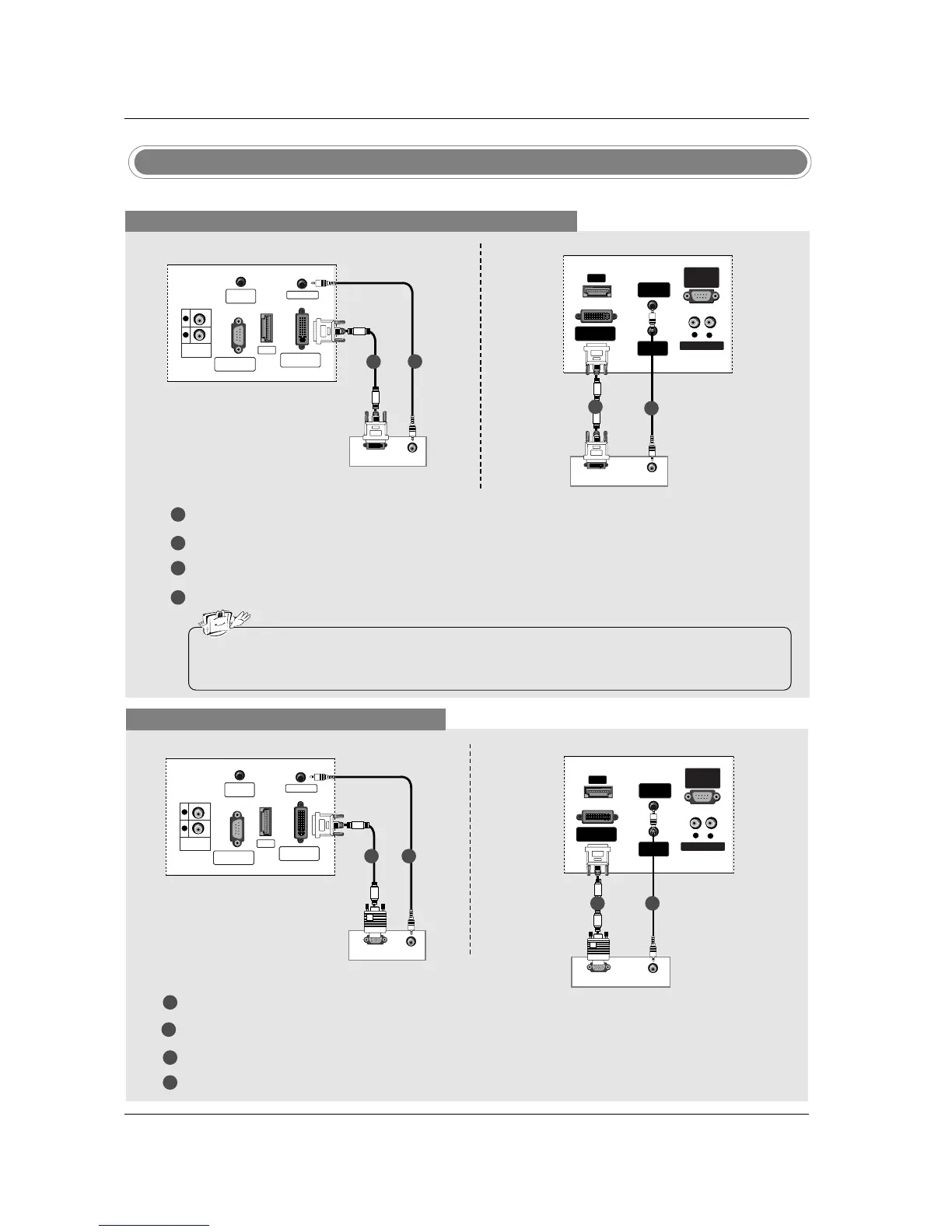

- This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.
Connect the RGB output of the PC to the DVI INPUT (PC/DTV INPUT) jack on the set.
Connect the PC audio outputs to the PC SOUND jack on the set.
Turn on the PC and the set.
Select DVI PC input source with using the INPUT button on the remote control.
PC Setup
1
2
3
4
PC SOUND
RS-232C INPUT
(CONTROL/SERVICE)
REMOTE
CONTROL
DVI INPUT
(PC/DTV INPUT)
VARIABLE
AUDIO OUT
R
L
AUDIO
DVI-PC OUTPUT
HDMI
When connecting with a DVI to D-Sub cable
When connecting with a DVI-D cable
1
2
3
4
PC SOUND
RS-232C INPUT
(CONTROL/SERVICE)
REMOTE
CONTROL
DVI INPUT
(PC/DTV INPUT)
VARIABLE
AUDIO OUT
R
L
AUDIO
RGB-PC OUTPUT
HDMI
1 2
PC
PC
PC
SOUND
REMOTE
CONTROL
DVI INPUT
(PC/DTV INPUT)
VARIABLE AUDIO OUT
RS-232C INPUT
(CONTROL
/SERVICE PORT)
R
L
RGB-PC OUTPUT
AUDIO
HDMI
PC
PC
SOUND
REMOTE
CONTROL
DVI INPUT
(PC/DTV INPUT)
VARIABLE AUDIO OUT
RS-232C INPUT
(CONTROL
/SERVICE PORT)
R
L
AUDIO
DVI-PC OUTPUT
HDMI
PC
1 2
TV Back panel (32inch)
TV Back panel (26inch)
TV Back panel (32inch)
TV Back panel (26inch)
• Connect the signal cable (DVI-D cable, Not DVI to D-Sub cable) from the DVI output socket of the PC to the
DVI input socket of the set when using a PC with DVI output. In some video cards, DVI-Analog output may not
be supported.
Connect the DVI output of the PC to the DVI INPUT (PC/DTV INPUT) jack on the set.
Connect the PC audio outputs to the PC SOUND jack on the set.
Turn on the PC and the set.
Select DVI PC input source with using the INPUT button on the remote control.
1
1
2
2
