Installation

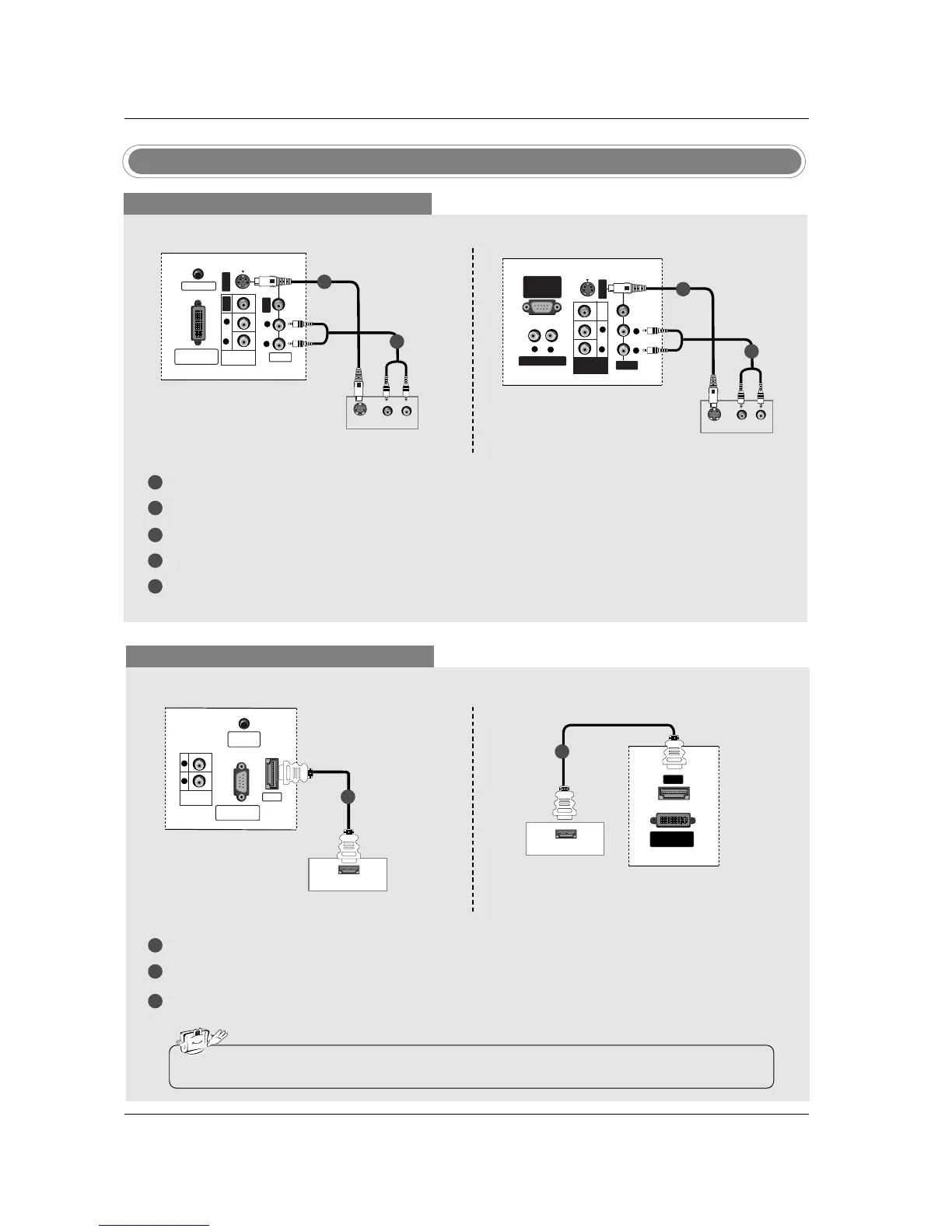

When connecting with a S-Video cable
S-VIDEO
(R) AUDIO (L)
PC SOUND
DVI INPUT
(PC/DTV INPUT)
S-VIDEO
VIDEO
AUDIO
R
L
VIDEO
VIDEO
AUDIO
R
L
MONITOR
OUT
S-VIDEO
(R) AUDIO (L)
VIDEO
VARIABLE AUDIO OUT
RS-232C INPUT
(CONTROL
/SERVICE PORT)
S-VIDEO
AUDIO
VIDEO
VIDEO
R
R
L
AUDIO
R
L
L
MONITOR
OUT
DVD
DVD
1
1
2
2
1
2
3
4
5
Connect the S-VIDEO output of the DVD to the S-VIDEO input on the set.
Connect the audio outputs of the DVD to the AUDIO input jacks on the set.
Turn on the DVD player, insert a DVD.
Select S-Video input source with using the INPUT button on the remote control.
Refer to the DVD player's manual for operating instructions.
When connecting with a HDMI cable
1
2
3
Connect the HDMI output of the DVD to the HDMI jack on the set.
Select HDMI DTV input source with using the INPUT button on the remote control.
Refer to the DVD player's manual for operating instructions.
RS-232C INPUT
(CONTROL/SERVICE)
REMOTE
CONTROL
VARIABLE
AUDIO OUT
R
L
HDMI OUTPUT
HDMI
HDMI OUTPUT
DVI INPUT
(PC/DTV INPUT)
HDMI
DVD
DVD
1
1
• TV can receive the video and audio signal simultaneously with using a HDMI cable.
TV Back panel (32inch)
TV Back panel (26inch)
TV Back panel (32inch)
TV Back panel (26inch)
DVD Setup
