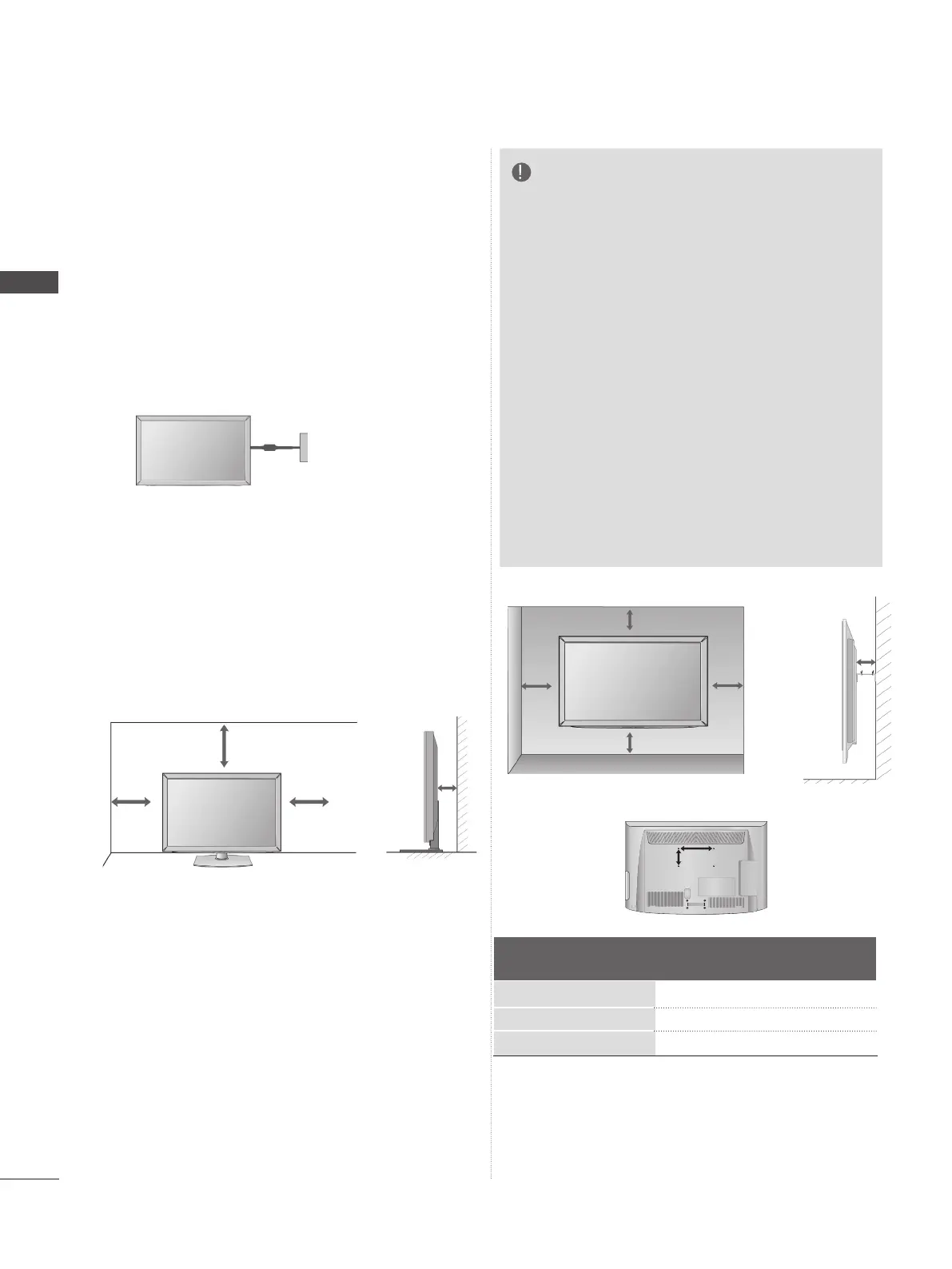

■ The TV can be installed in various ways such as
on a wall, or on a desktop etc.
■ The TV is designed to be mounted horizontally.
Power Supply
Circuit breaker
EARTHING
DESKTOP PEDESTAL
INSTALLATION
WALL MOUNT: HORIZONTAL
INSTALLATION
■ We recommend the use of a LG Brand wall
mounting bracket when mounting the TV to a
wall.
■ We recommend that you purchase a wall
mounting bracket which supports VESA stan-
dard.
■ LG recommends that wall mounting be per-
formed by a qualified professional installer.
10 cm
10 cm
10 cm
10 cm
For adequate ventilation allow a clearance of 10
cm all around the TV.
B
A
Model
VESA
(A
*
B)
Standard
Screw
Quantity
22LD3
***
26/32LD3
***
37/42LD3***
100
*
100
200
*
100
200
*
200
M4
M4
M6
4
4
4
10 cm
10 cm
10 cm
10 cm
10 cm
NOTE
► Should Install wall mount on a solid wall per-
pendicular to the floor.
► Should use a special wall mount, if you want to
install it to ceiling or slanted wall.
► The surface that wall mount is to be mounted
on should be of sufficient strength to support
the weight of TV set; e.g. concrete, natural
rock, brick and hollow block.
► Installing screw type and length depends on
the wall mount used. Further information, refer
to the instructions included with the mount.
► LG is not liable for any accidents or damage to
property or TV due to incorrect installation:
- Where a non-compliant VESA wall mount is
used.
- Incorrect fastening of screws to surface
which may cause TV to fall and cause per-
sonal injury.
- Not following the recommended Installation
method.
■ Image shown may differ from your TV.
Ensure that you connect the earth wire to prevent
possible electric shock. If grounding methods are
not possible, have a qualified electrician install a
separate circuit breaker.
Do not try to earth the TV by connecting it to tele-
phone wires, lightening rods or gas pipes.
