3
EXTERNAL EQUIPMENT SETUP

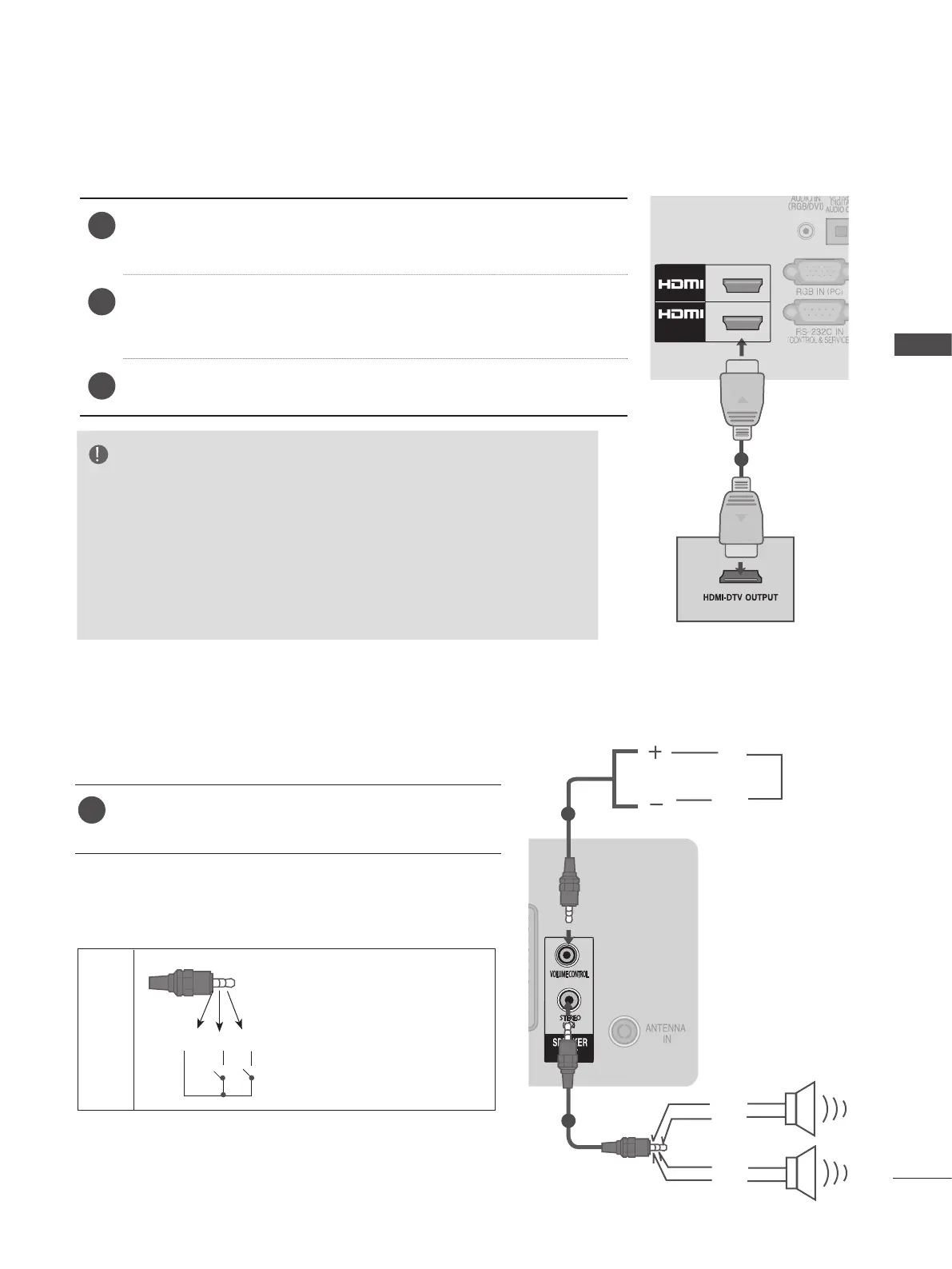

CONNECTING WITH AN HDMI CABLE
CONNECTING WITH A COMPONENT CABLE
NOTE
► The TV can receive video and audio signals simultaneously when
using an HDMI cable.
► If the DVD does not support Auto HDMI, you must set the output reso-
lution appropriately.
► Check that your HDMI cable is High Speed HDMI Cable. If the HDMI
cables are not High Speed HDMI Cable, flickering or no screen dis-
play can result. Please use the High Speed HDMI Cable.
1
Connect the HDMI output of the external equipment (digital set-
top box, DVD, etc.) to HDMI/DVI IN 1, HDMI 2 (Except for
22LD3
***
) jack on the TV.
2
Turn on the external equipment.
(
Refer to the external equipment's manual for operating instruc-
tions.)
3
Select HDMI1, HDMI2 (Except for 22LD3
***
) input source using
the INPUT button on the remote control.
1
2
/DVI IN
1
Connect the external speaker to the SPEAKER
OUTPUT(STEREO) jack on the TV.
1
Method of Volume control port
Cable
Spec.
GND / Up / Down
• Each Up/ Down pin is
pulled to 3.3V with CPU
GPIO.
• CPU detects transition
from 3.3V to GND level for
volume control.
SPEAKER OUTPUT SETUP
Control port for Speaker out
UP
DOWN
GND
RIGHT
LEFT
GND
1
1
