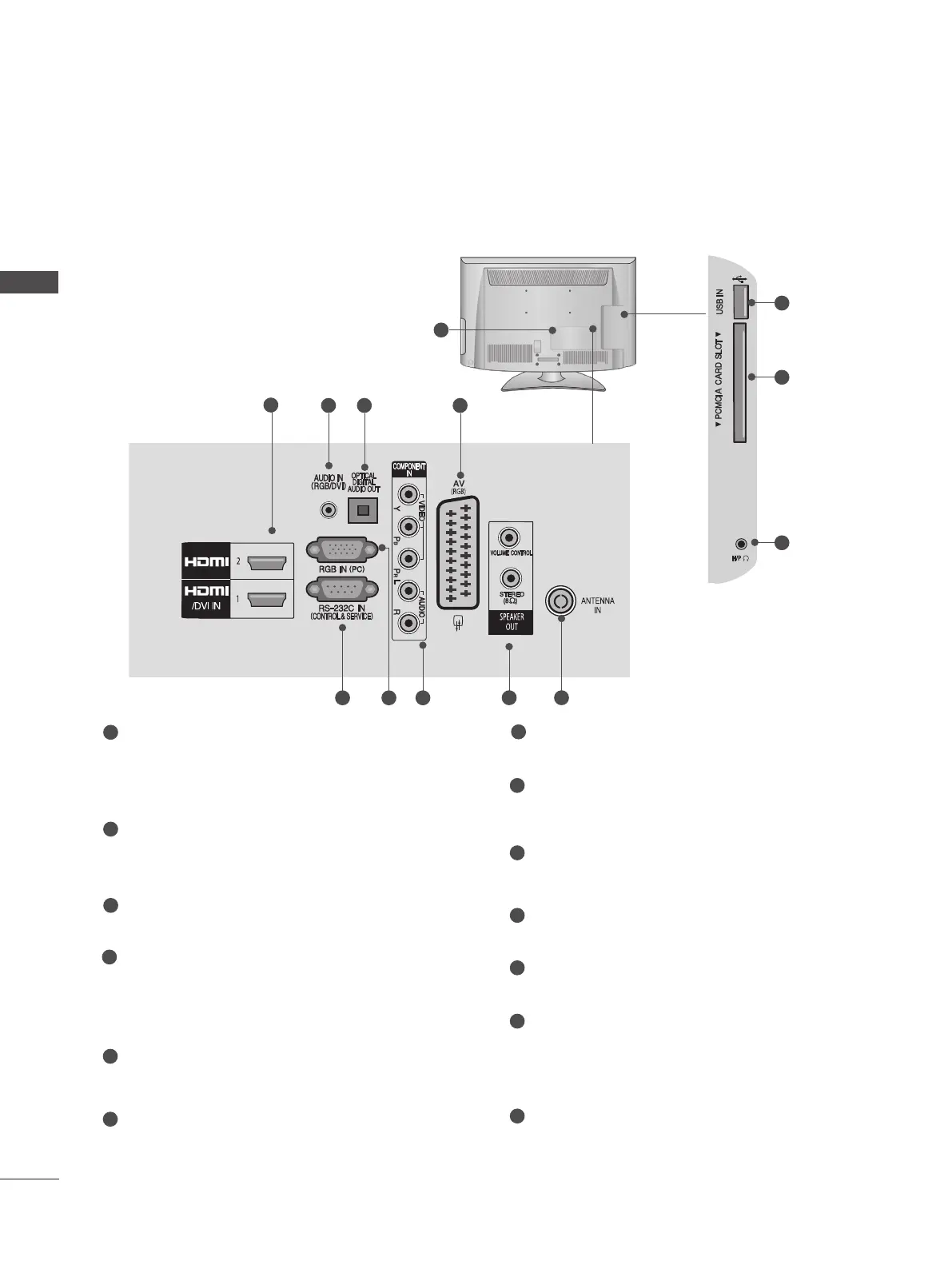

Power Cord Socket
This TV operates on an AC power. The volt-
age is indicated on the Specifications page.
(► p.120) Never attempt to operate the TV
on DC power.
HDMI/DVI IN Input
Connect an HDMI signal to HDMI IN. Or DVI
(VIDEO) signal to HDMI/DVI port with DVI to
HDMI cable.
RGB/DVI Audio Input
Connect the audio from a PC or DTV.
OPTICAL DIGITAL AUDIO OUT
Connect digital audio to various types of
equipment.
Connect to a Digital Audio Component.
Use an Optical audio cable.
Euro Scart Socket (AV)
Connect scart socket input or output from an
external device to these jacks.
RS-232C IN (CONTROL & SERVICE) PORT
Connect to the RS-232C port on a PC.
This port is used for Service or Hotel mode.
RGB IN Input
Connect the output from a PC.
Component Input
Connect a component video/audio device to
these jacks.
SPEAKER OUTPUT(STEREO)
The phone socket for external speaker is on
this jack.
Antenna Input
Connect antenna or cable to this jack.
USB Input
Connect USB storage device to this jack.
PCMCIA (Personal Computer Memory
Card International Association) Card Slot
Insert the CI Module to PCMCIA CARD
SLOT.
(This feature is not available in all countries.)
Headphone Socket
Plug the headphone into the headphone
socket.
1
2
3
4
5
6
7
8
9
10
11
12
13
