PREPARATION
PREPARATION
40

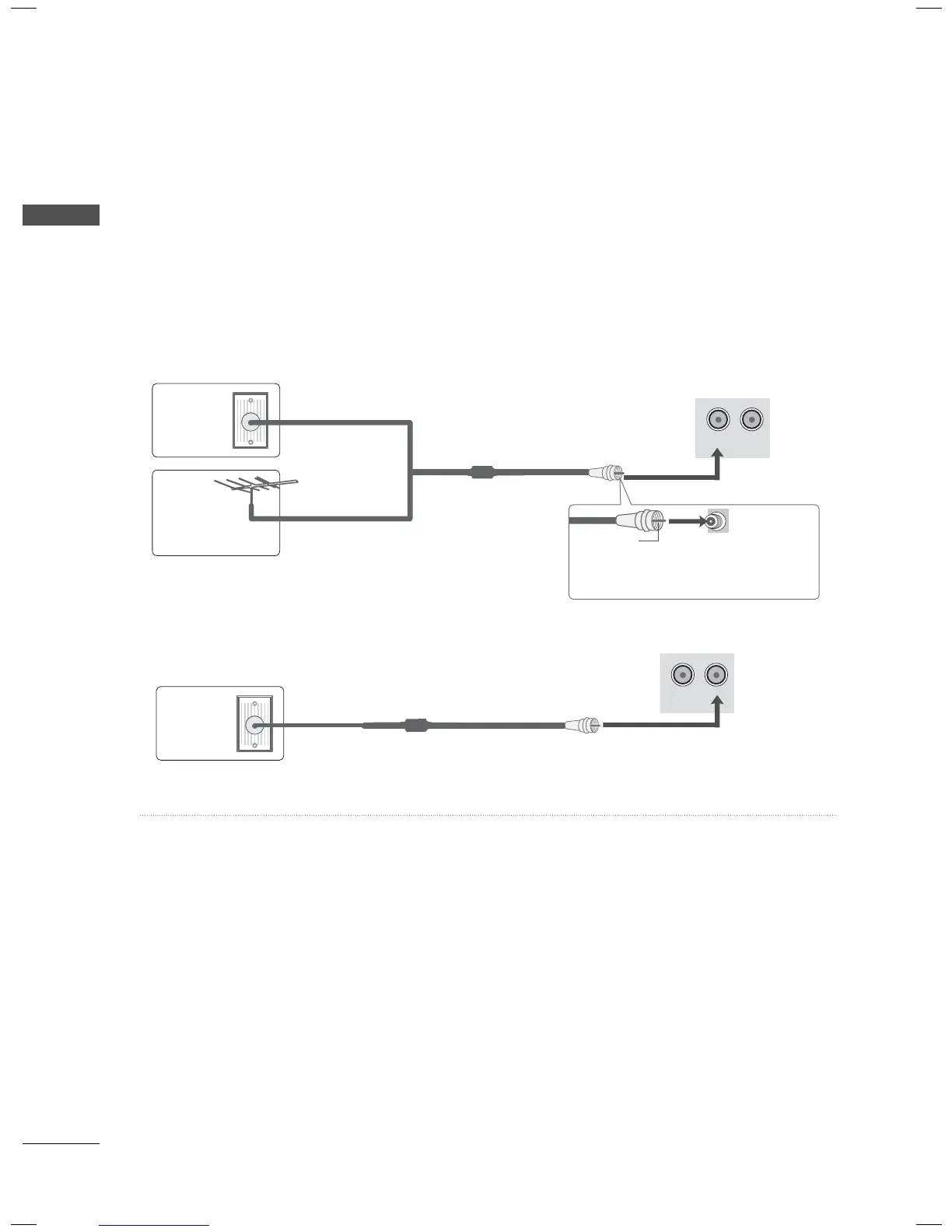

ANTENNA OR CABLE CONNECTION
ꔛ
To prevent damage do not connect to the power outlet until all connections are made between the
devices.
ꔛ
Image shown may differ from your TV.
1. Antenna (Analog or Digital)
Wall Antenna Socket or Outdoor Antenna without a Cable Box
Connections.
For optimum picture quality, adjust antenna direction if needed.
2. Cable
Wall
Antenna
Socket
Outdoor
Antenna
(VHF, UHF)
Cable TV
Wall Jack
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
RF Coaxial Wire (75 Ω)
RF Coaxial Wire (75 Ω)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Be careful not to bend the copper wire
when connecting the antenna.
Copper Wire
ꔛ
To improve the picture quality in a poor signal area, please purchase a signal amplifier and install
properly.
ꔛ
If the antenna needs to be split for two TV’s, install a 2-Way Signal Splitter.
ꔛ
If the antenna is not installed properly, contact your dealer for assistance.
