EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
42

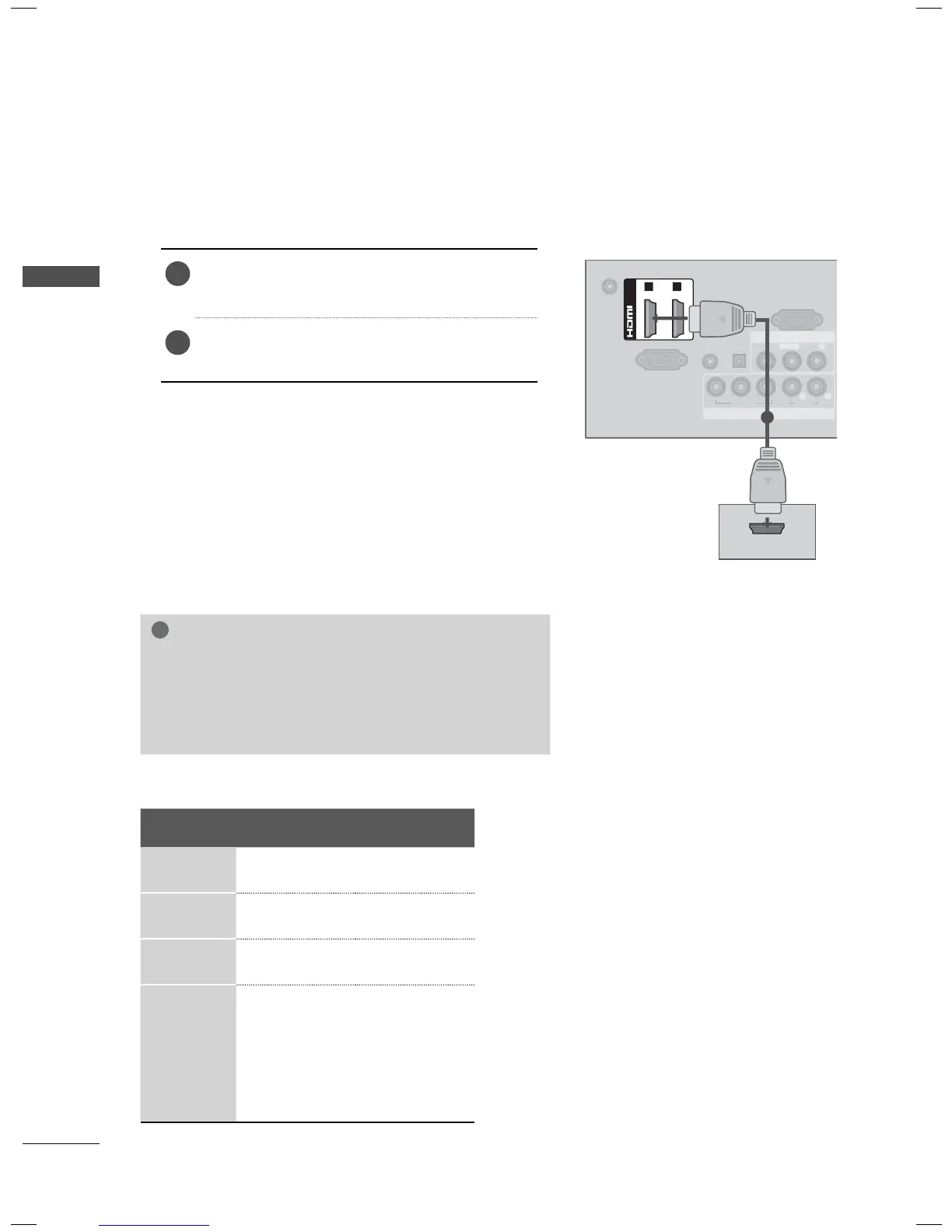

HDMI Connection
1. How to connect
1
Connect the digital set-top box to HDMI/DVI IN
1, 2, 3*, or 4** jack on the TV.
2
No separate audio connection is necessary.
HDMI supports both audio and video.
2. How to use
ꔛ
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-
top box.
)
ꔛ
Select the HDMI, HDMI1, HDMI2 HDMI3*, or
HDMI4** input source on the TV using the INPUT
button on the remote control.
!
NOTE
► If an HDMI cable doesn’t support High Speed HDMI,
it can cause flickers or no screen display. In this case
use the latest cables that support High Speed HDMI.
► HDMI Audio Supported Format: Dolby Digital (32 KHz, 44.1
KHz, 48 KHz), Linear PCM (32 KHz, 44.1 KHz, 48 KHz)
HDMI-DTV
Resolution
Horizontal
Frequency
(
KHz
)
Vertical
Frequency
(
Hz
)
720x480p
31.47 59
.94
31.50 60.00
1280x720p
44.96 59.94
45.00 60.00
1920x1080i
33.72 59.94
33.75 60.00
1920x1080p
26.97 23.976
27.00 24.00
33.71 29.97
33.75 30.00
67.432 59.94
67.50 60.00
DC-IN
RGB IN (PC)
AUDIO IN
RGB/DVI
OPTICAL
DIGITAL
AUDIO OUT
COMPONENT IN
AV IN
RS-232C IN
( CONTROL&SERVICE)
VIDEO AUDIO
L(MONO)
R
VIDEO
AUDIO
YP B P R
L R
(DVI)
/DVI IN
1 2
HDMI OUTPUT
1
* HDMI3: For 26LE5300, 22/26LE6500, 32/42/47/55LE4600
** HDMI4: For 32/37/42/47/55LE5300
