DVI to HDMI Connection

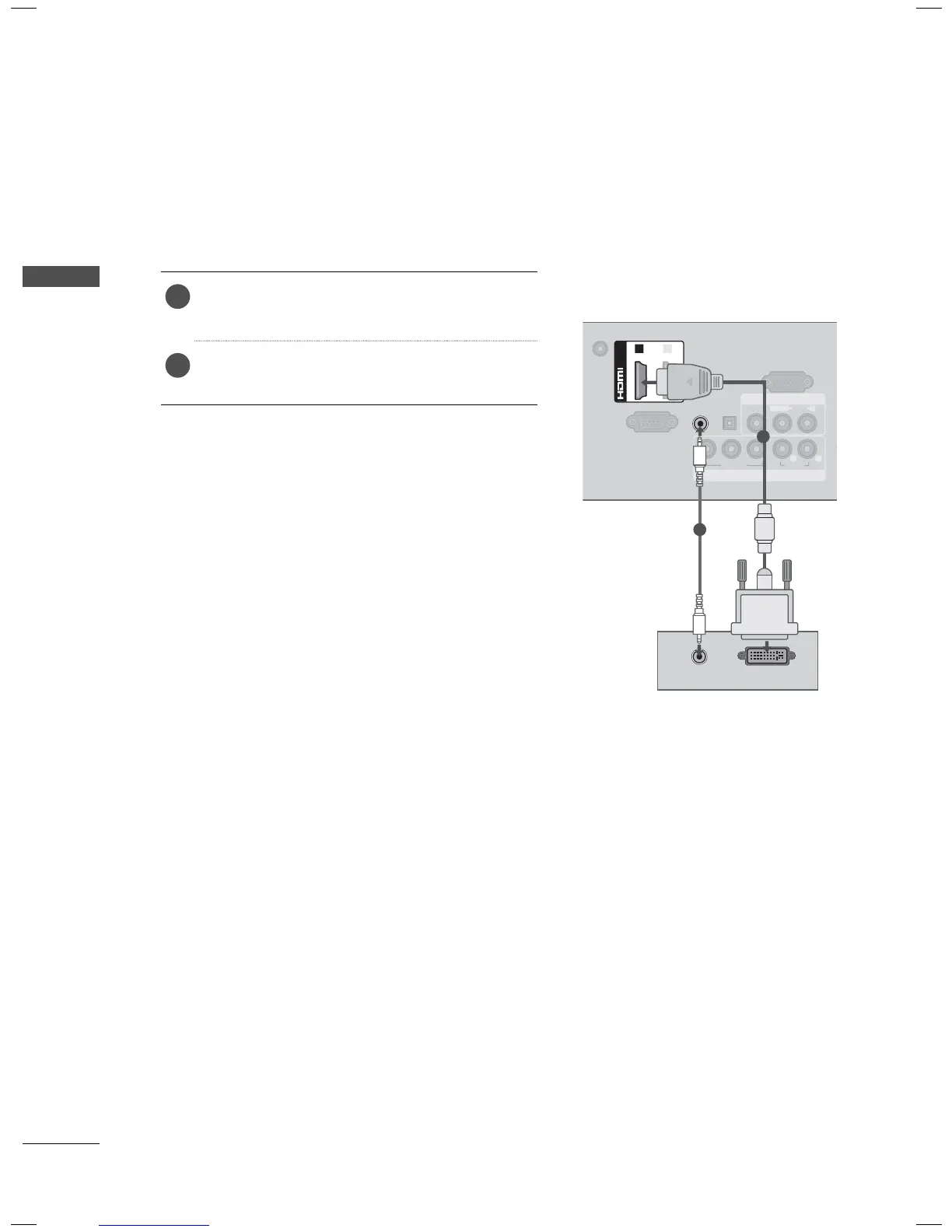

1. How to connect
1
Connect the DVI output of the PC to the HDMI/
DVI IN or 1 jack on the TV.
2
Connect the PC audio output to the AUDIO IN
(RGB/DVI) jack on the TV.
2. How to use
ꔛ
Turn on the PC and the TV.
ꔛ
Select the HDMI or HDMI1 input source on the TV
using the INPUT
button on the remote control.
DC-IN
RGB IN (PC)
AUDIO IN
RGB/DVI
OPTICAL
DIGITAL
AUDIO OUT
COMPONENT IN
AV IN
RS-232C IN
(
CONTROL&SERVICE)
VIDEO
AUDIO
L(MONO)
R
VIDEO
AUDIO
YP
B
P
R
L R
(DVI)
/DVI IN
1 2
DVI OUTPUT
AUDIO
A
1
2
