EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
44

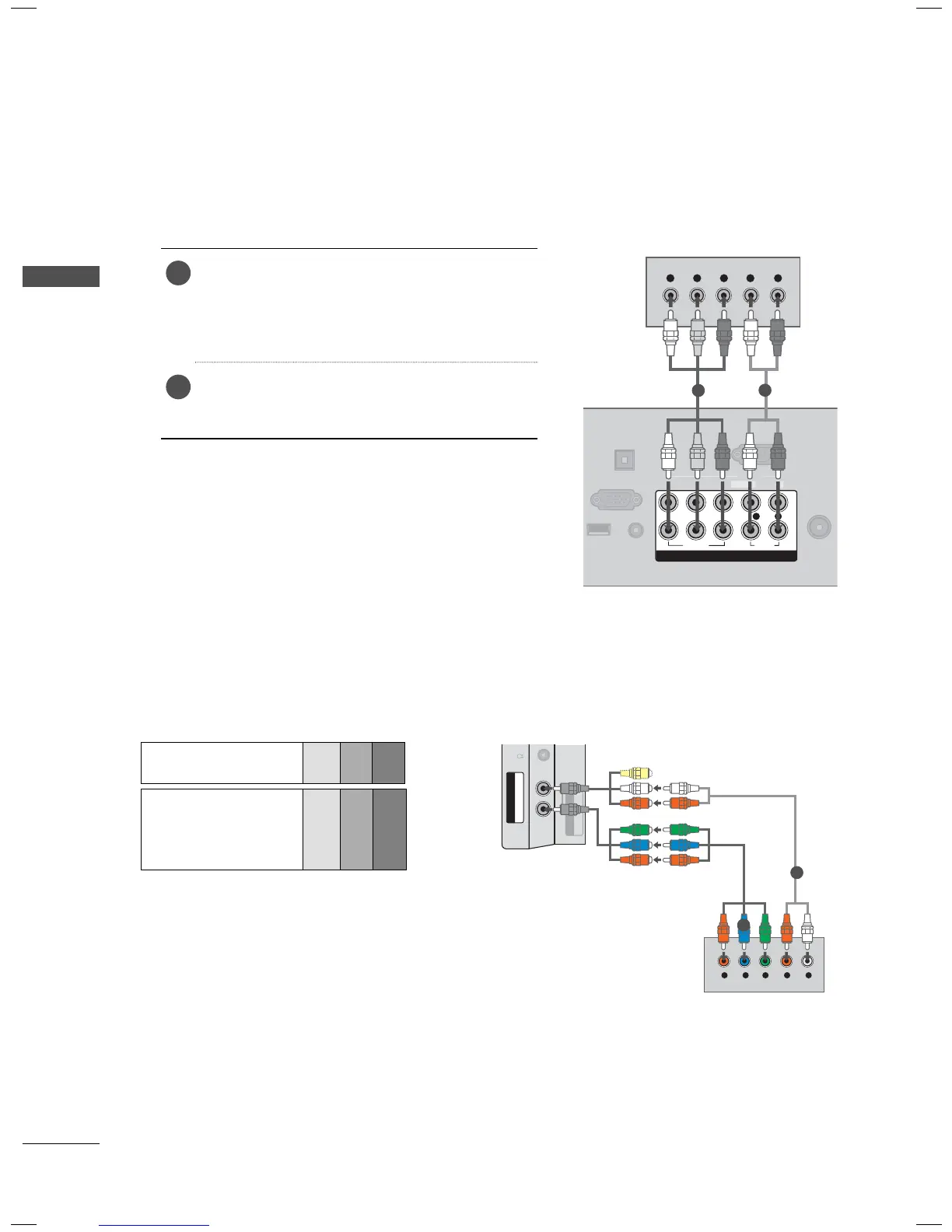

DVD SETUP
1. How to connect
1
Connect the video outputs
(
Y, P B, PR
)
of the
DVD to the COMPONENT IN VIDEO 1 or 2 *
jacks on the TV.
Match the jack colors
(
Y = green, P
B = blue, and
P
R = red
)
.
2
Connect the audio outputs of the DVD to the
COMPONENT IN AUDIO 1 or 2 * jacks on the
TV.
2. How to use
ꔛ
Turn on the DVD player, insert a DVD.
ꔛ
Select the Component, Component1 or
Component2* input source on the TV using the
INPUT button on the remote control.
ꔛ
Refer to the DVD player’s manual for operating
instructions.
Component Connection
RGB IN (PC)
WIRELESS
CONTROL
AUDIO IN
(RGB/DVI)
RS-232C IN
( CONTROL&SERVICE)
OPTICAL
DIGITAL
AUDIO OUT
AV IN 1
VIDEO AUDIO
L(MONO)
R
VIDEO
AUDIO
COMPONENT IN
2
1
YP B P R
L R
Y L RP B P R
ANTENNA
IN
1
2
* Component2: For Plasma TV, 32/37/42/47/55LE5300,
32/42/47/55LE4600
Component Input ports
To get better picture quality, connect a DVD
player to the component input ports as shown
below.
Component ports on
the TV
YPB PR
Video output ports
on DVD player
YPB PR
YB-YR-Y
YCbCr
YPbPr
H/P
AV IN2
VIDEO / AUDIO
Y P
B
P
R
/
AUDIO
COMPONENT IN2
Y LRP B P R
For 32/37/42/47/55LE5300,
32/42/47/55LE4600
1
2
