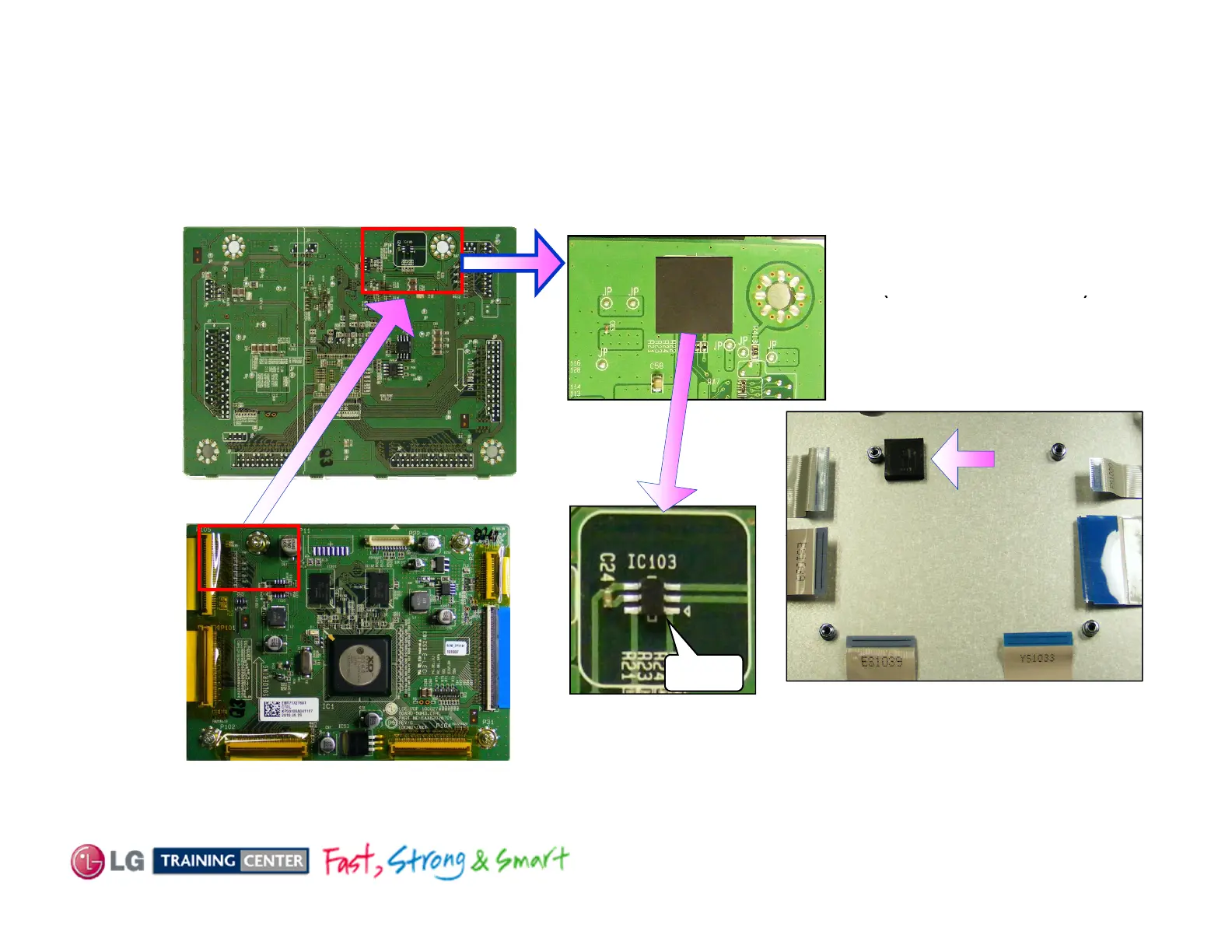

Control Board Temperature Sensor Location (Chocolate)Control Board Temperature Sensor Location (Chocolate)
With Chocolate
The panel is monitored for temperature. The panel’s temperature is transferred through the
(Chocolate) to the Temp. Sensor on the back of the board.
BACK SIDE OF
THE BOARD
With
Chocolate
(Heat Transfer Material)
Covering the Temp IC.
The Chocolate
(
Heat Transfer Material
)
(
)
may stick to the Panel.
Be sure to put it in the
right place if the board
is removed.
CONTROL BOARD
LOCATION
CONTROL BOARD TEMPERATURE
03) Gnd
02) Gnd
04) 3.3V
05) Gnd
IC103
Pin 1
May 2011 50PV450 Plasma
108
CONTROL
BOARD
TEMPERATURE
SENSOR LOCATION
02)
Gnd
01) 3.3V
05)
Gnd
06) 3.3V
