P121 Left P121 Left X Drive X Drive Connector Connector from Yfrom Y--SUS SUS P203 P203 InformationInformation
Voltage and Diode Mode Measurement (No Stand-By Voltages)
Heat Sink Removed
Pin Label Run Diode Mode

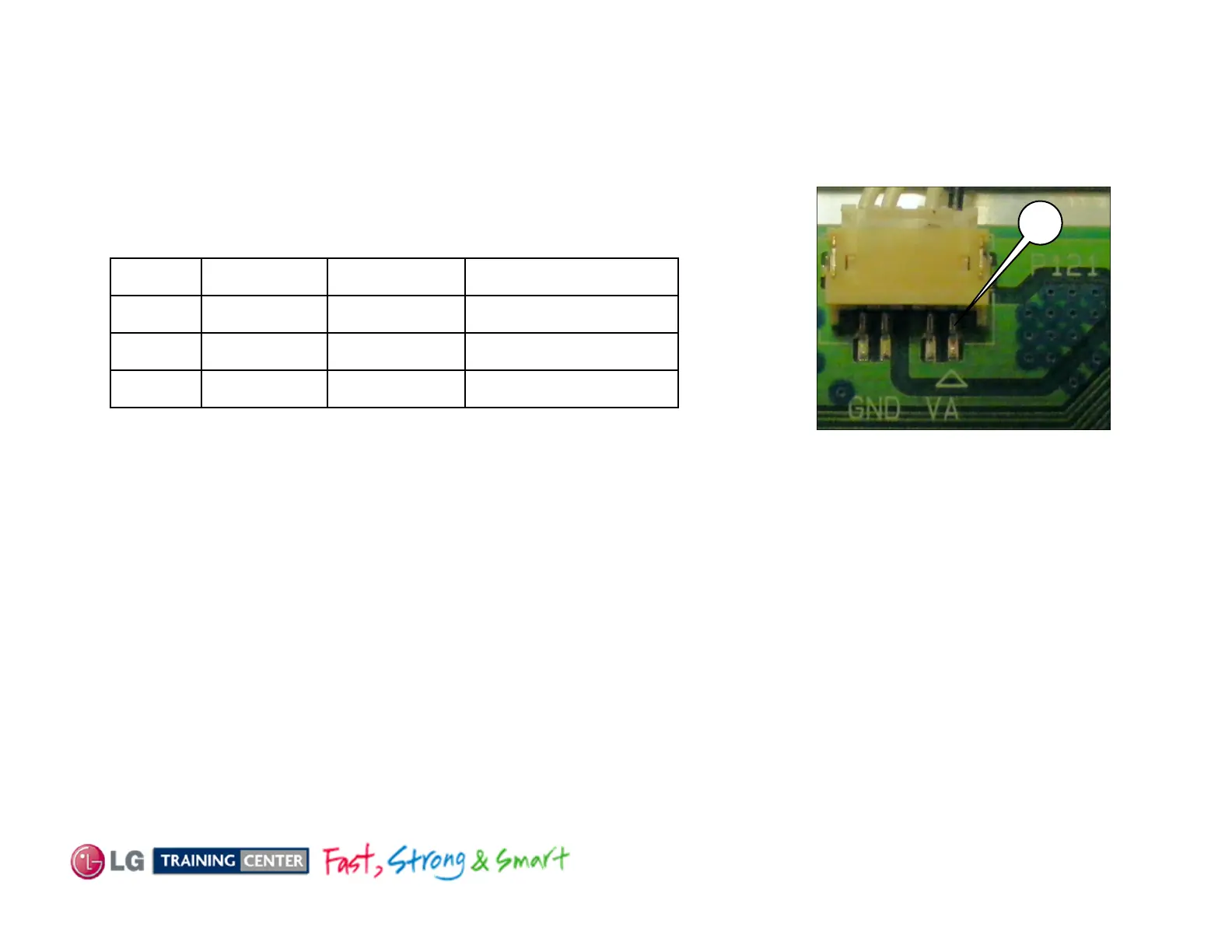

P121 Connector " X-Drive Left Board" from "Y-SUS” P203
1
1-2 VA *55V Open
3 n/c n/c n/c
4-5 Gnd Gnd Gnd
* Note: This voltage will vary in accordance with Panel Label.
There are no Stand-By voltages on this connector.
May 2011 50PV450 Plasma
131
Diode Mode Readings taken with all connectors Disconnected. Black lead on Gnd. DVM in Diode Mode.
To Next Page
