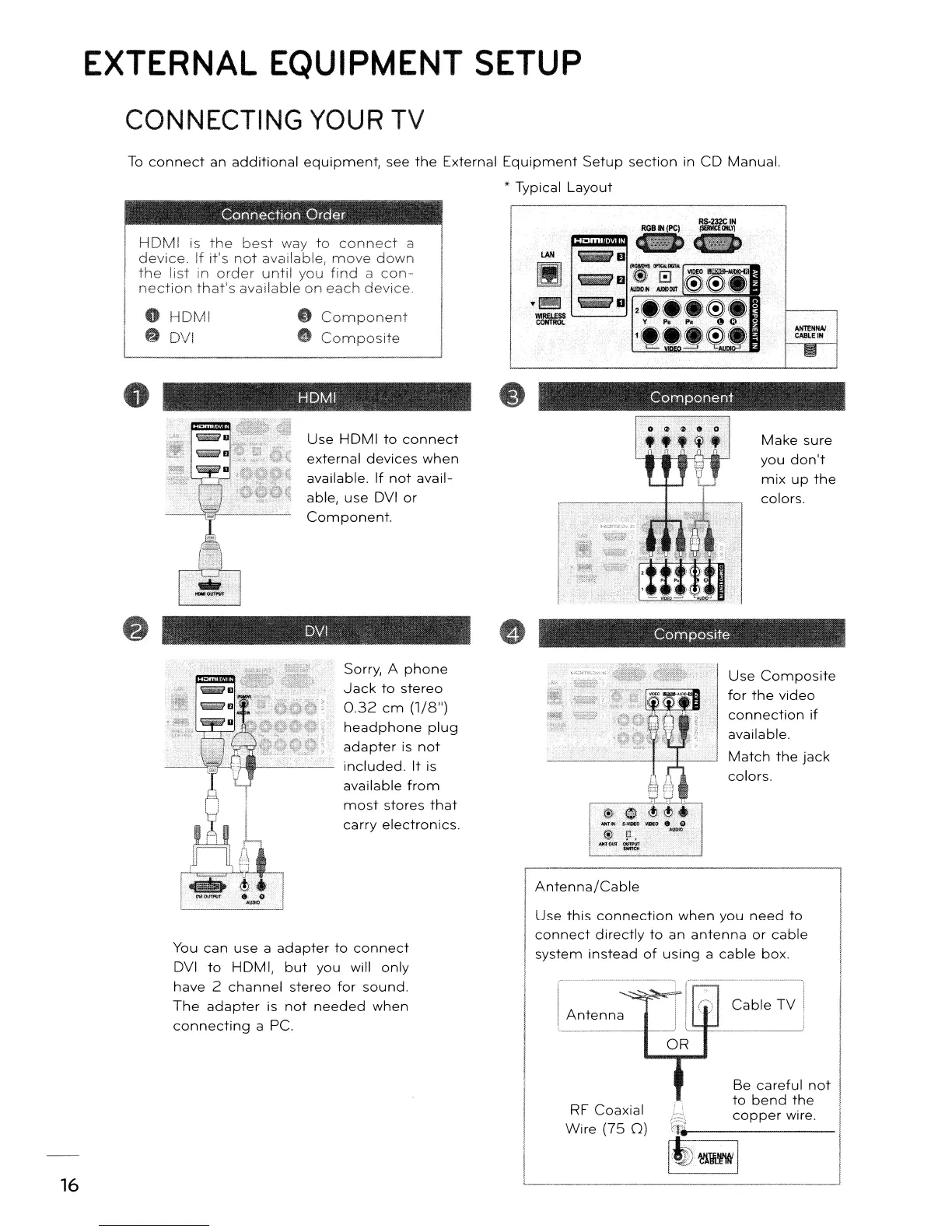

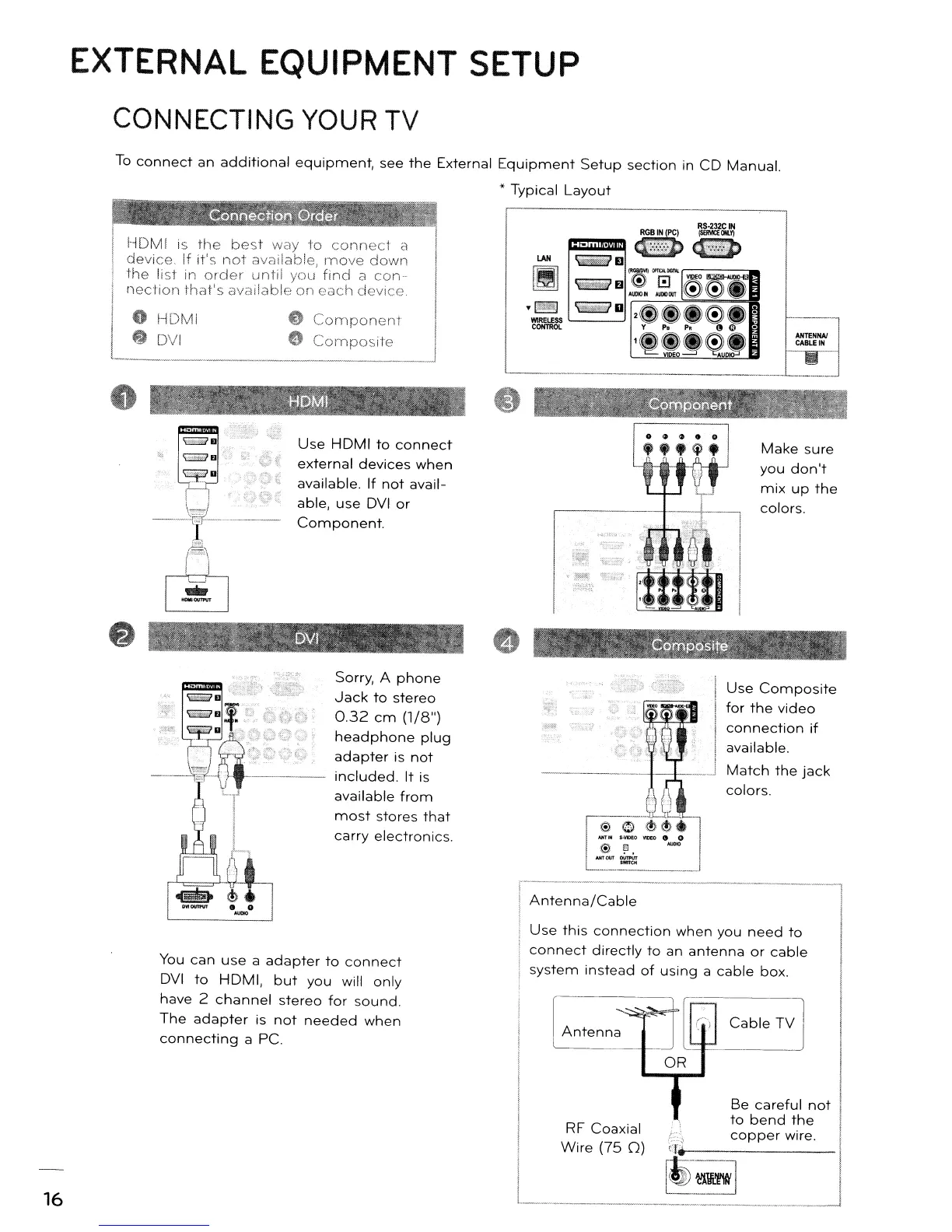

EXTERNAL EQUIPMENT SETUP
CONNECTING YOUR TV
To connect an additional equipment, see the External Equipment Setup section in CD Manual.
* Typical Layout
AHTE~NAI
CABLE IN
• Component
e Composite
• HDMI
• DVI
HDMI is the best way to connect a
device. If it's not available, move down
the list in order until you find a con-
nection that's available on each device .
~ - - - - -~-
Connection Order
HDMI
Component
Use HDMI to connect
external devices when
available. If not avail-
able, use DVI or
Component.
Make sure
you don't
mix up the
colors.
Composite
Antenna/Cable
Cable TV
Use Composite
for the video
connection if
available.
Match the jack
colors.
Antenna
Use this connection when you need to
connect directly to an antenna or cable
system instead of using a cable box.
Sorry, A phone
Jack to stereo
0.32 cm (1/8")
headphone plug
adapter is not
included. It is
available from
most stores that
carry electronics.
You can use a adapter to connect
DVI to HDMI, but you will only
have 2 channel stereo for sound.
The adapter is not needed when
connecting a Pc.
OR
RF Coaxial
Wire (75 0)
Be careful not
; . to bend the
j:~~ copper wire.
tli
16

LG 55LD650 Specifications

General

Audio system	Infinite Sound
RMS rated power	20 W
Number of speakers	2
Integrated clock	No
Power requirements	100V - 240V, 50 - 60Hz
Response time	2 ms
Display diagonal	55 \
Native aspect ratio	16:9
Contrast ratio (dynamic)	200000:1
SCART ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio optical out	1
Product color	Black
Panel mounting interface	400 x 400 mm
Smart modes	Cinema, Game
Power consumption (standby)	0.3 W
Power consumption (typical)	340 W

Weight and Dimensions

Depth (with stand)	330 mm
Width (with stand)	1329 mm
Height (with stand)	872 mm
Weight (with stand)	33000 g
Depth (without stand)	96.5 mm
Height (without stand)	796 mm
