LG 55LD650 User Manual

47

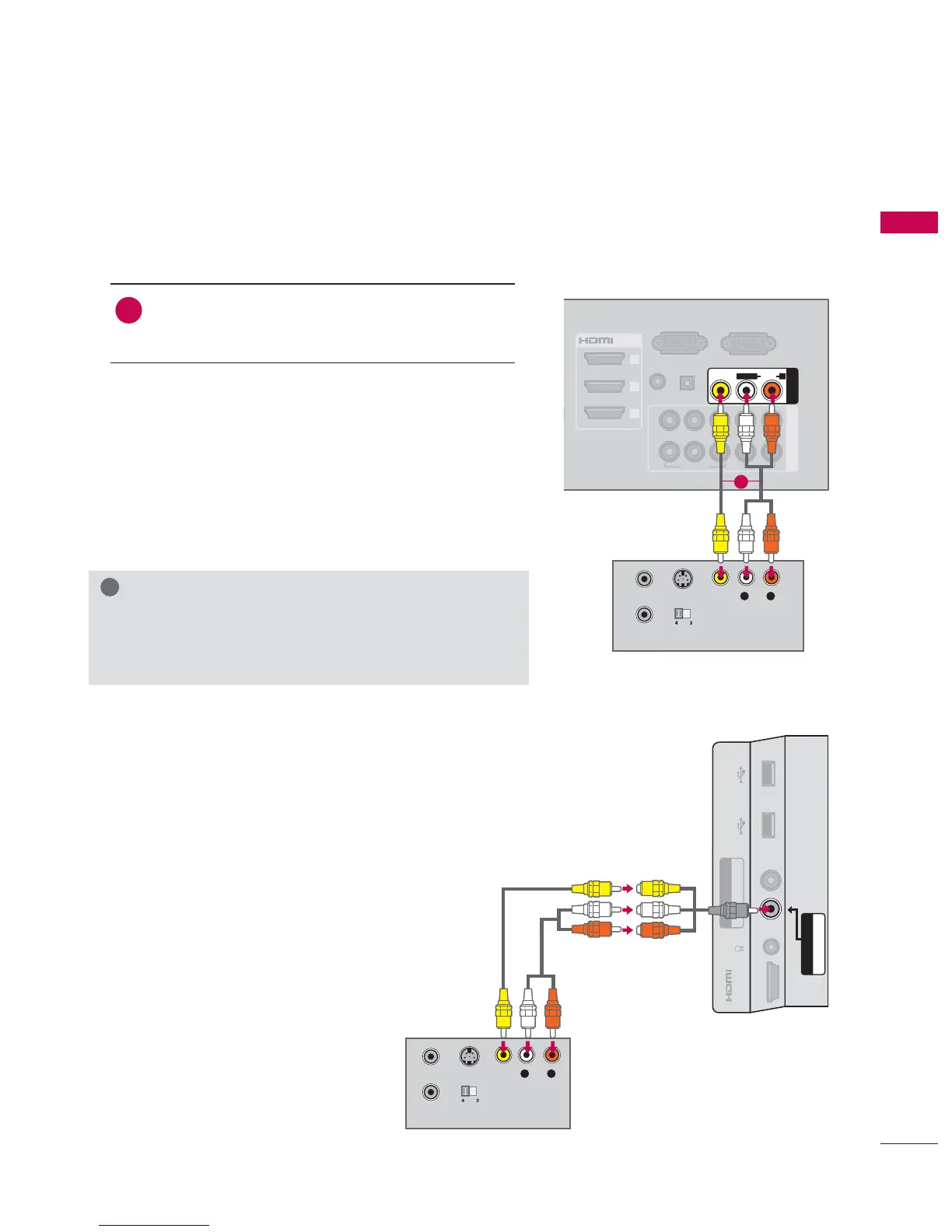

EXTERNAL EQUIPMENT SETUP
L
ESS
T
ROL
(RGB/DVI)
/DVI IN
2
3
1
VIDEO AUDIO
L(MONO)
R
VIDEO
AUDIO
COMPONENT INAV IN 1
AUDIO IN
2
1
AUDIO OUT
Y B P R
L R
OPTICAL DIG TAL
( )
AUDIO OUT CONNECTION
Send the TV’s audio to external audio equipment via the Audio Output port.
If you want to enjoy digital broadcasting through 5.1-channel speakers, connect the OPTICAL DIGITAL
AUDIO OUT terminal on the back of TV to a Home Theater (or amp).
!
NOTE
 When connecting with external audio equipment, such
as amplifiers or speakers, you can turn the TV speakers
off in the menu. (
p.150)
CAUTION
 Do not look into the optical output port. Looking at
the laser beam may damage your vision.
 Audio with ACP (Audio Copy Protection) function may
block digital audio output
.

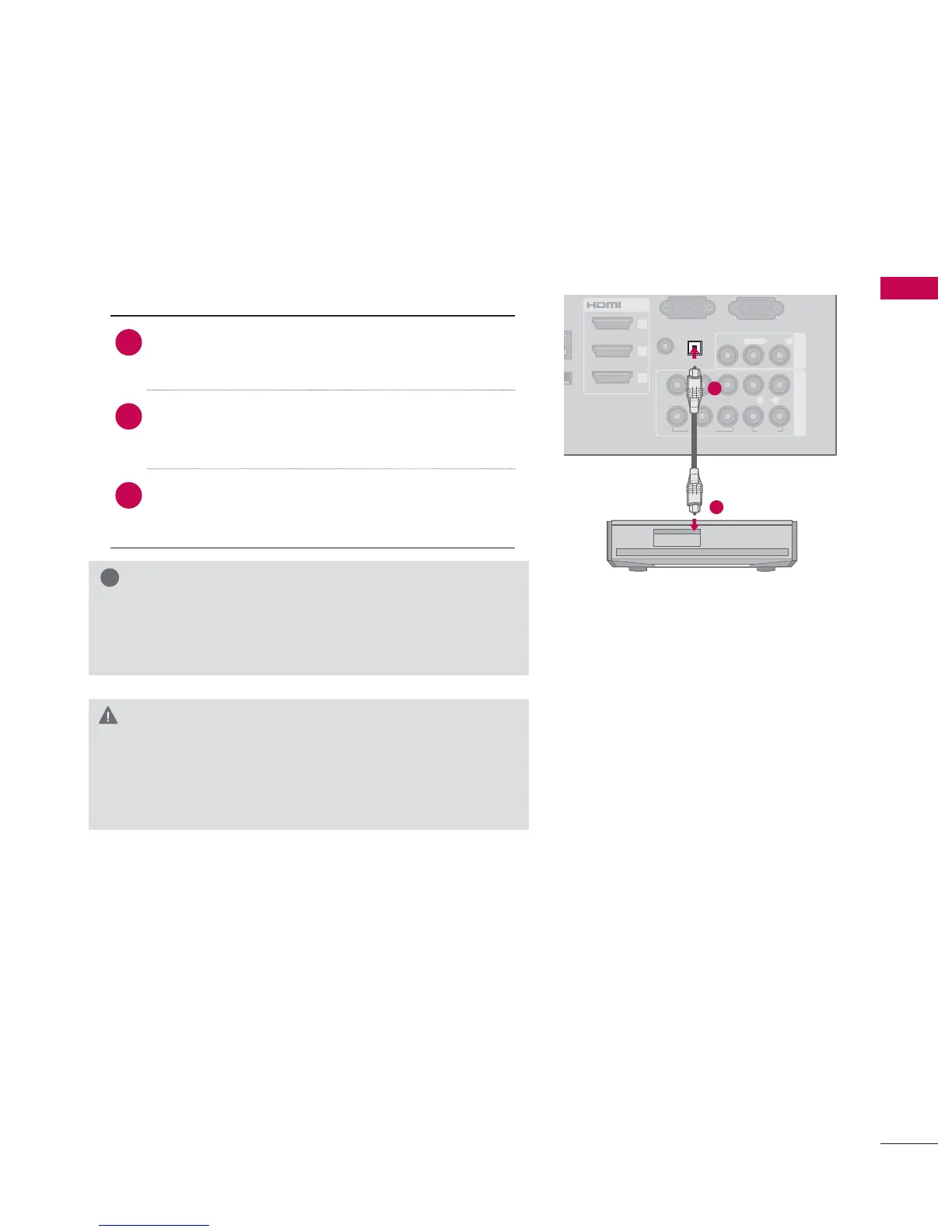

1. How to connect
1
Connect one end of the optical cable to the
TV port of OPTICAL DIGITAL AUDIO OUT.
2
Connect the other end of the optical cable to
the digital audio input on the audio equip-
ment.
3
Set the “TV Speaker option - Off” in the
AUDIO menu. (
p.150). See the external audio
equipment instruction manual for operation.
1
2

LG 55LD650 Specifications

General

Audio system	Infinite Sound
RMS rated power	20 W
Number of speakers	2
Integrated clock	No
Power requirements	100V - 240V, 50 - 60Hz
Response time	2 ms
Display diagonal	55 \
Native aspect ratio	16:9
Contrast ratio (dynamic)	200000:1
SCART ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio optical out	1
Product color	Black
Panel mounting interface	400 x 400 mm
Smart modes	Cinema, Game
Power consumption (standby)	0.3 W
Power consumption (typical)	340 W

Weight and Dimensions

Depth (with stand)	330 mm
Width (with stand)	1329 mm
Height (with stand)	872 mm
Weight (with stand)	33000 g
Depth (without stand)	96.5 mm
Height (without stand)	796 mm
