LG 55LD650 User Manual

37
EXTERNAL EQUIPMENT SETUP

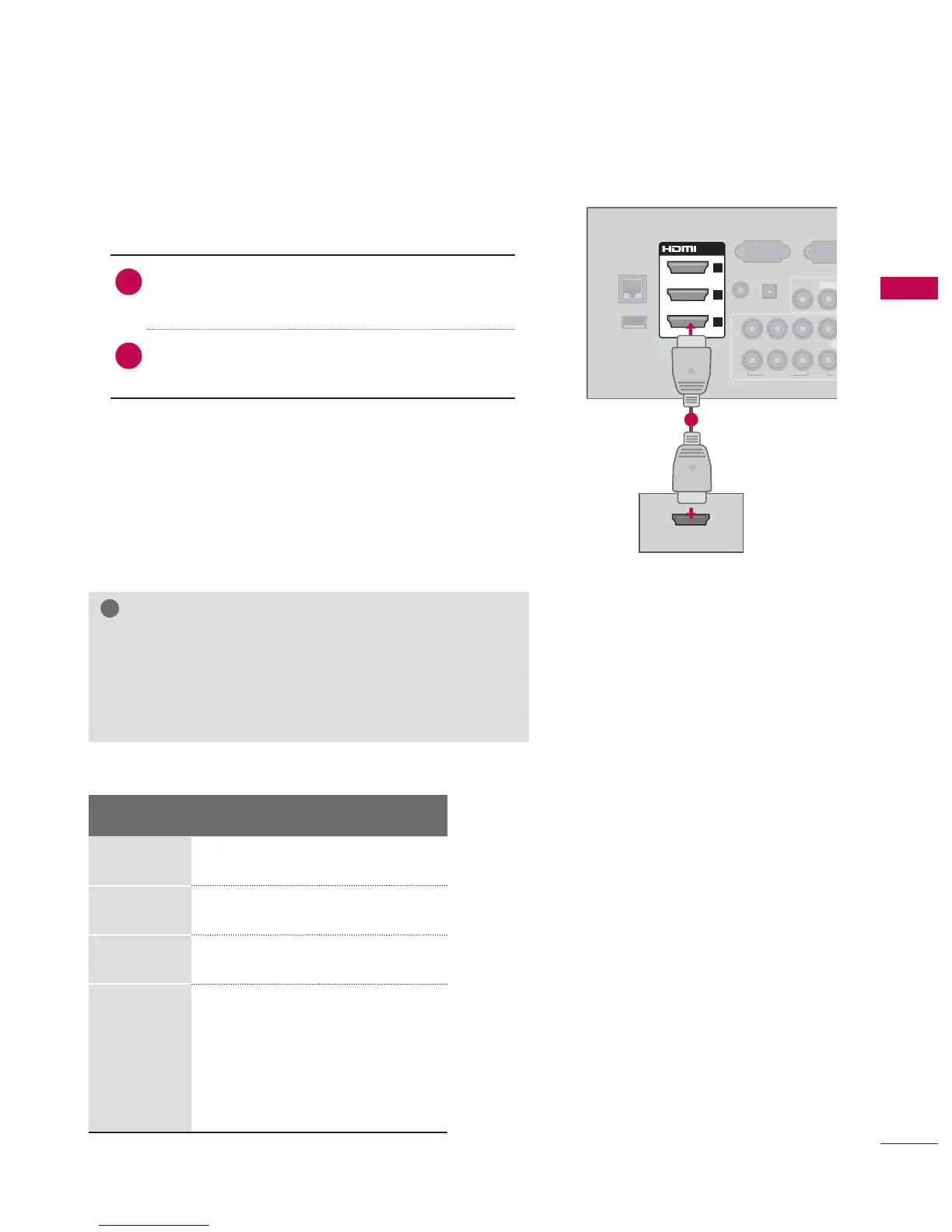

HDMI Connection
1. How to connect
1
Connect the digital set-top box to HDMI/DVI IN
1, 2, 3, or 4 jack on the TV.
2
No separate audio connection is necessary.
HDMI supports both audio and video.
2. How to use
ᯫ
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-
top box.
)
ᯫ
Select the HDMI1, HDMI2, HDMI3, or HDMI4 input
source on the TV using the INPUT
button on the
remote control.
!
NOTE
 If an HDMI cable doesn’t support HDMI version 1.3, it
can cause flickers or no screen display. In this case
use the latest cables that support HDMI version 1.3.
 HDMI Audio Supported Format: Dolby Digital (32 KHz, 44.1
KHz, 48 KHz), Linear PCM (32 KHz, 44.1 KHz, 48 KHz)
HDMI-DTV
Resolution
Horizontal
Frequency
(
KHz
)
Vertical
Frequency
(
Hz
)
720x480p
3
1.47 59.94
31.50 60.00
1280x720p
44.96 59.94
45.00 60.00
1920x1080i
33.72 59.94
33.75 60.00
1920x1080p
26.97 23.976
27.00 24.00
33.71 29.97
33.75 30.00
67.432 59.94
67.50 60.00
HDMI OUTPUT
RGB IN (PC)
LAN
WIRELESS
CONTROL
(RGB/DVI)
VIDEO
L(MONO
VIDEO
A
AUDIO N AUD O OUT
2
1
/DVI IN
2
3
1
YP B P R
L
OPTICAL DIGITAL
RS-23
2
( SERVICE
ꔡ
1

LG 55LD650 Specifications

General

Audio system	Infinite Sound
RMS rated power	20 W
Number of speakers	2
Integrated clock	No
Power requirements	100V - 240V, 50 - 60Hz
Response time	2 ms
Display diagonal	55 \
Native aspect ratio	16:9
Contrast ratio (dynamic)	200000:1
SCART ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio optical out	1
Product color	Black
Panel mounting interface	400 x 400 mm
Smart modes	Cinema, Game
Power consumption (standby)	0.3 W
Power consumption (typical)	340 W

Weight and Dimensions

Depth (with stand)	330 mm
Width (with stand)	1329 mm
Height (with stand)	872 mm
Weight (with stand)	33000 g
Depth (without stand)	96.5 mm
Height (without stand)	796 mm
