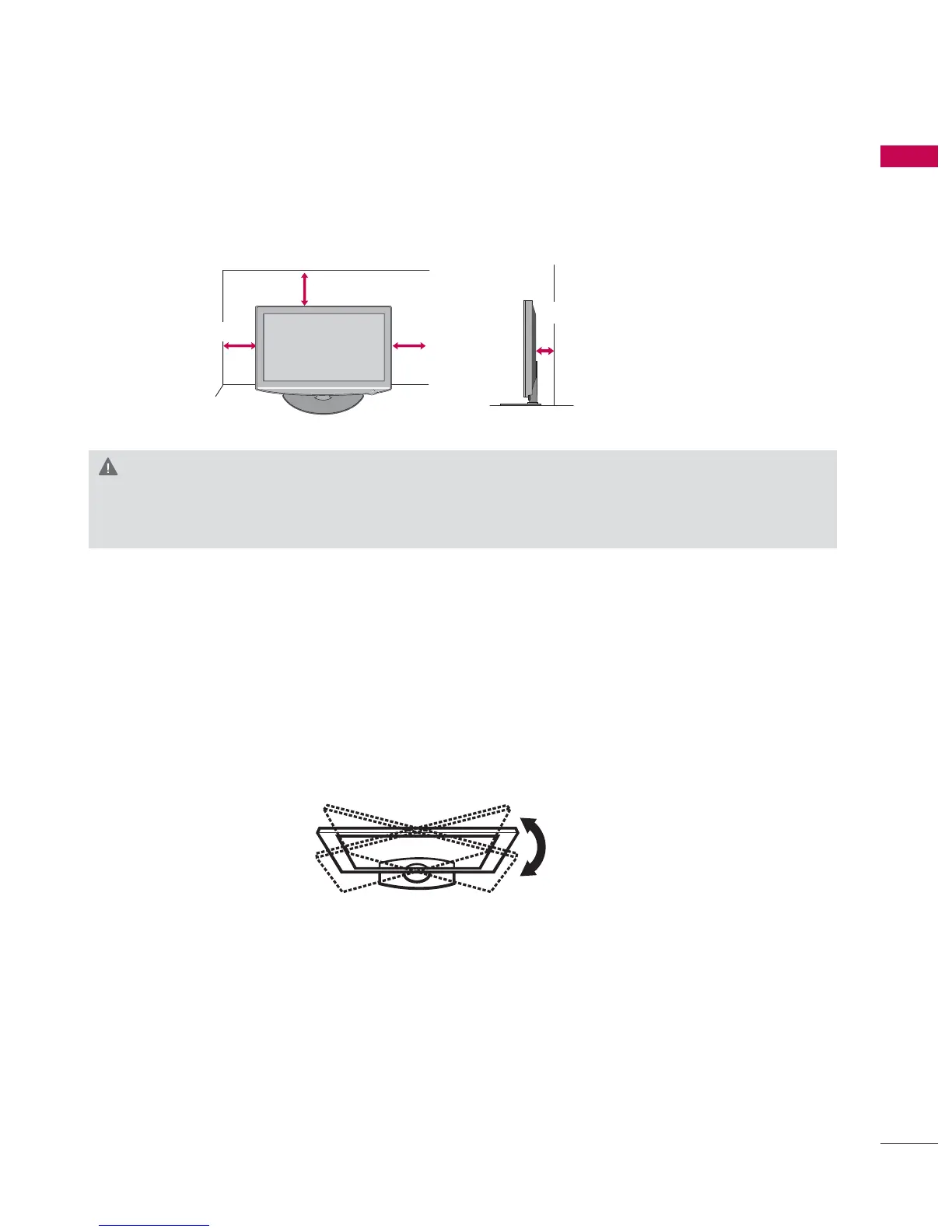

LG 55LD650 User Manual

35
EXTERNAL EQUIPMENT SETUP
HD RECEIVER SETUP
ᯫ
To prevent the equipment damage, never plug in any power cords until you have finished connecting all
equipment.
ᯫ
I mage shown may differ from your TV.

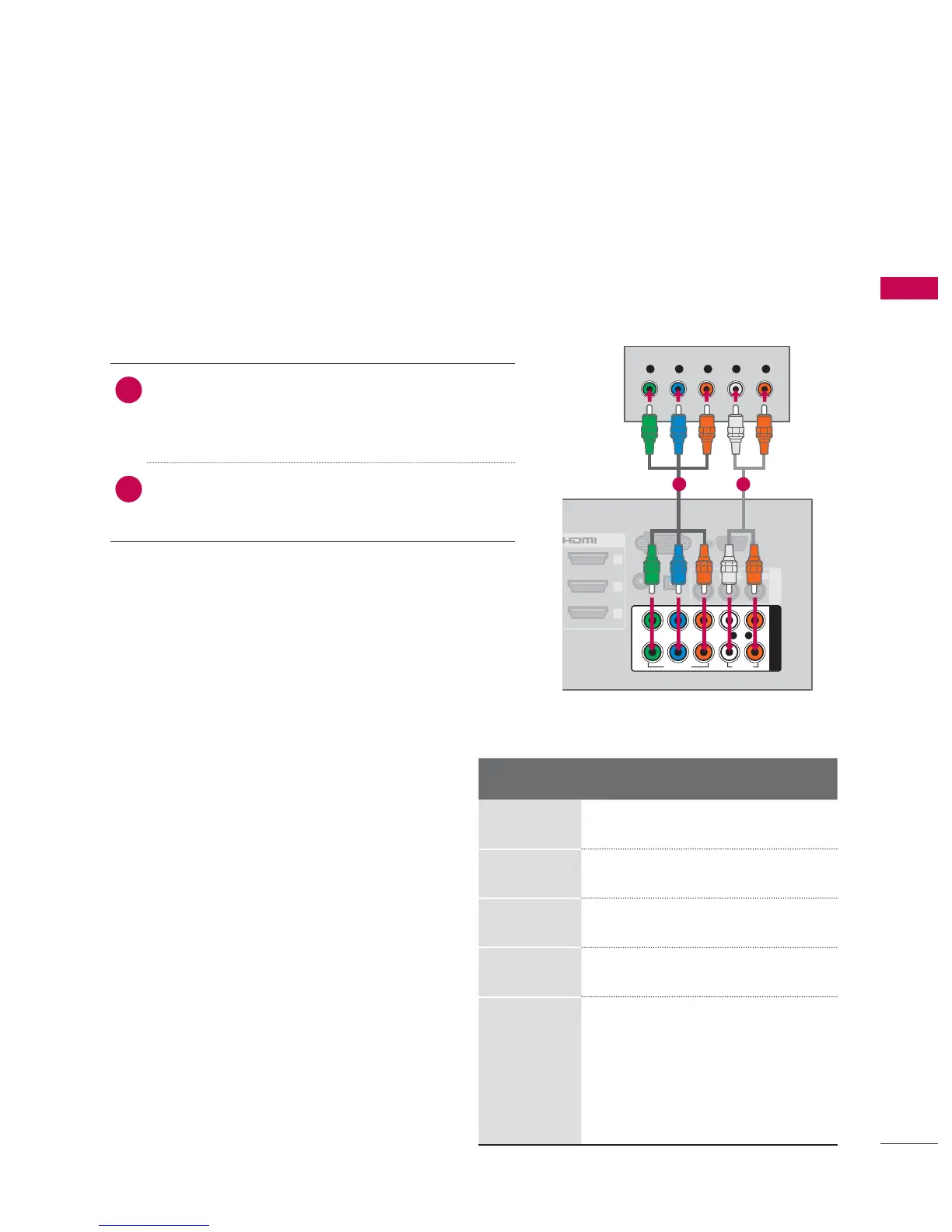

1. How to connect
1
Connect the video outputs
(
Y, P B, PR
)
of the
digital set-top box to the COMPONENT IN
VIDEO 1, 2, or 3* jacks on the TV. Match the
jack colors (Y = green, P
B = blue, and PR = red).
2
Connect the audio output of the digital set-top
box to the COMPONENT IN AUDIO 1, 2, or 3*
jacks on the TV.
2. How to use
ᯫ
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-
top box operation.
)
ᯫ
Select the Component1, Component2, or
Component3 input source on the TV using the
INPUT button on the remote control.
Component Connection
This TV can receive digital over-the-air/digital cable signals without an external digital set-top box.
However, if you do receive digital signals from a digital set-top box or other digital external device.
EXTERNAL EQUIPMENT SETUP
RGB IN (PC)
(RGB
RS-232C IN
( SERVICE ONLY)
OPT
DIG
/DVI IN
2
3
1
O A
L)
R
AV IN 1
AUDIO IN AUDIO OUT
VIDEO
AUDIO
COMPONENT IN
P B P R
L R
2
1
Y L RP B P R
1 2
Y, C B/PB, CR/PR
Resolution
Horizontal
Frequency
(
KHz
)
Vertical
Frequency
(
Hz
)
720x480i
15.
73 59.94
15.73 60.00
720x480p
31.47 59.94
31.50 60.00
1280x720p
44.96 59.94
45.00 60.00
1920x1080i
33.72 59.94
33.75 60.00
1920x1080p
26.97 23.976
27.00 24.00
33.71 29.97
33.75 30.00
67.432 59.94
67.50 60.00
* Component3: For LED LCD TV

LG 55LD650 Specifications

General

Audio system	Infinite Sound
RMS rated power	20 W
Number of speakers	2
Integrated clock	No
Power requirements	100V - 240V, 50 - 60Hz
Response time	2 ms
Display diagonal	55 \
Native aspect ratio	16:9
Contrast ratio (dynamic)	200000:1
SCART ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio optical out	1
Product color	Black
Panel mounting interface	400 x 400 mm
Smart modes	Cinema, Game
Power consumption (standby)	0.3 W
Power consumption (typical)	340 W

Weight and Dimensions

Depth (with stand)	330 mm
Width (with stand)	1329 mm
Height (with stand)	872 mm
Weight (with stand)	33000 g
Depth (without stand)	96.5 mm
Height (without stand)	796 mm
