LG RC897T - Connections to Your TV (S-Video)

12
Connections to your TV (S-V
Connections to your TV (S-V
ideo)
ideo)

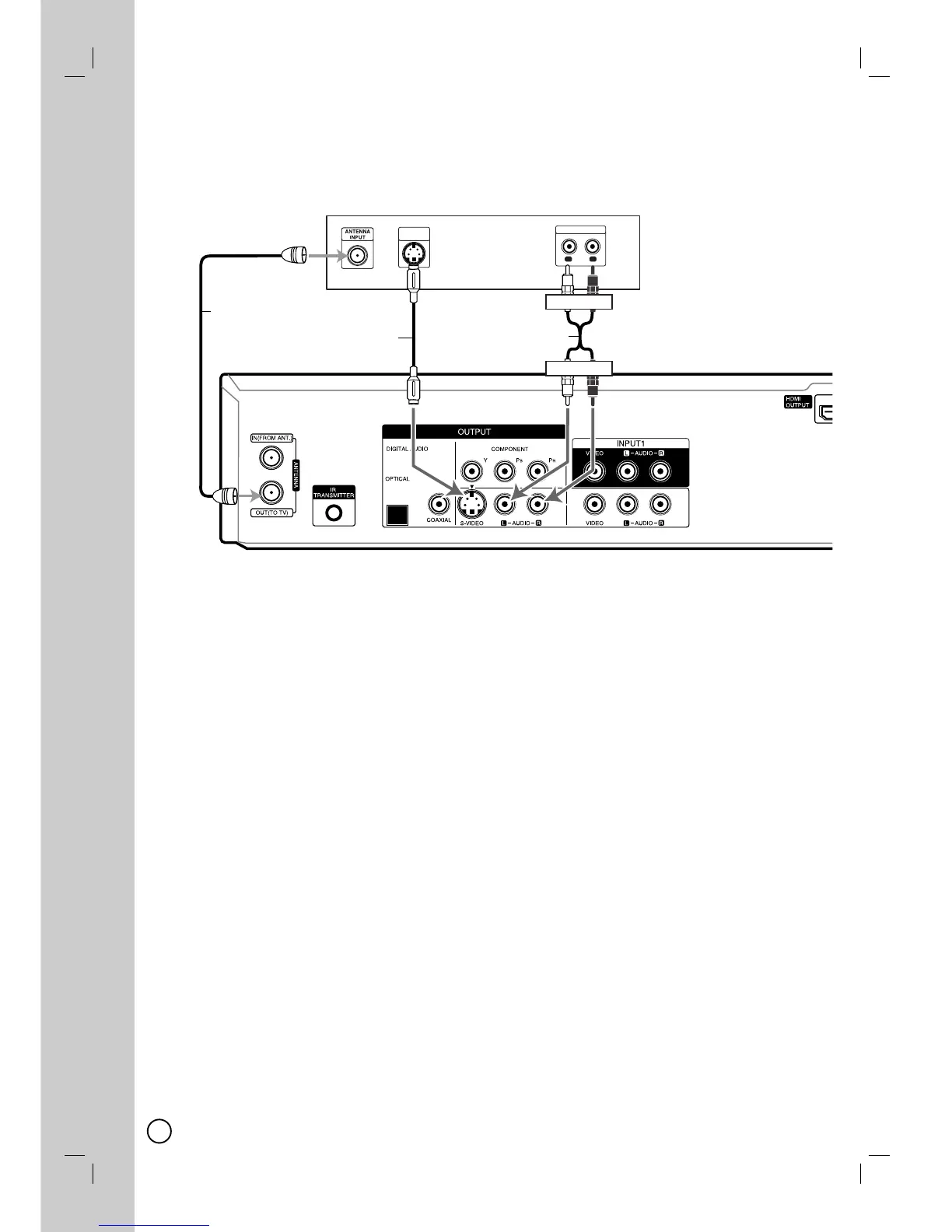

Make one of the following connections, depending on the capabilities of your TV.
RF coaxial connection
Connect the ANTENNA OUT jack on the Recorder to the antenna in jack on the TV using the supplied 75-ohm
Coaxial Cable (R).
S-Video connection
Connect the S-VIDEO OUTPUT jack on the Recorder to the S-Video in jack on the TV using the optional
S-Video cable (S).
Audio connection
Connect the Left and Right AUDIO OUTPUT jacks on the Recorder to the audio left/right in jacks on the TV using
the supplied audio cables (A2).
Rear of Recorder
Rear of TV
L
R
AUDIO INPUT
S-VIDEO 
INPUT
S
A2
White Red
White Red
R
