a
11 //
I (POWER)
Switches the Recorder ON and OFF.
b Disc Tray (DVD deck)
Insert a disc here.
c Z DVD
Opens or closes the disc tray.
d Display window
Shows the current status of the Recorder.
Lights when a disc is in the DVD deck.
The DVD deck is selected.
Lights when the Recorder is in playing
mode or flashes when search mode.
The VCR deck is selected.
Indicates when the recorder is in timer
recording or a timer recording is
programmed.
AVideo tape is inserted in the VCR
deck.
The Recorder is recording.
Indicates PM time. (AM is not displayed.)
e Remote Sensor
Point the recorder Remote Control here.
f USB Port
Connect an USB Flash Drive.
g DV IN
Connect the DV output of a digital camcorder.
h AV IN 2 (VIDEO /AUDIO (Left/Right))
Connect the audio/video output of an external
source (Audio system, TV/ Monitor, VCR,
Camcorder, etc.).
i Z VCR
Ejects the tape in the VCR deck.
j N / X (PLAY / PAUSE)
Starts playback.
Pause playback or recording temporarily,
press again to exit pause mode.
k x (STOP)
Stops playback
l z (REC)
Starts recording.
Press repeatedly to set the recording time.
m CH (v/V)
Scans up or down through memorized
channels.
n DUBBING
Press to copy DVD to VCR (or VCR to DVD).
Lights when the Recorder is dubbing.
o DVD/VCR
Toggles control between the DVD deck and the
VCR deck.
p RES.
Sets the output resolution for HDMI and
COMPONENT OUTPUT jacks.
- HDMI: 1080p, 1080i, 720p, 480p, 480i
- COMPONENT: 480p, 480i
q Cassette Compartment (VCR deck)
Insert a video cassette here.

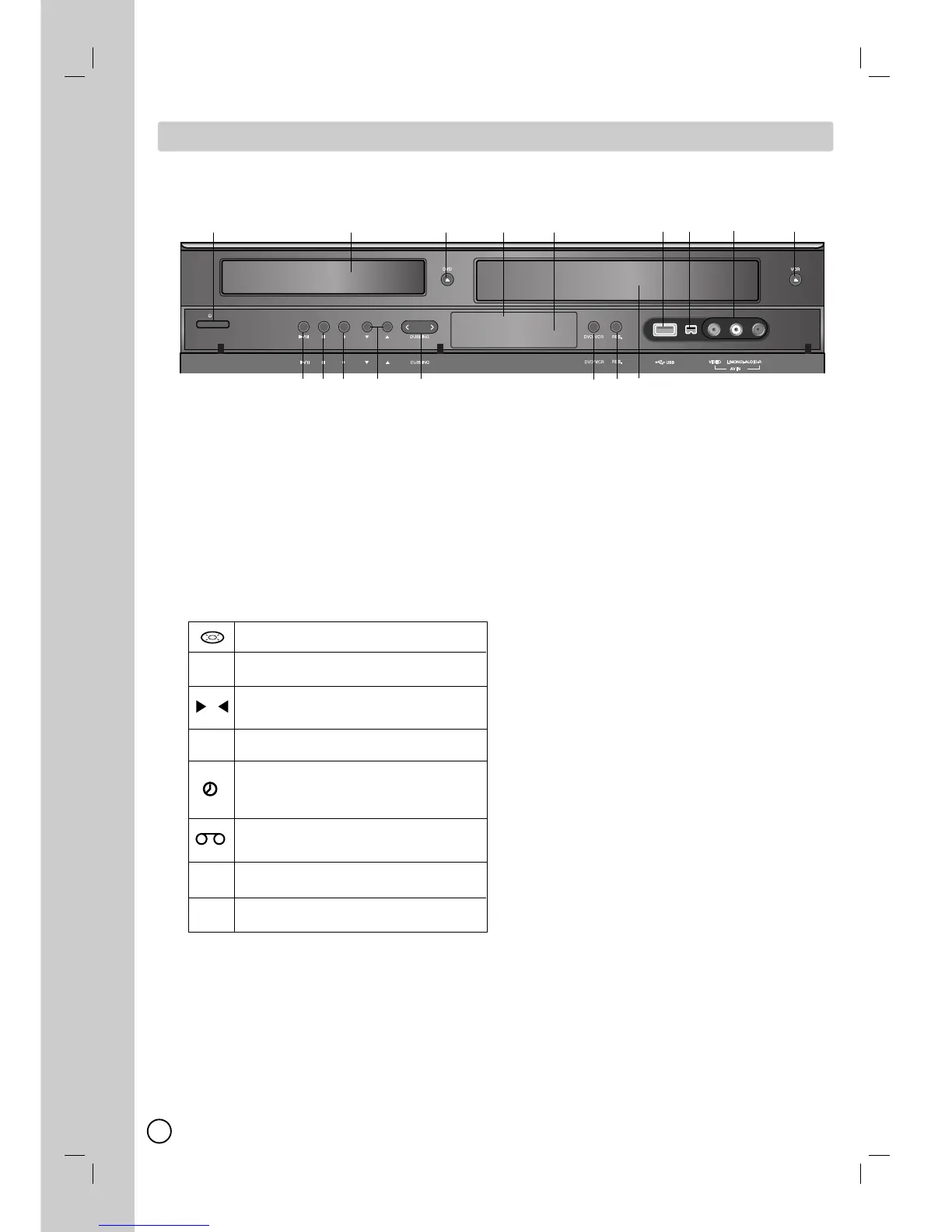

Front Panel
Front Panel
abcdefghi
jkl m n op q
