3. Product Overview DVIDL-OPT series – User's Manual 8
3
Product Overview
output ports and connectors.
ç
ç
ç
ç
ç

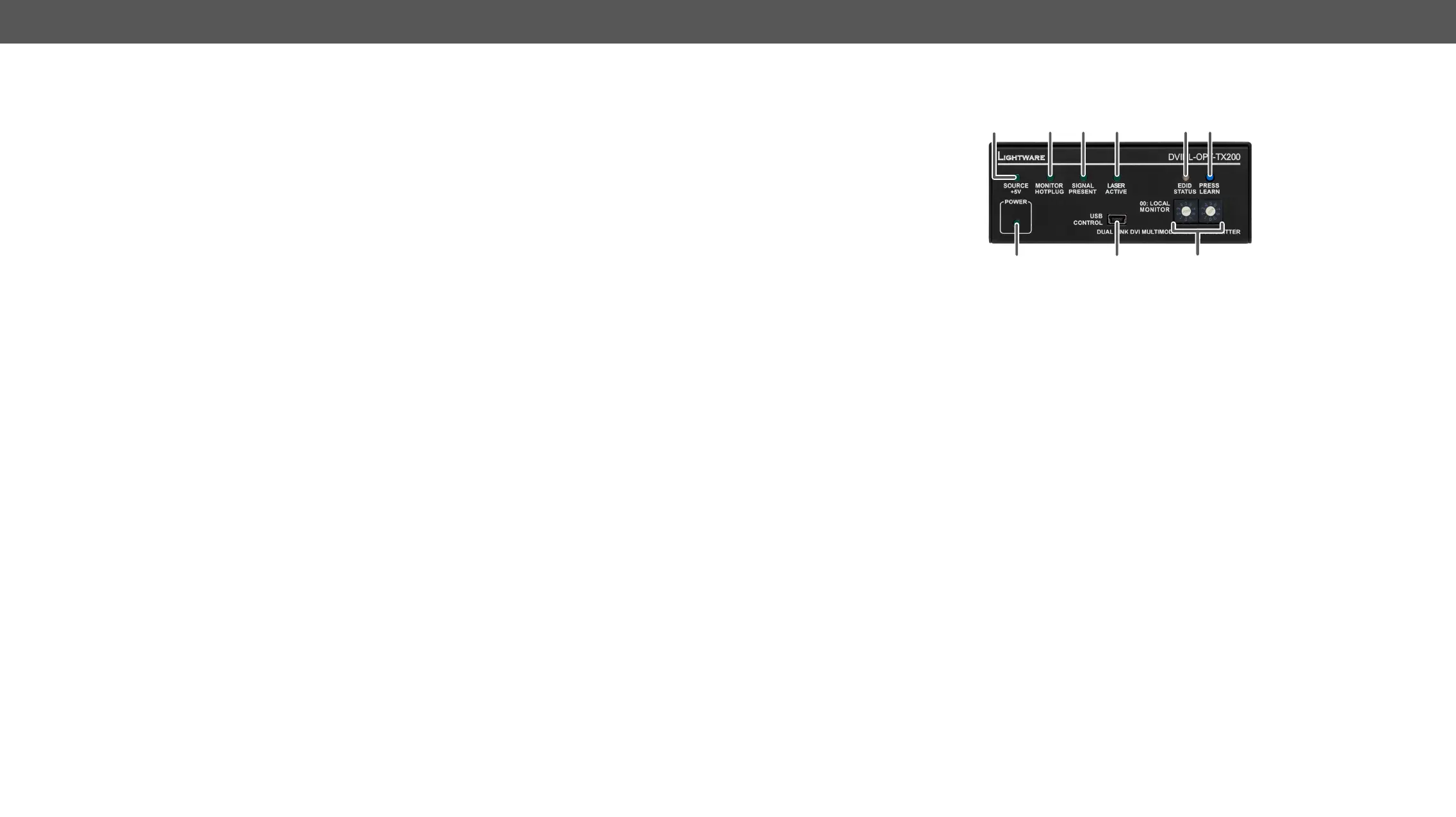

2 3 41 5 6
7 8 9
1
Source +5V LED The LED indicates if a DVI source is connected to the unit, it is powered
on and sends 5V signal to Pin 14 of the input DVI connector.
2
Monitor Hotplug
LED
The LED indicates if a display device (or repeater, etc.) is connected to
the corresponding DVI output and it sends a valid Hot Plug Signal on
Pin 16 through the DVI cable.
3
Signal Present LED Indicates when a valid DVI signal is detected on the DVI INPUT
connector.
4
Laser Active LED Indicates when the laser driver is enabled to help avoid accidentally
looking into the laser beam.
5
EDID Status LED Shows the status of the selected EDID and gives feedback about EDID
learning. See more information in the EDID status LED section.
6
Learn button Stores the EDID of the display device attached to the OUTPUT. See
more information in the Learning EDID section.
7
Power LED Power LED lights green when the unit is powered on. It does not indicate
whether the device is operating properly.
8
USB connector
are available via the USB interface. Use an USB cable with mini-B male
connector.
9
EDID rotary
switches
The rotary switches select one of the EDID memory addresses. Use
keys, coins, knives and other sharp objects because they might cause
permanent damage to the rotary switches. See more information about
EDID change in the Switching EDID section.
