UCX series – User's Manual 59
Protocol Rules
LW3 Tree Structure and Command Structure (examples)
General Rules
▪ All names and parameters are case-sensitive.
▪
▪ The node name can contain the elements of the English alphabet and numbers.
▪ Use the TCP port no. 6107
▪
▪ The node paths describe the exact location of the node, listing each parent node up to the root.
▪
parameters together) can be max. 800 byte.
▪
ç CALL /V1/MEDIA/VIDEO/XP:switch(I1:O2)
æ mO /V1/MEDIA/VIDEO/XP:switch
Command type
Parameters
Command
Response
MEDIA
XP
I1
I2
I3
I4
O1
O2
AUDIO
USB
ETHERNET
EDID
MANAGEMENT
SYS
[...]
Overview
Advanced View

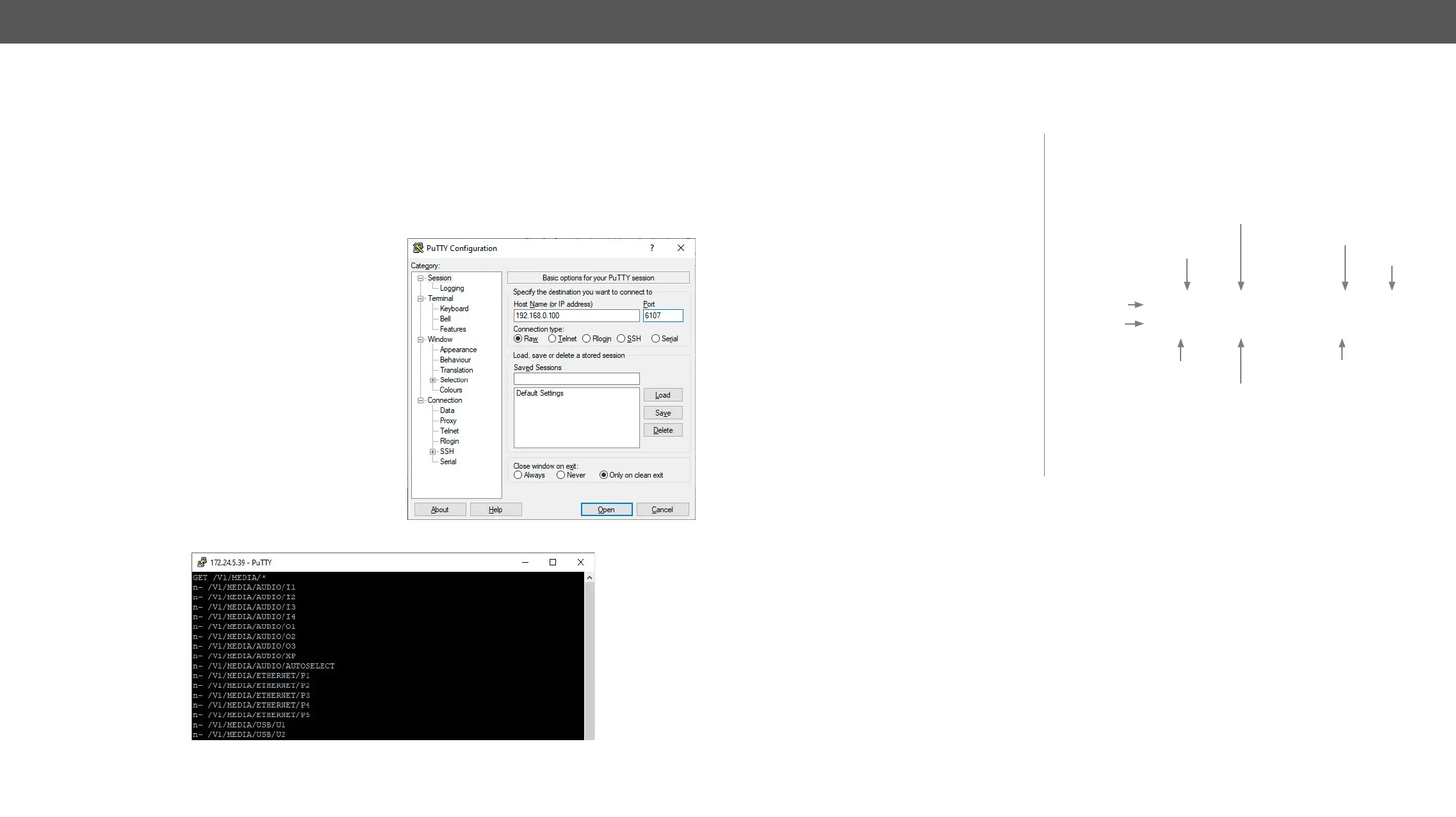

Instructions for the Terminal Application Usage
Terminal Application
switcher using a terminal application. You need to
install one of them to your control device, for example
Putty or CLI. #terminal
Establishing Connection
Follow the steps for establishing connection to the
receiver:
Step 1.
Step 2. Open the terminal application (e.g. Putty).
Step 3. Add the IP address of the device (default:
DHCP) and the port number (6107).
Step 4. Select the Raw connection type, and open the
connection.
Once the terminal window is opened, you can enter
following sections.
LW3 protocol command communication in a terminal window
