Logik L26DVDB20 User Manual

GB-14
Preparation Connections Initial Setup Using the Features EPG (Electronic
Programme Guide)
Hints and Tips, Specification
and Safety Warnings
Using the DVD Features

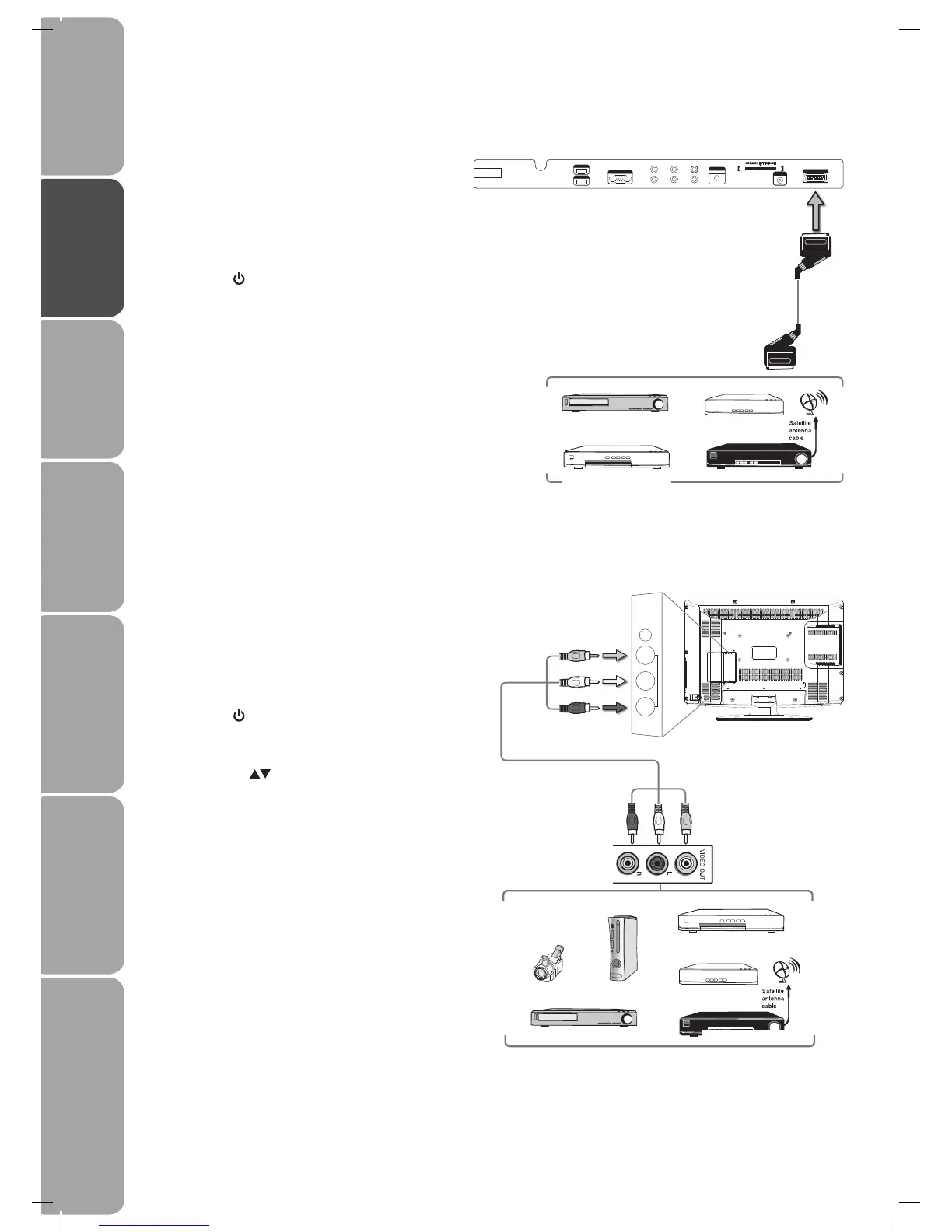

Connecting an AV Device with a Composite Cable
1. Use an AV cable to connect the TV’s AUDIO(L/R)/
VIDEO input sockets to an external AV device’s
composite audio/video sockets. (Video = yellow,
Audio Left = white, and Audio Right = red)
2. Plug the connected devices into the mains socket
before switching on the POWER ON/OFF switch
at the side of the TV.
3. Press the button on the side panel of the TV or
on the remote control to turn on your TV.
4. Press the SOURCE button to display the Source
List. Use the buttons to select AV and then
press the OK button or to confirm.
Connecting an AV Device with a SCART Cable
1. Use a SCART cable to connect the TV’s SCART input
socket to an external AV device’s SCART output
socket.
2. Plug the connected devices into the mains socket
before switching on the POWER ON/OFF switch at
the side of the TV.
3. Press the button on the side panel of the TV or on
the remote control to turn on your TV.
4. The TV will change the input source to SCART
automatically once the AV device is switched on.
Rear View of TV
SCART Cable
(not included)
Satellite Receiver
VCR
DVD Player / Recorder
Set-top Box
Side View of TV
VGA INPUT
Y Pb Pr
L R SPD IF
AUD IO
VGA INPUT
SCART
HDM I 1
HDM I 2
ANT
100 -240V ~ 50/6 0Hz
AC- INPUT
COM MON I NTERF ACE
CARD FACE FRON T
Satellite Receiver
Video Camera
VCR
DVD Player / Recorder
Set-top Box
Game Console
Yellow (VIDEO)
Red (R)
White (L)
Yellow (VIDEO)
White (L)
Red (R)
HEADPHONE
Video
AV
L
R
AV Cable
(included)
L26DVDB20_IB_final110210_running change4.indd 14 10/02/2011 3:43 PM

Logik L26DVDB20 Specifications

General

Brand	Logik
Model	L26DVDB20
Category	TV
Language	English
