GB-7
PreparationConnectionsInitial SetupUsing the FeaturesEPG (Electronic
Programme Guide)
Using the DVD FeaturesHints and Tips, Specification
and Safety Warnings
VGA INP UT
Y Pb Pr
L R SPDIF
AUDIO
VGA INPU T
SCART
HDMI 1
HDMI 2
ANT
100-240V~ 5 0/60 Hz
AC-INPUT
CO MMO N I NT E RF A CE
CA RD F AC E F RO NT

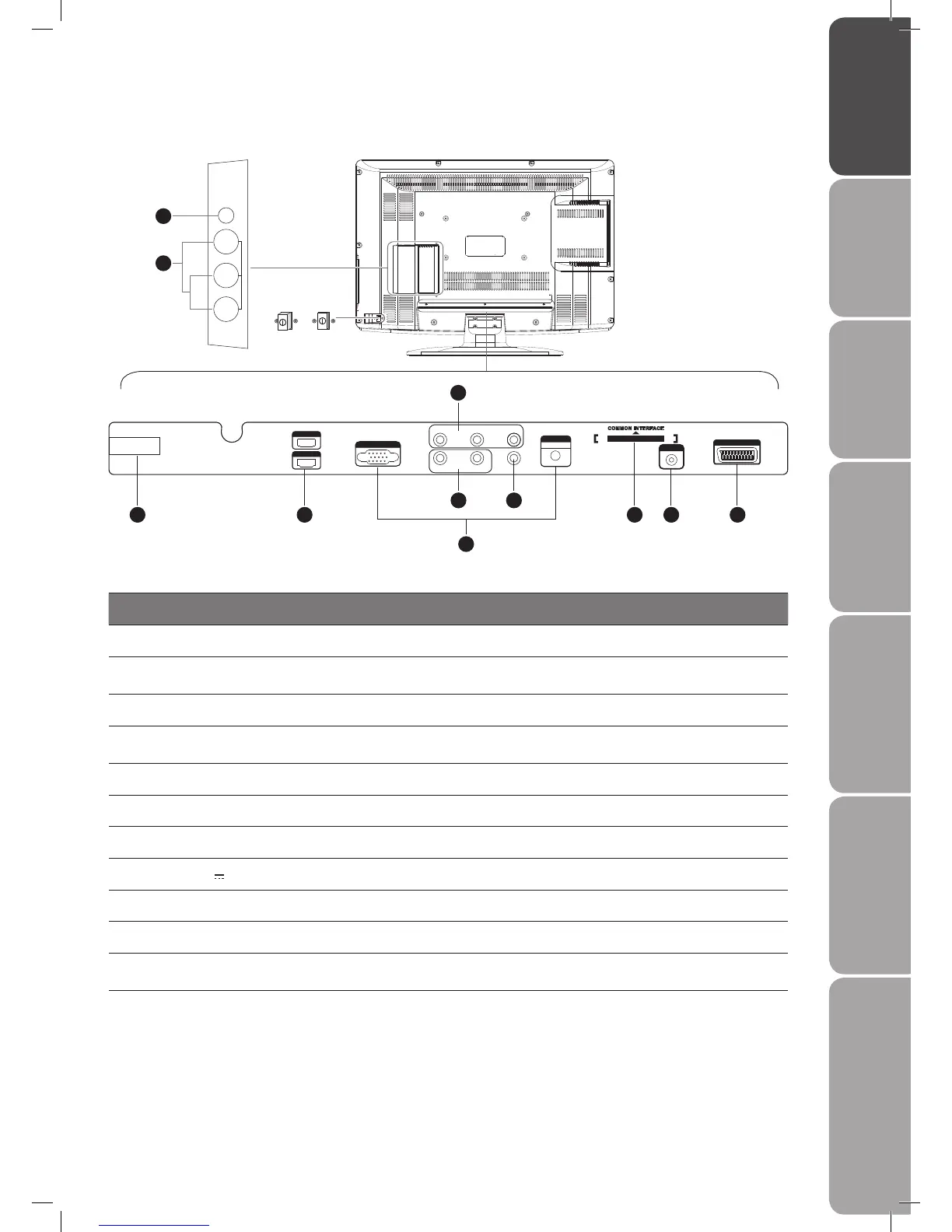

Rear View and Sockets
Item Description
1 AC~INPUT Connects the mains cable to the mains socket.
2 HDMI1 / 2
To connect to a High-Definition (HD) signal output device, such as a set-top box, blu-ray
disc player or AV receiver.
3 VGA INPUT / AUDIO To connect to a computer or other devices with a VGA interface.
4 Y, PB, PR
To connect to a DVD player, Digital Set-Top-Box, or other AV devices with component
(YPbPr) video and audio output sockets.
5 AUDIO (L/R) To connect to the AUDIO (L/R) output sockets on audio devices.
6 SPDIF To connect to the audio socket on a digital / standard 5.1 audio system.
7 COMMON INTERFACE Allows the insertion of a Common Access Module. (Refer to page 22 for details)
8 ANT 75 Ω 5V 50mA/Output To connect to the aerial socket on the wall with the RF coaxial cable.
9 SCART To connect to a VCR, DVD Player, or other AV device with a SCART output socket.
10 HEADPHONE To connect earphones for private listening.
11 VIDEO/AUDIO (L/R)
To connect to the Composite VIDEO and AUDIO (L/R) output sockets on external video
devices.
1 2
3
65
4
87 9
HEADPHONE
Video
AV
L
R
OFF ON
10
11
L26DVDB20_IB_final110210_running change4.indd 7 10/02/2011 3:43 PM
