Lombardini LDW 502 User Manual

- 90 -
FOCS Workshop Manual_cod. 1.5302.351_7° ed_ rev. 06
ASTEA
ASIRPAS
ASCIN
ITACUD
~G53,68,0
RR05,92,1
+B05,92,1
ELL57,45,0
C52,68,0
203
204 205
9

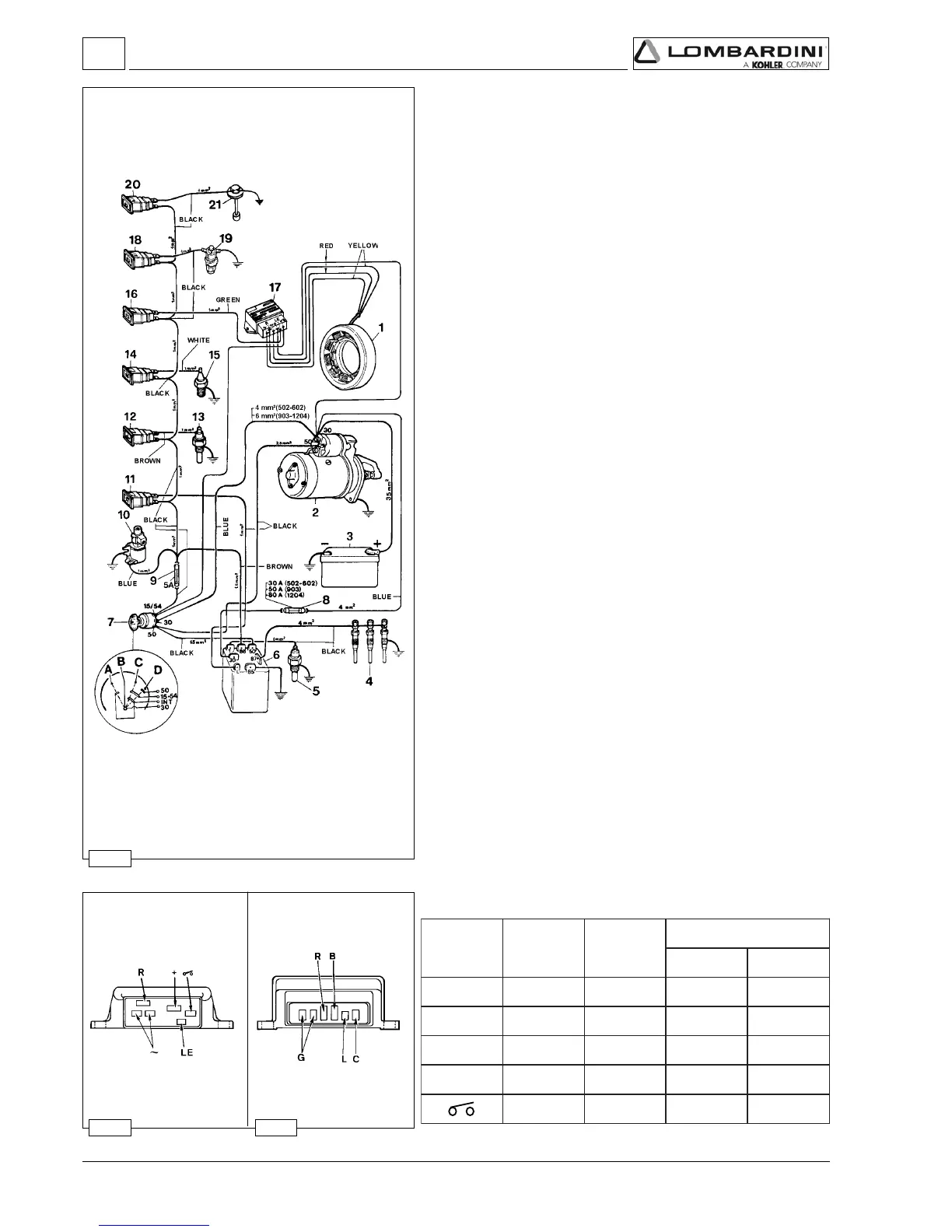

Electric starting layout (12V) with flywheel alternator
1 Alternator
2 Starter Motor
3 Battery
4 Glow Plugs
5 Coolant temperature thermistor
6 Glow Plug Controller / Timer
7 Key Switch
8 System Fuse, 40A
9 Fuse (Accessory)- 5A
10 Fuel Solenoid Valve
11 Glow Plug Indicator Lamp
12 Coolant High Temperature Lamp
13 Coolant High Temperature Switch
14 Oil Pressure (Low) Lamp
15 Oil Pressure Switch
16 Alternator Charging Lamp
17 Voltage regulator
18 Air Filter High Restriction Indicator Lamp
19 Air Filter Restriction Switch
20 Low Fuel Level Lamp
21 Low Fuel Level Switch
A Accessory Position
B Off Position
C On Position
D Starting Position
Note: Battery 3 not supplied by LOMBARDINI.
Cable
colour
Yellow
Red
Red
Green
Brown
Conncetion dimensions
Width Thickness
Voltage regulator connections
Electric System

Lombardini LDW 502 Specifications

General

Engine Type	Diesel, 4-stroke
Number of Cylinders	2
Fuel System	Indirect injection
Starting System	Electric start
Lubrication System	Forced lubrication with gear pump
Bore x Stroke	72 mm x 62 mm
Cooling System	Air-cooled
Displacement	505 cm³ (30.8 cu in)
