LS tractor XR4150 User Manual

3 -39

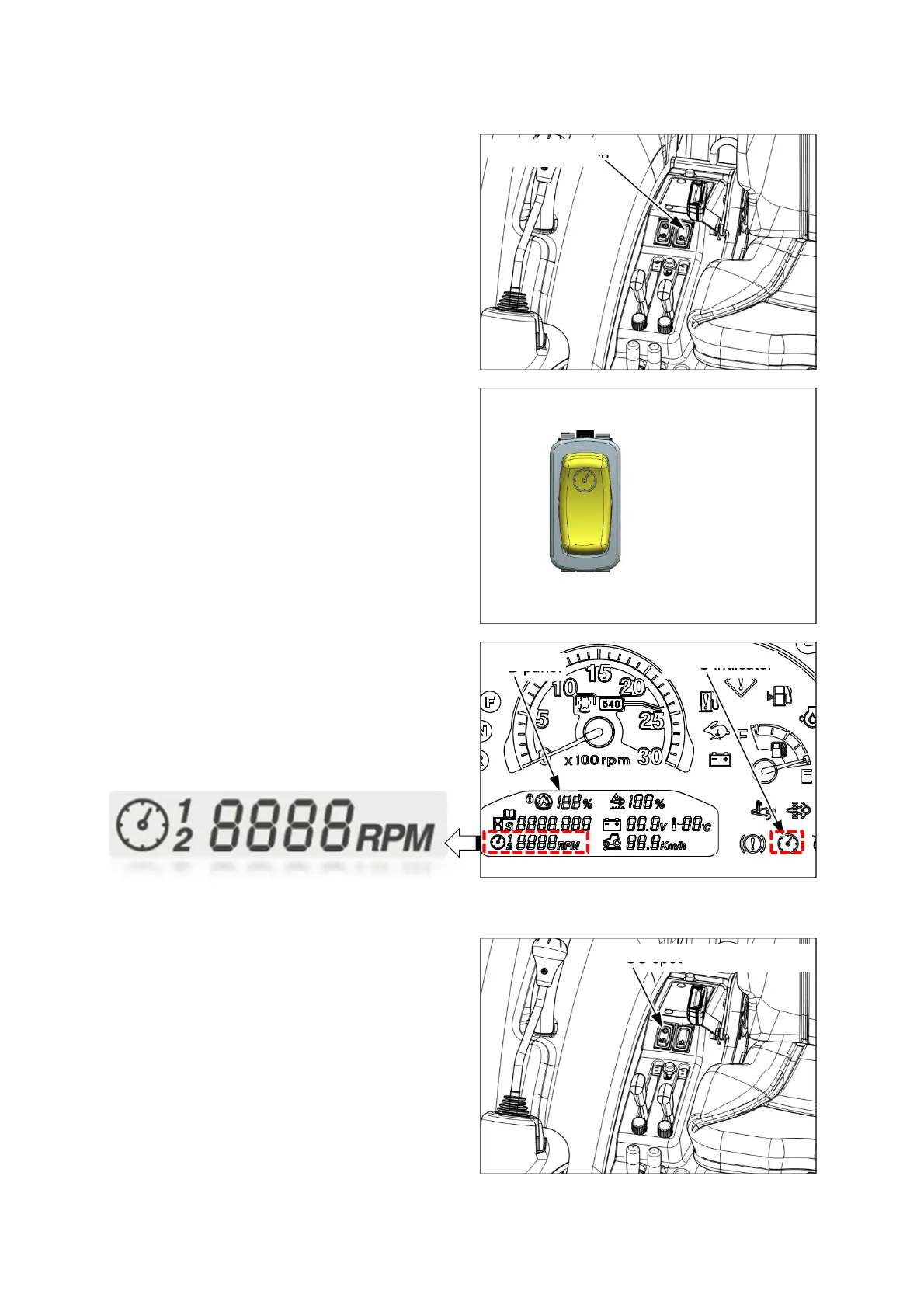

 This switch is used to enable the Engine Speed
Cruise Control(ESC) function.
 If pressing the ESC main switch from position 0
to position 1 (Off –> Ready),
- ESC indicator on the instrument panel will
blink.
- Engine speed stored on ECU will be displayed
on LCD panel.
 If pressing the ESC main switch from position 1
to position 2 (Ready –> Resume),
① (if pressing below 2 second) – ESC
indicator will be ON and engine speed cruise
control (ESC) will begin.
② (if pressing over 2 second) – current engine
speed will be stored on ECU and the stored
engine speed will be displayed on LCD panel.
(5) ESC main switch
ESC main switch
• Position 2 : Resume
• Position 1 : Ready
• Position 0 : Off
ESCC indicator
LCD panel
 This switch is used to adjust the engine speed
for ESC when the ESC is working.
 If pressing the front/rear side of the switch, the
engine speed will be;
- Front side : Increased.
- Rear side : Decreased.
(6) ESC speed up/down switch
ESC speed up/down switch
