(4) Replacing Air cleaner element
(Dry type)
Remove the cover and pull the primary element
straight out, ensuring the safety filter element
remains in place.
Clean the inside of the air cleaner housing using
a clean damp cloth, being careful not to damage
the safety element.
Check if there is damage inside the filter element
by using a light. If finding tiny cracks or small
holes in the filter element or the gasket is
damaged, change it with a new one.
Insert the filter element deeply into the filter housing.
Remove the dust of the evacuator valve and clean the inside of the cover.
Assemble the cover with the evacuator valve facing downwards.
▶ Do not start the engine or close the hood if the filter element is not assembled..
Notice
(3) Replacing Fuel filter cartridge
Loosen drain plug and drain fuel in the filter.
Disconnect electric wire of the fuel filter sensor.
Remove element from the body.
Remove fuel filter sensor from the element and
assemble it to the new element.
Attach new element to the body.
Connect electric wire of the fuel filter sensor.
Tighten the drain plug and bleed the air from the
fuel filter. See chapter 5-14-(1), “Air-bleeding from
fuel system” in this manual.

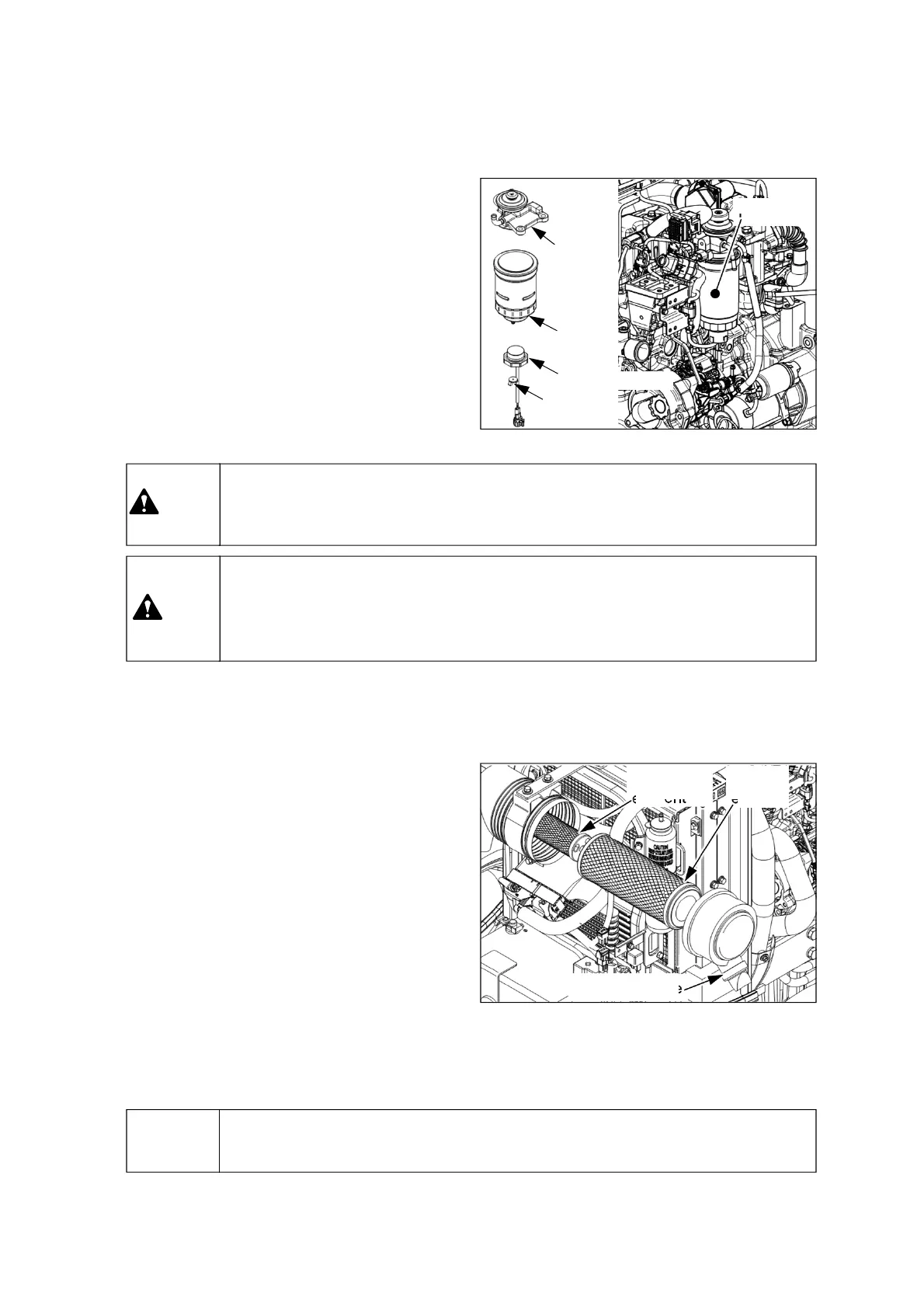

Drain plug
Body
Element
Fuel filter sensor
Fuel filter
Primary
element
Evacuator valve
Safety filter
element
▶ Fuel leaked or spilled onto hot surfaces or electrical components can cause a fire.
To help prevent possible injury, turn the key switch off when changing fuel filters or
water separator elements. Clean up fuel spills immediately.
Warning
▶ Do not allow dirt to enter the fuel system. Thoroughly clean the area around a fuel
system component that will be disconnected. Fit a suitable cover disconnected fuel
system component. Do not fill the new filter with fuel. Invisible fine contaminants
can enter the injection pump and it may cause damage to the fuel injection system.
Caution
