5 -24
▶Do not tap the element on a
hard place when cleaning.
▶If the element is cracked,
change it with new one.
Notice

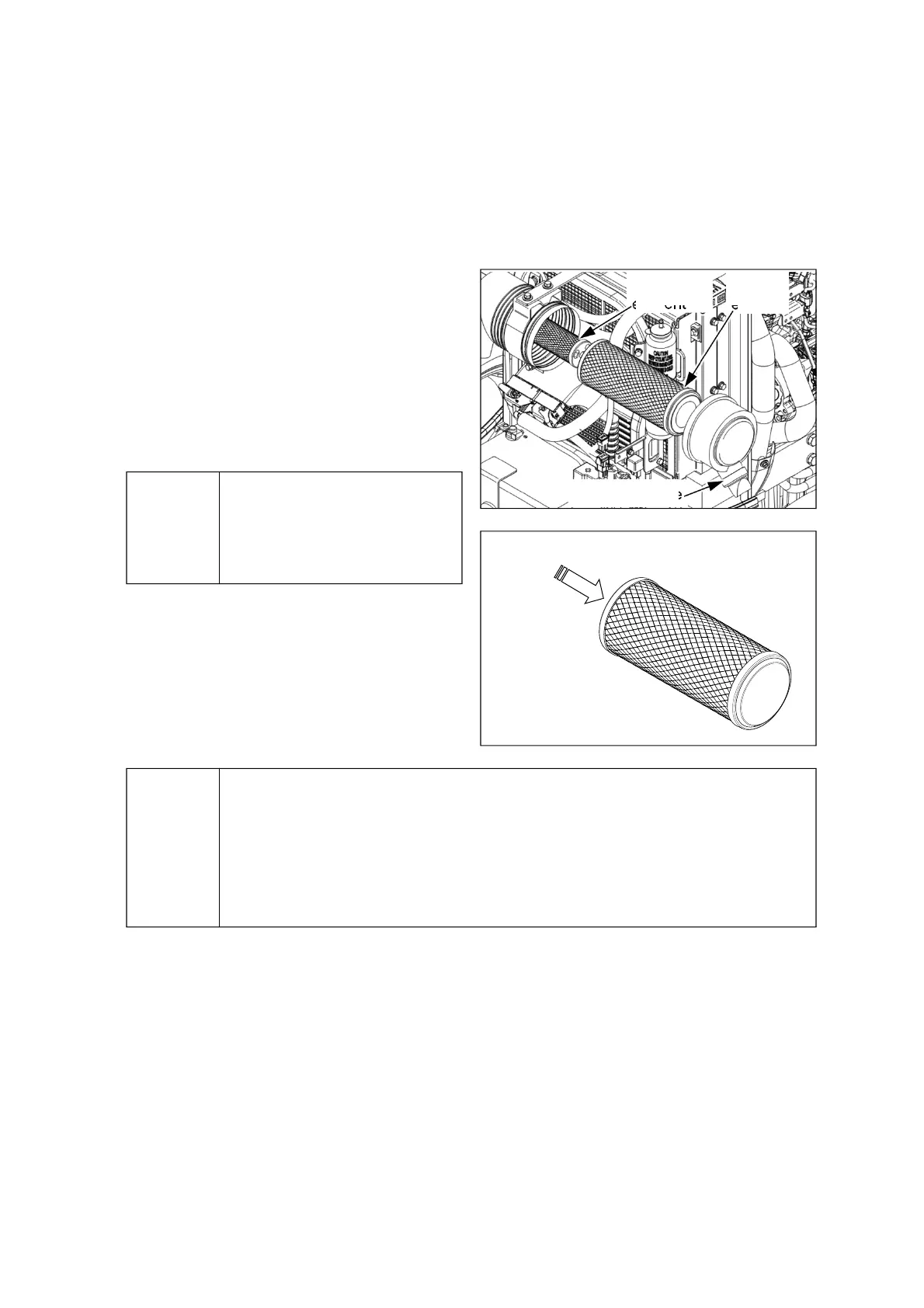

(6) Air cleaner (Dry type)
① Cleaning filter element
Remove the cover and pull the primary element
straight out, ensuring the safety filter element
remains in place.
When cleaning the element in the working field,
tap the element by hand to remove the dust.
Primary
element
Evacuator valve
Safety filter
element
(Pressurized air)
(5) Engine coolant
Before opening the radiator cap, cool down the engine coolant sufficiently.
See chapter 5-12-(1), Replacement of engine coolant” in this manual. (See page 5-41)
If the dust is not removed by tapping, use
compressed air (less than 500kPa (5bar; 72psi))
from inside to outside as shown in the right
figure to remove the dust and dirt. And clean
inside the filter element with a clean damp cloth.
▶ Do not assemble a wet filter element.
▶ Do not dry the wet filter element with compressed air. It may cause damage to the
filter element.
▶ Do not start the engine or close the hood if the filter element is not assembled.
Notice
② Assembling filter element
Clean the inside of the air cleaner housing using a clean damp cloth, being careful not to damage the
safety element.
Check if there is damage inside the filter element by using a light. If there is tiny cracks or small holes
in the filter element or the gasket is damaged, replace it with a new one.
Insert the filter element deeply into the filter housing.
Remove the dust of the evacuator valve and clean the inside of the cover.
Assemble the cover with the evacuator valve facing downwards.
