Internal circulation inlet

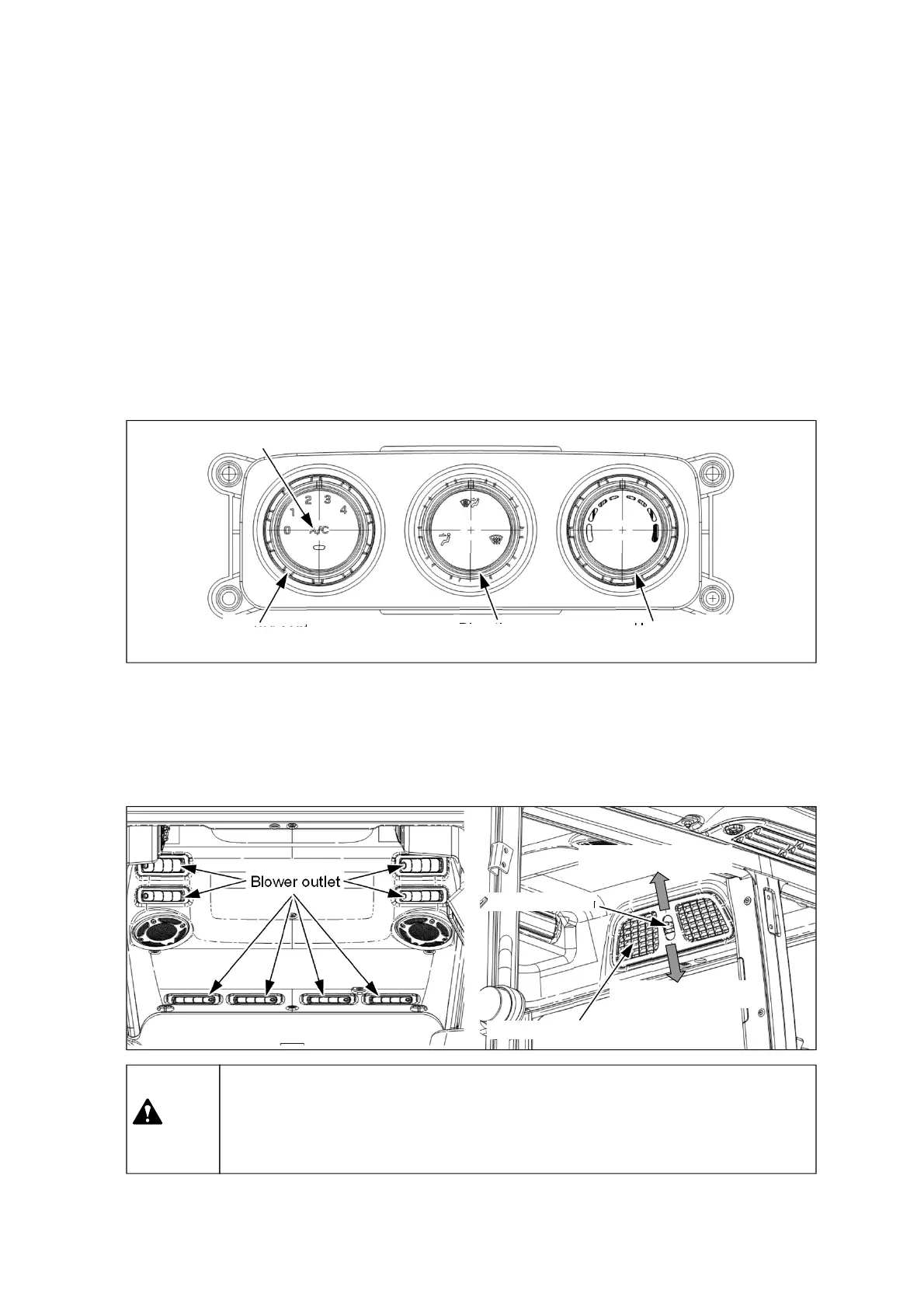

6-2. How to use Air conditioner and Heater
Blower outlet
(2) Air direction control
 To control the air direction, adjust the blade angle of the blower outlets.
 For internal circulation, move the ventilation lever to the internal circulation position.
 When operating the air conditioner or heater, open the blower outlets always.
Ventilation lever
External circulation
Internal circulation
(1) How to operate air conditioner and heater
 Air-conditioner switch and Blower control switch
- It is used to operate the air conditioner. If you push the air-conditioner switch and turn the blower
control switch to 1~4 position, the operation lamp shall be ON and the air conditioner begins to work.
 Direction control switch
- It is used to select the air flow direction – front grille, front & side grille, side grille.
 Heater control switch
- It is used for selecting warm or cool air. Turn the switch clockwise (blue mark) for cool air, and
otherwise, turn it counter-clockwise (red mark).
Blower control
switch
Heater control
switch
Direction control
switch
Air-conditioner switch
Caution
▶Never sleep in the cabin with the air conditioner or heater on. It may cause
suffocation.
▶When operating in the cabin for a long time, ventilate the cabin frequently.
