creating the system
system setup
To set up a RadioRA
® 2 system, components must be added to the
Main Repeater. First, add Auxiliary Repeater(s)*; then add all other
system devices.
adding Auxiliary Repeaters and devices

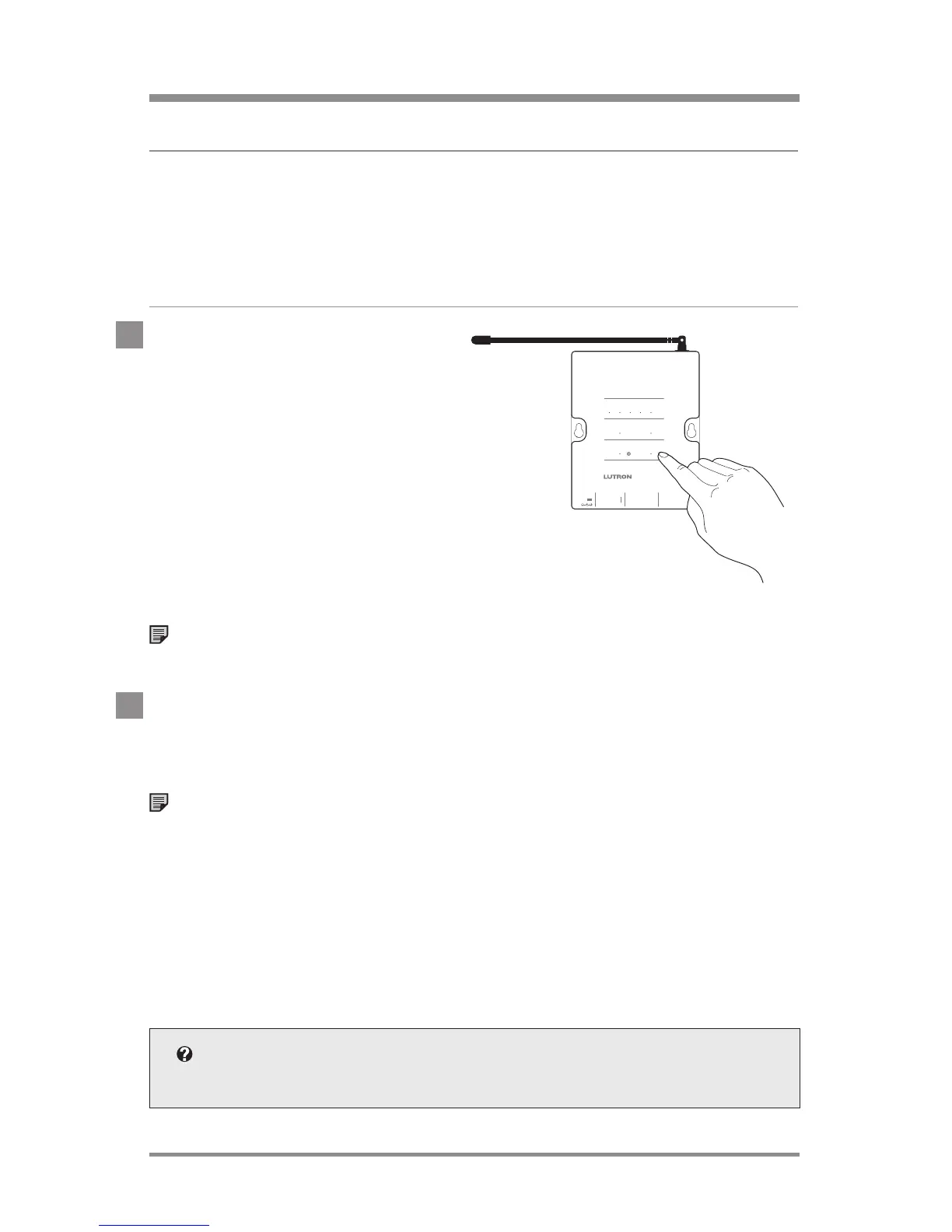

1. Enter Add Mode
Press and hold the Add button
on the Main Repeater for 3seconds
until the green Add LED begins to
rapid-flash (ten times per second) and
the Repeater beeps. Wait 10 seconds.
After the green Add LED begins to
normal-flash (once per second) the
system is in Add Mode and is ready to add new
components.
Note: The first time Add Mode is entered on a Main Repeater, it
will create a new system with a unique system address.
2. Add Auxiliary Repeater(s)*
Press and hold the Add button on an Auxiliary Repeater for
3seconds until the green Add LED begins to rapid-flash.
Note: If the system does NOT require Auxiliary Repeater(s), skip
ahead to step 3.
When an Auxiliary Repeater has been added successfully, the Main
Repeater will beep once and the Add LED on the Auxiliary Repeater
will normal-flash. The Repeater Status LEDs corresponding to the
Auxiliary Repeater that was added will also turn on.
To add another Auxiliary Repeater (4 Auxiliary Repeaters maximum),
repeat step 2.
* Auxiliary Repeater(s) are required when devices extend beyond the range of the Main Repeater
If a device does not respond as described, consult the
troubleshooting section.
Main
Repeater
Setup
Wired
RF
Communication
Repeater Status
1
3
4 2
M
Power
Repeater Link
COM
9 V
1
N / C
MUX
MUX
2
3
4
AddTest
USB
Integrate Program / Integrate
RS232
Ethernet
Main Repeater
