1. SPECIFICATIONS
Model ML120
Front End Loader
For Use with
Models
3 Cylinder 35 Series
Tractors

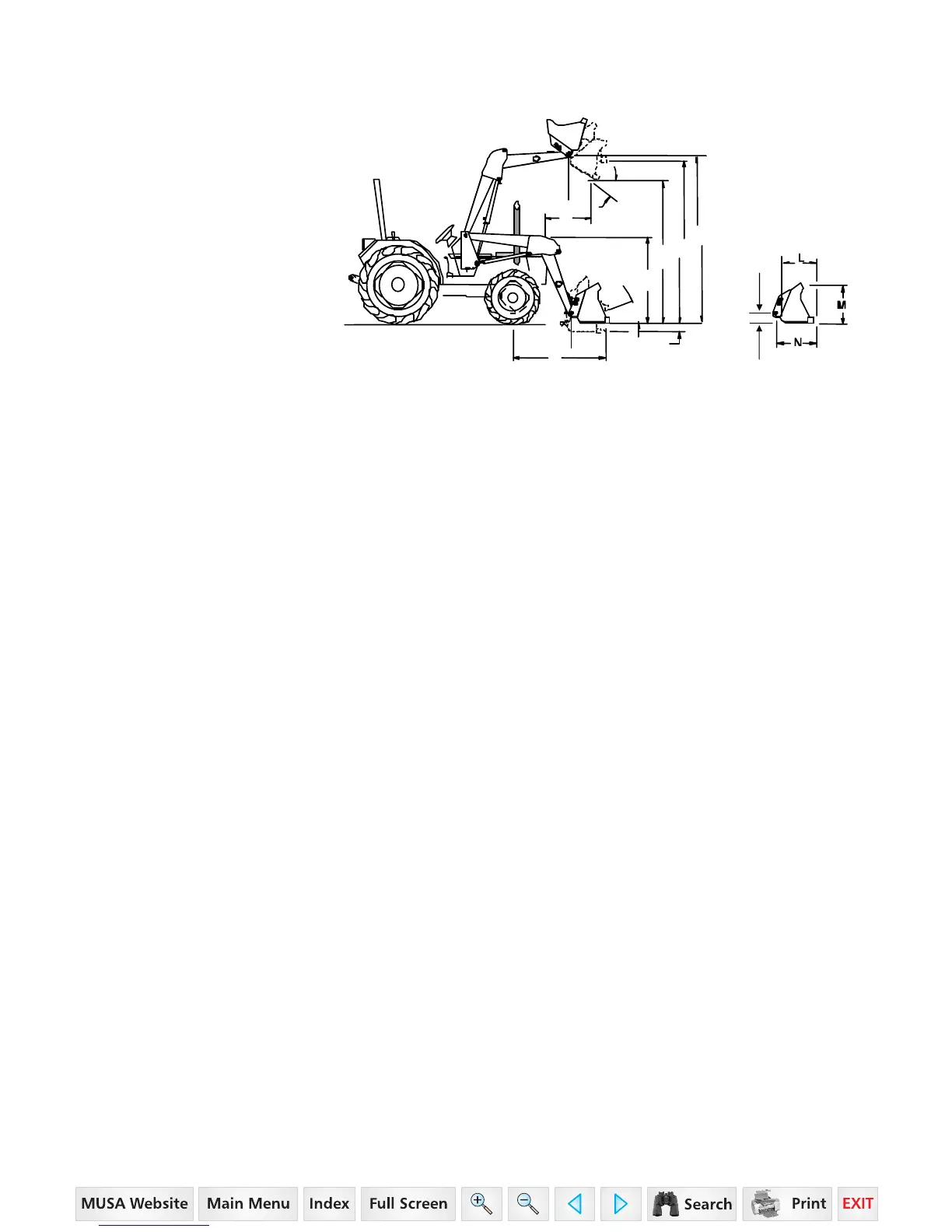

SPECIFICATIONS OF LOADER:......................................................................................................................ML120
A. Maximum Lift Height to Pivot Pin...................................................................................................8’ 9" (105")
B. Maximum Lift Height under Level Bucket................................................................................8’ 4.5" (100.5")
C. Clearance with Bucket Fully Dumped .............................................................................................7’ 1" (85")
D. Reach at Maximum Lift Height (to Grill Guard) .........................................................................2’ 1/2" (24.5")
E. Maximum Dump Angle ..................................................................................................................40 degrees
F. Reach with Bucket on Ground............................................................................................................. 5’ (60”)
G. Maximum Rollback Angle ..............................................................................................................19 degrees
H. Digging Depth........................................................................................................................................ 3 3/8"
J. Overall Height in Carry Position ................................................................................................4’ 8"* (55.6"*)
L. Bucket Depth............................................................................................................................................. 21"
M. Bucket Height ............................................................................................................................................ 20"
N. Loader Bucket Pin to Front of Front Cutting Edge ................................................................................. 25.6"
P. Loader Bucket Pin to Bottom of Front Cutting Edge .............................................................................. 4.48"
U. Lift Capacity to Maximum Height at Pivot Pin.....................................................................................1960 lb.
Y. Breakout Force at Ground Line at Pivot Pin.......................................................................................3900 lb.
*Top of Arm with Bucket 12" off ground.
Specifications taken with Ag. Tires (12-16.5 front and 16.9 x 24 rear) with 72” skid steer bucket installed
on unit.
Cycle time 1000 rpm 1500 rpm 2000 rpm Full rpm
Raise time 10.1 sec. 7.7 sec. 6.1 sec. 4.9 sec.
Lower time 5.4 sec. 5.5 sec. 4.8 sec. 4.1 sec.
Dump time w/regen 5.5 sec. 4.5 sec. 4.2sec. 3.8 sec.
Rollback time 5.3 sec. 4.1 sec. 3.6 sec. 3 sec.
Lift Cylinder Dia. ..................................................................................................................... 2” x 1-1/4" Rod
Tilt Cylinder Dia. ..................................................................................................................... 2" x 1-1/4” Rod
Relief Valve Setting (Tractor relief)....................................................................................................2950 psi
Loader Package Weight ........................................................................................................................1425#
Specifications taken with Mounting Kit, Hose Kit, and 72" Skid Steer Bucket.
Specifications based on ASAE standards S301.3 and furnished for general information only as they can vary with different tractor
models. Specifications are subject to change without notice and without liability therefore.
1.1. BUCKET SPECIFICATIONS
BUCKET CAPACITY STRUCK CAPACITY RATED SIZE CAPACITY
72” Skid Steer Bucket 12.5 cu. ft. 16.3 cu. ft
J
H
D
B
C
G
E
F
A
U
Y
35 Series 4WD, Model - 3535 & 4035 Loader June’08
