57

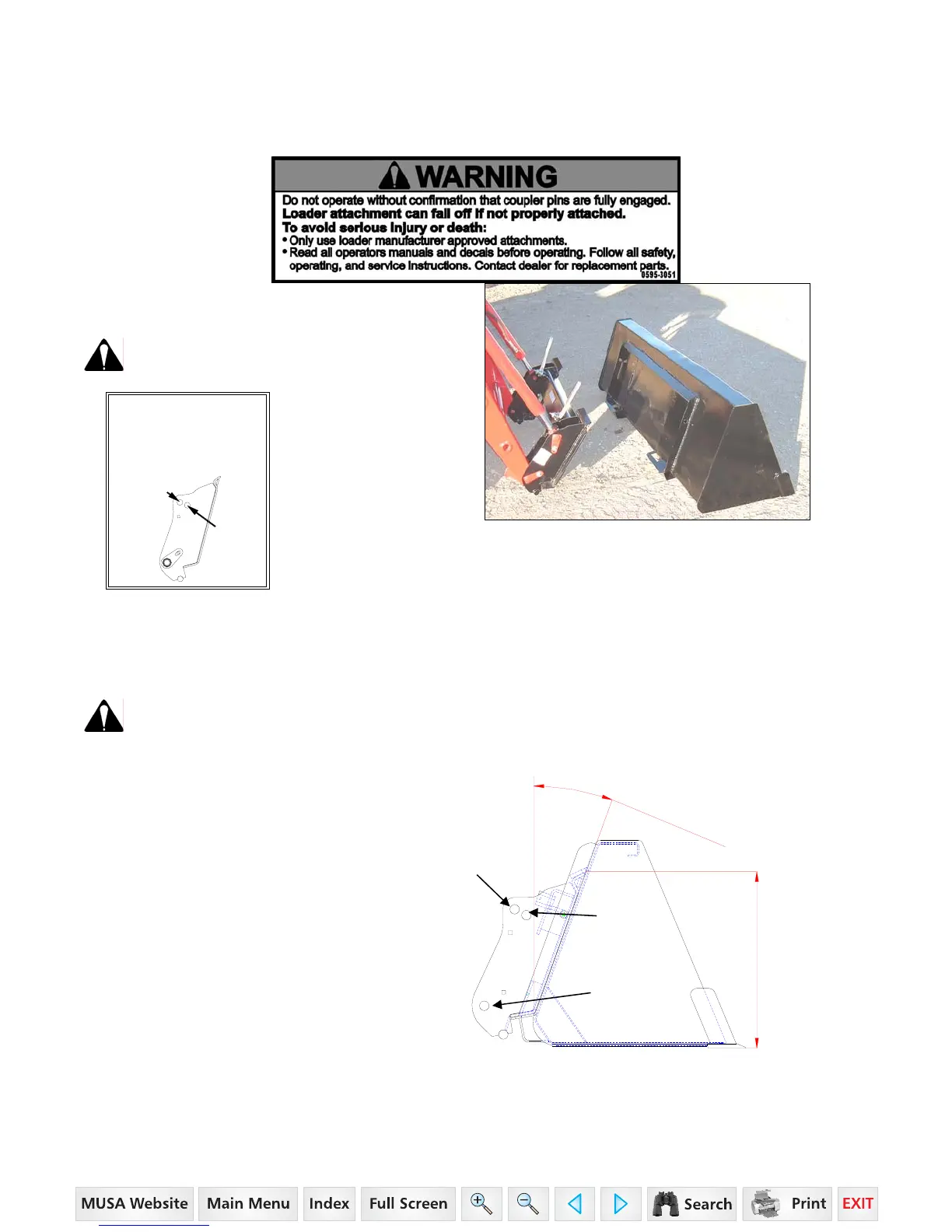

10. SKID STEER TOOL CARRIER SYSTEM
NOTE: Some photos in this section are generic photos.
IMPORTANT: Read safety information in this section and on decal before operating attachment.
NOTE: Skid Steer Tool Carrier System is optional
equipment
WARNING: Always read and follow
operating instructions before operating
Skid Steer Tool Carrier System.
10.1. RECOMMENDED LOADER FACTORY APPROVED ATTACHMENTS
10.1.1. Use only Loader Factory Approved Attachments for mounting on this Skid Steer Tool Carrier System.
72” bucket, Bale spear, and Pallet fork.
CAUTION: Only use 72” bucket, bale spear, and pallet fork at specified capacities on ML120
loader. All other attachment use will void tractor/loader warranty and could cause instability of
unit causing personal injury or death.
10.2. NON-LOADER FACTORY ATTACHMENTS
10.2.1. If you are going to connect a non-Loader
Factory Attachment to this Skid Steer Tool Carrier
System, read and understand the following
instructions and safety information. Always make
sure Skid Steer Tool Carrier is locked onto all
attachments.
NOTE "A": If your attachment back is not running
at a 20 degree angle, your loader rollback and
dump angles will change per attachment angle
change.
NOTE "B": If your attachment point is lower than
this, your attachment may not touch the ground
when loader is fully lowered.
N
o
t
e
"
A
"
2
0
D
e
g
r
e
e
s
Note "B" 18.63"
NOTE: Never install a Non-loader Factory Bucket that is larger than 72” and has more than 12.5 cubic feet
struck capacity. Over-load of tractor can occur voiding tractor warranty.
NOTE: Never install a grapple attachment to the ML120 loader. Overload of tractor and damage to loader
can occur voiding tractor and loader warranty.
Pin ML120
this hole
Only
0595-3145
IMPORTANT
Loader attachment cylinders
must be pinned to correct hole
or cylinder damage will occur
voiding warranty.
Pin ML130
this hole
Only
ML130
ML120
ML120
ML130
35 Series 4WD, Model - 3535 & 4035 Loader June’08
