23
3.3. LOADER INSTALLATION
CAUTION: Lift and support all loader components safely.
IMPORTANT: Do not extend tilt cylinders without attachment pinned to loader. Failure to follow these
instructions could cause loader damage and void warranty.
3.3.1. Loader valve hoses and quick couplers have been pre-assembled on loader. Unwrap these hoses by
cutting nylon ties securing them to side of loader.

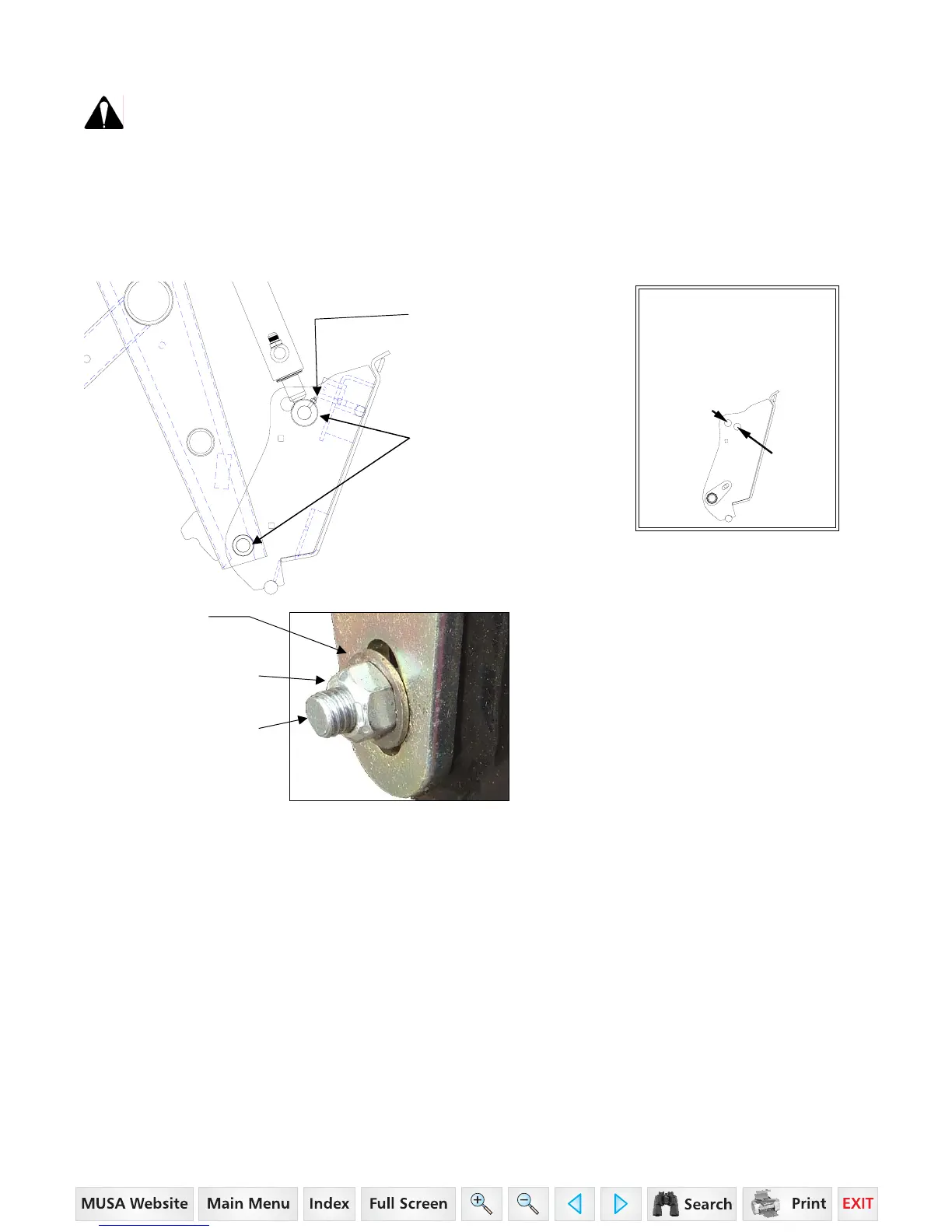

3.3.2. Before installing loader to tractor, use a hoist to install skid steer tool carrier if not factory installed and
bucket on loader. Loader attachment cylinders must be pinned to correct holes. Failure to follow these instructions
could cause cylinder damage not covered under warranty. Secure using pins and hardware, 4 places.
Bucket cylinder grease
zerk faces upward
Install 1.0” x 4.11” Pivot
Pin, 3/8”-16 x 1.25”
Carriage Bolts, 3/8”
Hardened Flatwashers and
3/8”-16 Stover Hex
Locknuts in holes
indicated. Secure using
hardware below.
Pin ML120
this hole
Only
0595-3145
IMPORTANT
Loader attachment cylinders
must be pinned to correct hole
or cylinder damage will occur
voiding warranty.
Pin ML130
this hole
Only
Flatwasher 3/8"
Hardened, 4 places.
Stover Locknut 3/8"-16,
4 places.
Carriage Bolt 3/8"-16 x
1.25” Grade 5, 4
places.
Refer to Section 10 to 13 for Skid Steer Tool Carrier System, Pages 56 to 64.
3.3.3. Following these instructions will add stability to loader package and will allow easier handling of loader with
hoist.
35 Series 4WD, Model - 3535 & 4035 Loader June’08
