Mahindra ML 120 4035 User Manual

60

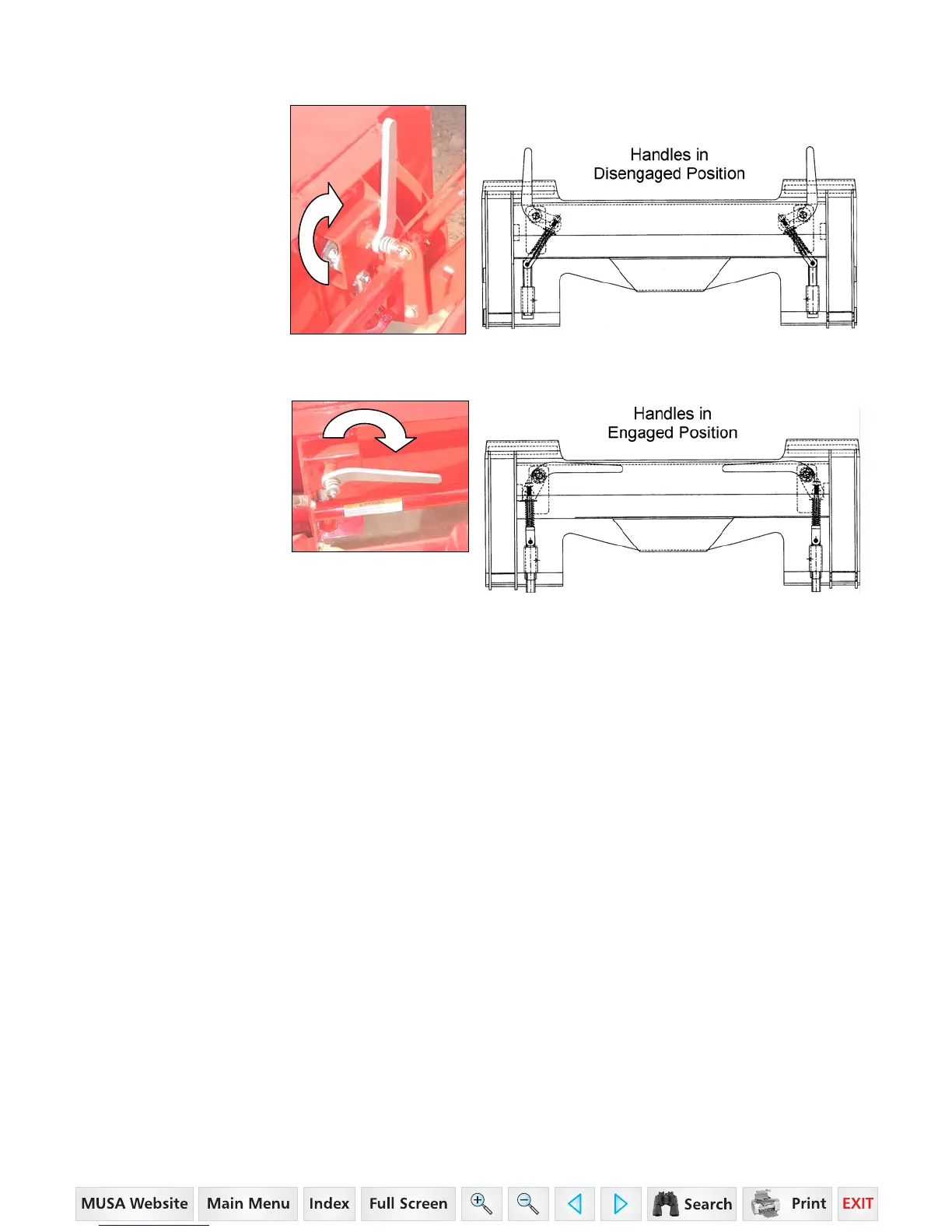

11.2. SKID STEER TOOL CARRIER HANDLES IN DISENGAGED POSITION
11.2.1. To position handles
into the handle disengaged
position, rotate skid steer
tool carrier handle upward.
Rotate handles
upward
11.3. SKID STEER TOOL CARRIER HANDLES IN ENGAGED POSITION
11.3.1. To position handles
into the handle engaged
position, rotate skid steer
tool carrier handle
downward until they latch
into position.
NOTE: Handles should
be positioned parallel to
ground if properly
latched.
Rotate handles
downward.
35 Series 4WD, Model - 3535 & 4035 Loader June’08
