11. INSTALLATION & OPERATION OF
SKID STEER TOOL CARRIER SYSTEM
IMPORTANT: Read safety information in this section and on decal before operating attachment.
WARNING: Always read and follow operating instructions before operating Skid Steer Tool Carrier
System.

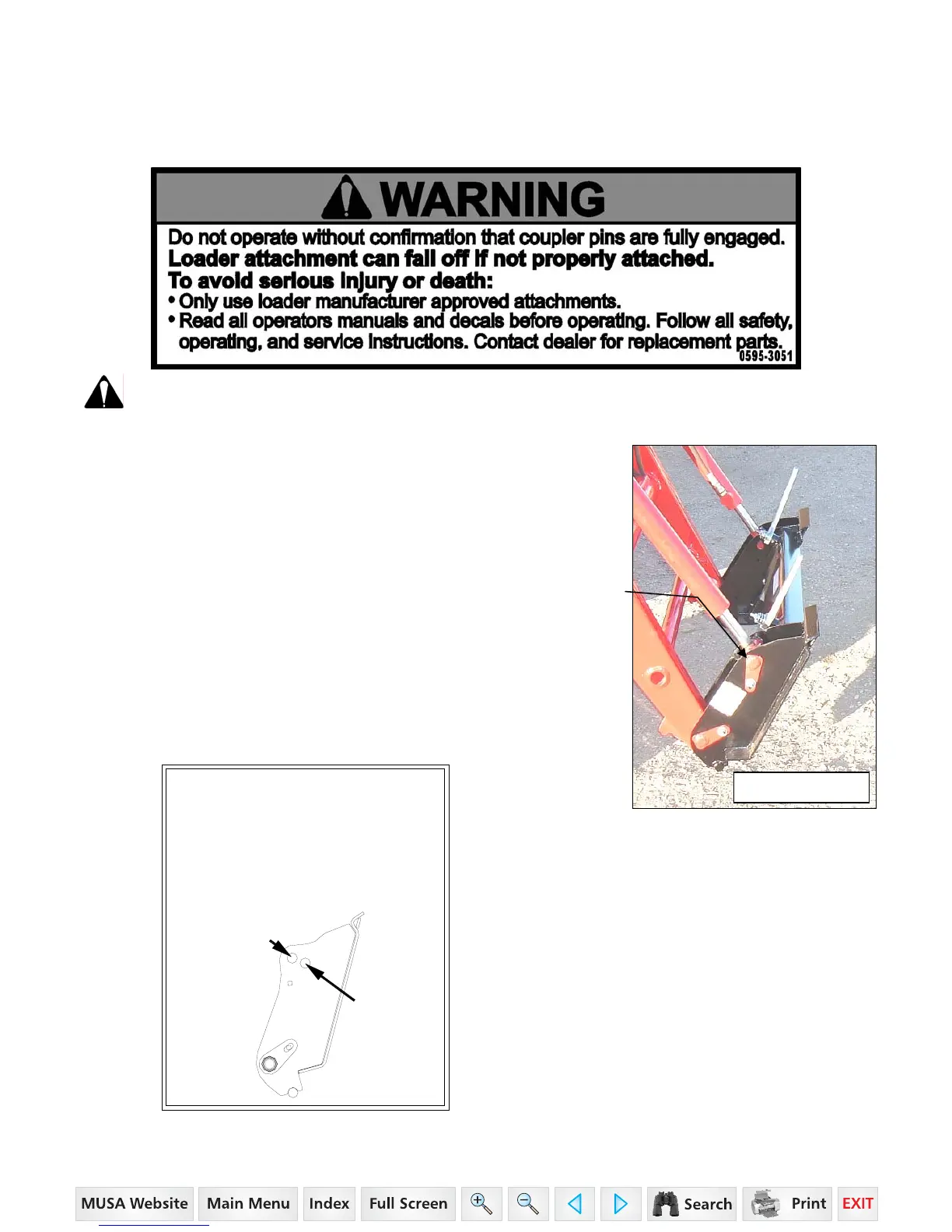

11.1. INSTALLATION INSTRUCTIONS
IMPORTANT: Do not extend bucket cylinders without Skid Steer Tool
Carrier installed on loader. Failure to follow these instructions could
cause loader damage and void warranty.
Install Skid Steer Tool Carrier to loader using 1.0” x 4.11” Pivot Pin,
3/8”-16 x 1.25” Carriage Bolts, 3/8” Hardened Flatwashers and 3/8”-16
Stover Hex Locknuts, 4 places as shown.
.
Install 1.0” x 4.11” Pivot Pin,
3/8”-16 x 1.25” Carriage Bolts,
3/8” Hardened Flatwashers,
3/8”-16 Stover Hex Locknuts,
4 places
NOTE: Locate tilt cylinder grease zerk downward.
Pin ML120
this hole
Only
0595-3145
IMPORTANT
Loader attachment cylinders
must be pinned to correct hole
or cylinder damage will occur
voiding warranty.
Pin ML130
this hole
Only
Generic Photo
35 Series 4WD, Model - 3535 & 4035 Loader June’08
