COMMONRAILSYSTEM
HIGH-PRESSURELINESANDRAILS
Removing,installingthehigh-pressurelinesandrails
Additionaljobs
–Removing,installingthecombinationairlter,see187
–Removing,installingenginecontrolunits,see27
–Removing,installingthecombinationairlterholder,see193
–Removing,installingtheenginewiringharness,see25
–Removing,installingthechargeairmanifold,see181
–Removing,installingthecoolingsystem,see55
–Removing,installingtheramfan,see61
–Removing,installingthefanV-belt,see85
–Removing,installingtheintermediateange,see63
–Removing,installingthefantensioningpulley,see89
–Removing,installingthefancarrierwithfanbearing,see91
–Removing,installingthecoolantpumpcoolantmanifold,see73
–Removing,installingfuellines,see141

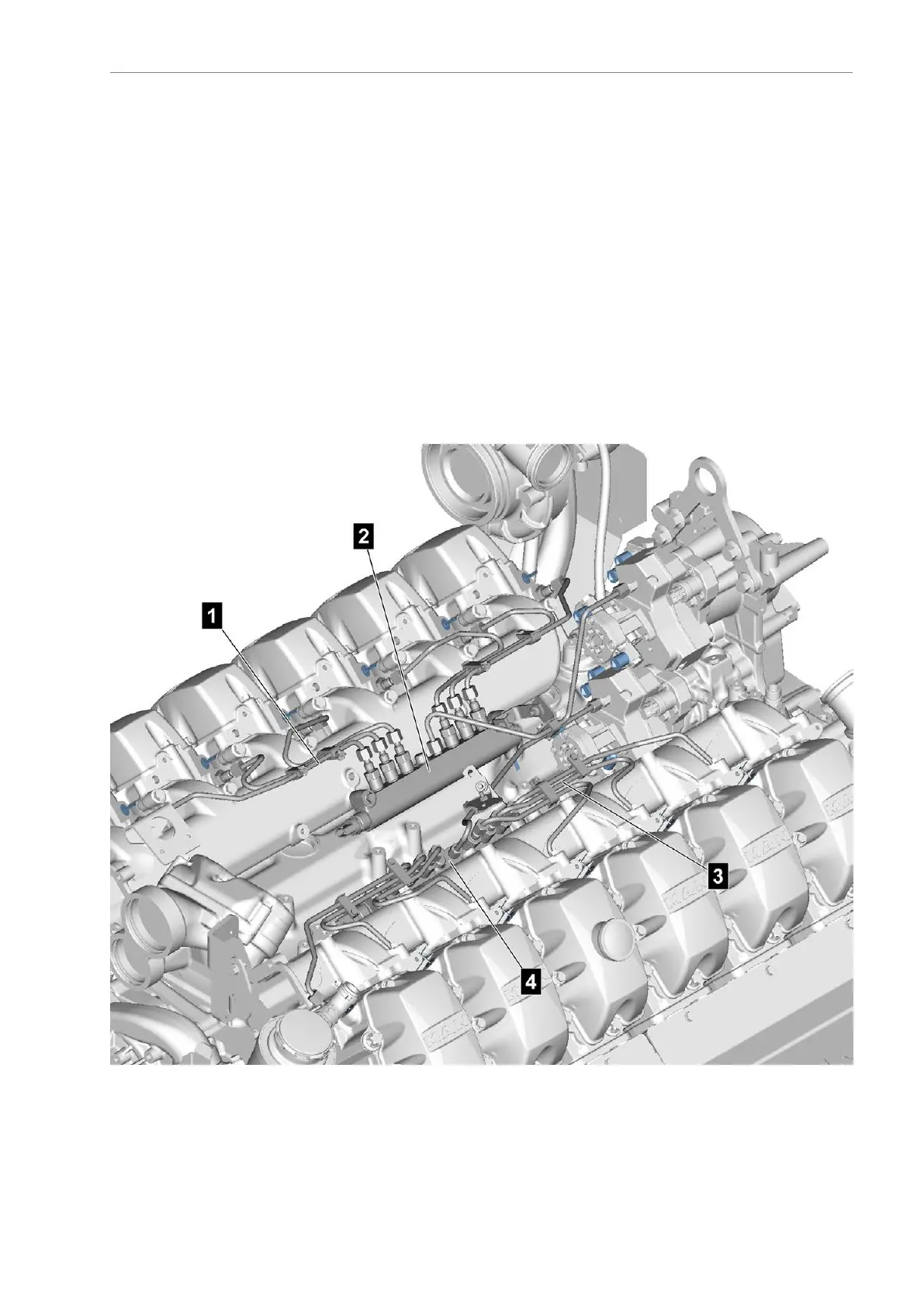

(1)Setofinjectionlines
(2)Rightrail
(3)Setofinjectionlines
(4)Leftrail
Technicaldata
High-pressurelines(initialuse)...................................................................................Initialtorque10Nm
High-pressurelines(initialuse)....................................................................................Finaltightening60°
High-pressurelines(re-use)........................................................................................Initialtorque10Nm
High-pressurelines(re-use).........................................................................................Finaltightening30°
Railpressuresensor.............................................M18x1.5............................................................80Nm
AE63stedition107
