COMMONRAILSYSTEM
Dismantling,assemblingthehigh-pressurepump/high-pressurepumpdrive
Additionaljobs
–Removing,installingthecombinationairlter,see187
–Removing,installingenginecontrolunits,see27
–Removing,installingthecombinationairlterholder,see193
–Removing,installingtheenginewiringharness,see25
–Removing,installingthechargeairmanifold,see181
–Removing,installingthecoolingsystem,see55
–Removing,installingthefanV-belt,see85
–Removing,installingtheramfan,see61
–Removing,installingtheintermediateange,see63
–Removing,installingthefantensioningpulley,see89
–Removing,installingthefancarrierwithfanbearing,see91
–Removing,installingthecoolantpumpcoolantmanifold,see73
–Removing,installingfuellines,see141
–Removing,installingcoolantlines,see65
–Removing,installingthehigh-pressurepump/high-pressurepumpdrive,see129

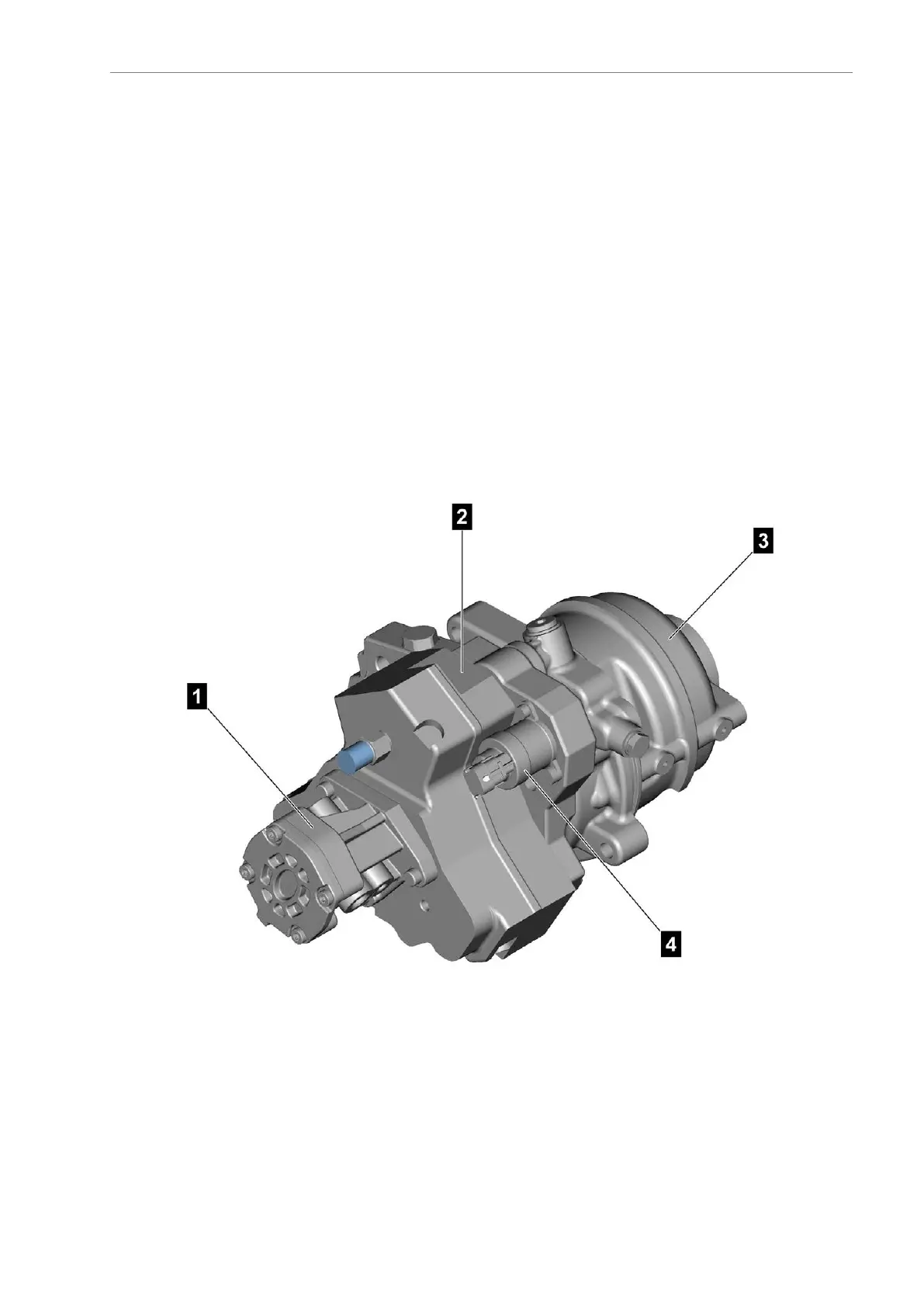

(1)Fuelpump
(2)High-pressurepump
(3)Drivehousing
(4)Meteringunit
Technicaldata
Overowvalve.....................................................M14x1.5............................................................34Nm
Mountingbolts,fuelpump.....................................M6x20T30.........................................................8Nm
Mountingbolts,meteringunit................................M5x20T25......................................Initialtorque3Nm
Mountingbolts,meteringunit................................M5x20T25.......................................Finaltorque6Nm
AE63stedition135
