CRANKMECHANISM
VIBRATIONDAMPER
Removing,installingthevibrationdamper
Additionaljobs
–Removing,installingthecoolingsystem,see55
–Removing,installingthefanV-belt,see85
–Removing,installingtheramfan,see61
–Removing,installingtheintermediateange,see63
–Removing,installingthefantensioningpulley,see89
–Removing,installingthefancarrierwithfanbearing,see91
–Removing,installingthepoly-V-belt,see93
–Drainingthecoolant,seeOperator'sManual

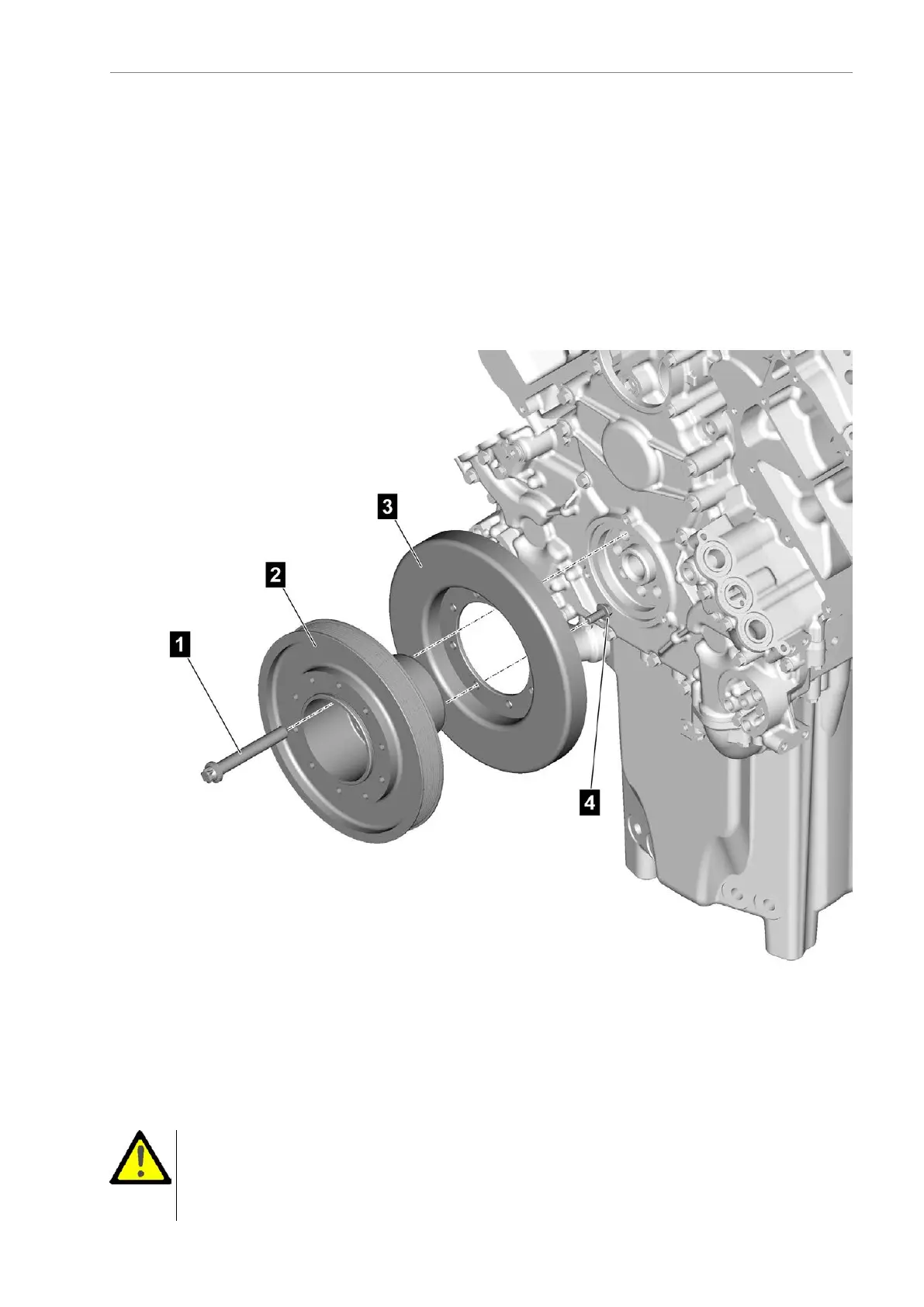

(1)Mountingbolt
(2)Hub
(3)Vibrationdamper
(4)Mountingbolt
Technicaldata
Mountingbolt.......................................................M16x1.5x117-10.9.........................Initialtorque190Nm
Mountingbolt.......................................................M16x1.5x117-10.9...........................Finaltightening90°
Importantinformation
WARNING
Componentdamageduetoincorrectlytightenedscrew/boltconnections
•Ifimpactwrenchesareused,thesemayonlybeusedforpretighteningtomax.50%ofthe
speciedtighteningtorque
•Finaltighteningmustalwaysbeperformedmanuallyusingatorquewrench
AE63stedition309
