Man D2862 LE221 User Manual

COMMONRAILSYSTEM
HIGH-PRESSUREPUMP/HIGH-PRESSUREPUMPDRIVE
Removing,installingthehigh-pressurepump/high-pressurepumpdrive
Additionaljobs
–Removing,installingthecombinationairlter,see187
–Removing,installingenginecontrolunits,see27
–Removing,installingthecombinationairlterholder,see193
–Removing,installingtheenginewiringharness,see25
–Removing,installingthechargeairmanifold,see181
–Removing,installingthecoolingsystem,see55
–Removing,installingthefanV-belt,see85
–Removing,installingtheramfan,see61
–Removing,installingtheintermediateange,see63
–Removing,installingthefantensioningpulley,see89
–Removing,installingthefancarrierwithfanbearing,see91
–Removing,installingthecoolantpumpcoolantmanifold,see73
–Removing,installingfuellines,see141
–Removing,installingcoolantlines,see65

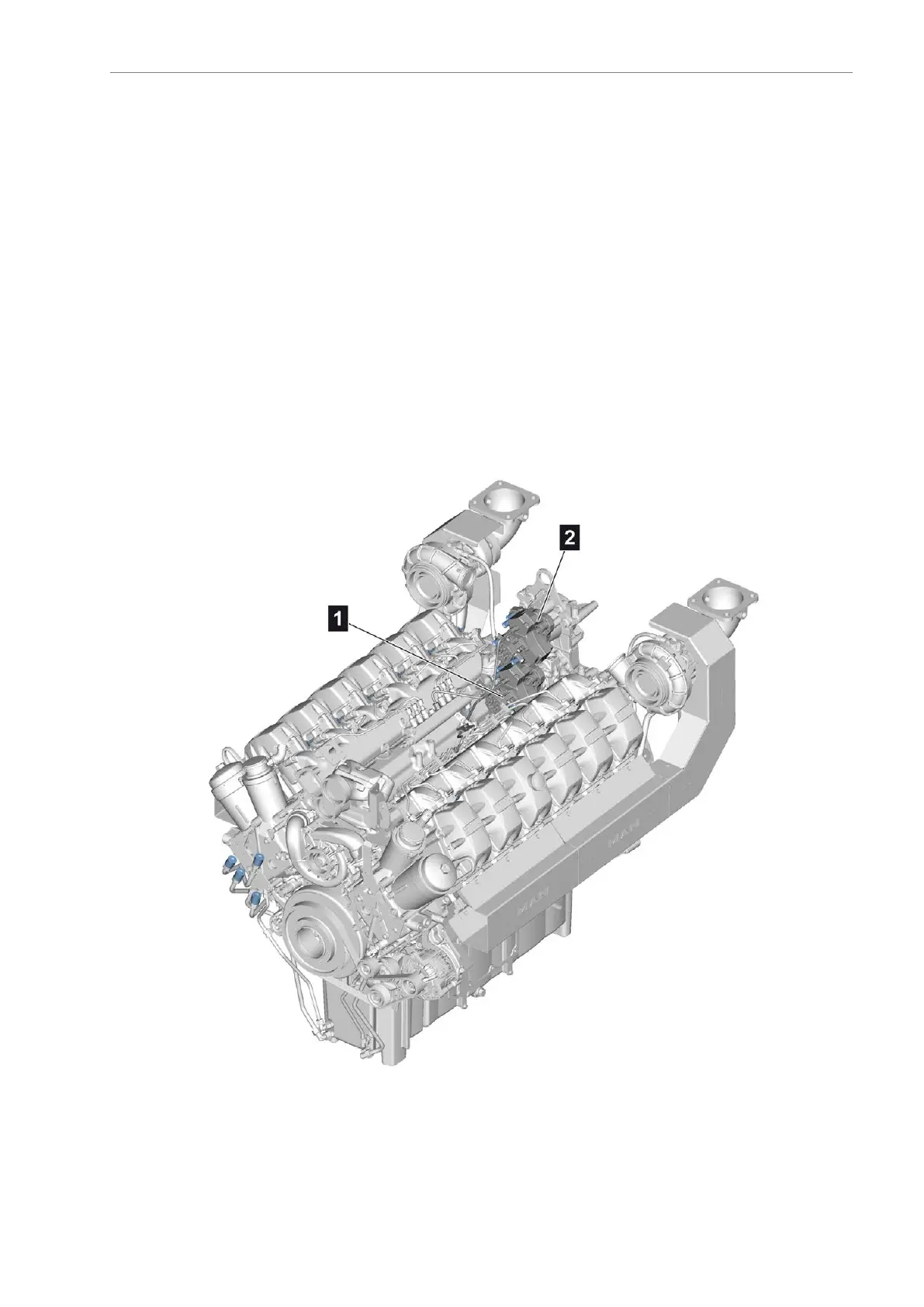

(1)High-pressurepump,master(2)High-pressurepump,slave
Technicaldata
Mountingbolts,high-pressurepump................................................................................................60Nm
High-pressureline(initialuse)...............................M14x1.5........................................Initialtorque10Nm
High-pressureline(initialuse)...............................M14x1.5.........................................Finaltightening60°
High-pressureline(reuse).....................................M14x1.5........................................Initialtorque10Nm
High-pressureline(reuse).....................................M14x1.5.........................................Finaltightening30°
AE63stedition129
