ENGINEELECTRICS
ENGINECONTROLUNITS
Removing,installingenginecontrolunits
Additionaljobs
–Removing,installingthecombinationairlter,see187
–Removing,installingthecombinationairlterholder,see193

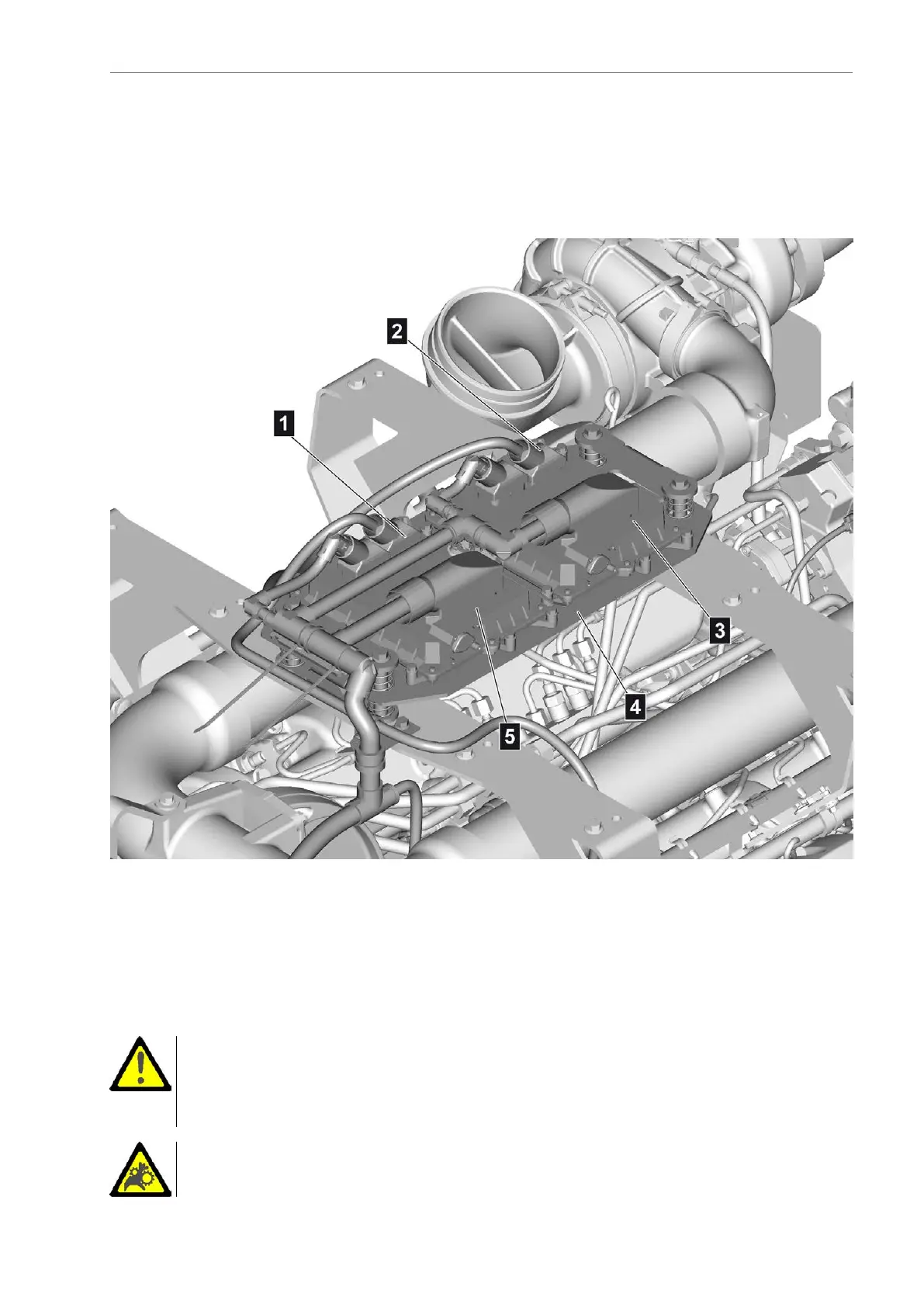

(1)Electricalconnection(master)
(2)Electricalconnection(slave)
(3)Enginecontrolunit(slave)
(4)Bracketforcontrolunits
(5)Enginecontrolunit(master)
Technicaldata
Mountingbolt,master...........................................M6x30-10.9.......................................................11Nm
Mountingbolt,slave..............................................M6x30-10.9.......................................................11Nm
Importantinformation
WARNING
Componentdamageduetoincorrectlytightenedscrew/boltconnections
•Ifimpactwrenchesareused,thesemayonlybeusedforpretighteningtomax.50%ofthe
speciedtighteningtorque
•Finaltighteningmustalwaysbeperformedmanuallyusingatorquewrench
CAUTION
Dangerofinjuryonsharp-edgedprojectionsonthecableties
•OnlytightenandcutoffcabletieswiththeCabletiepliers[2]
AE63stedition27
