CYLINDERHEAD
Removing,installingtherockerarmmechanism
Additionaljobs
–Removing,installingtheturbocharger,see173
–Removing,installingthecylinderheadcover,see213
–Checkingandsettingthevalveclearance,see238

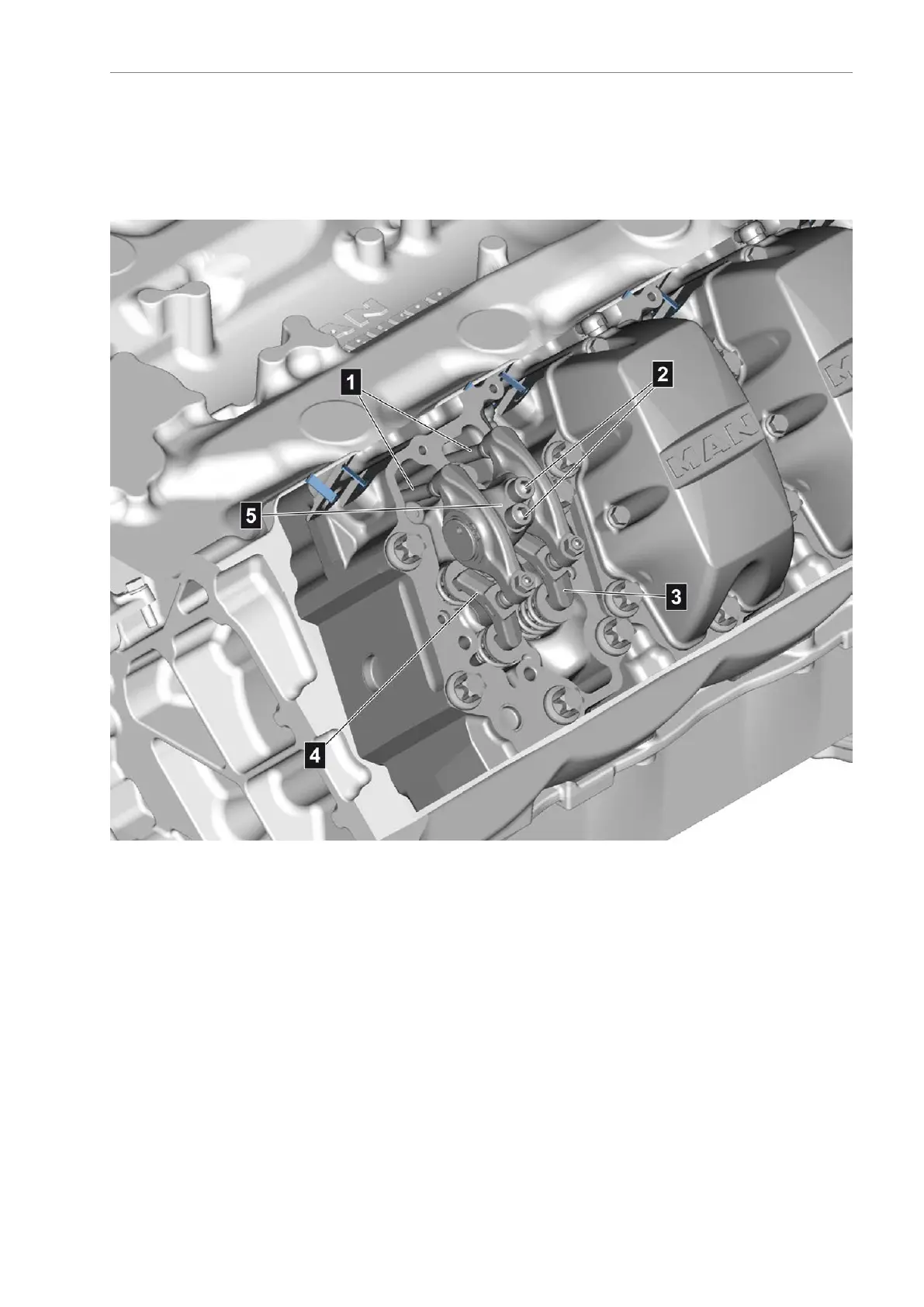

(1)Pushrods
(2)Mountingbolts,rockerarmmechanism
(3)Valvebridge,intake
(4)Valvebridge,exhaust
(5)Rockerarmmechanism
Technicaldata
Mountingbolt,rockerarmmechanism...................M12x80-10.9......................................................90Nm
Mountingbolt,rockerarmmechanism...................M12x80-10.9...................................Finaltightening90°
AE63stedition217
