COMMONRAILSYSTEM
Attachingthefuellter

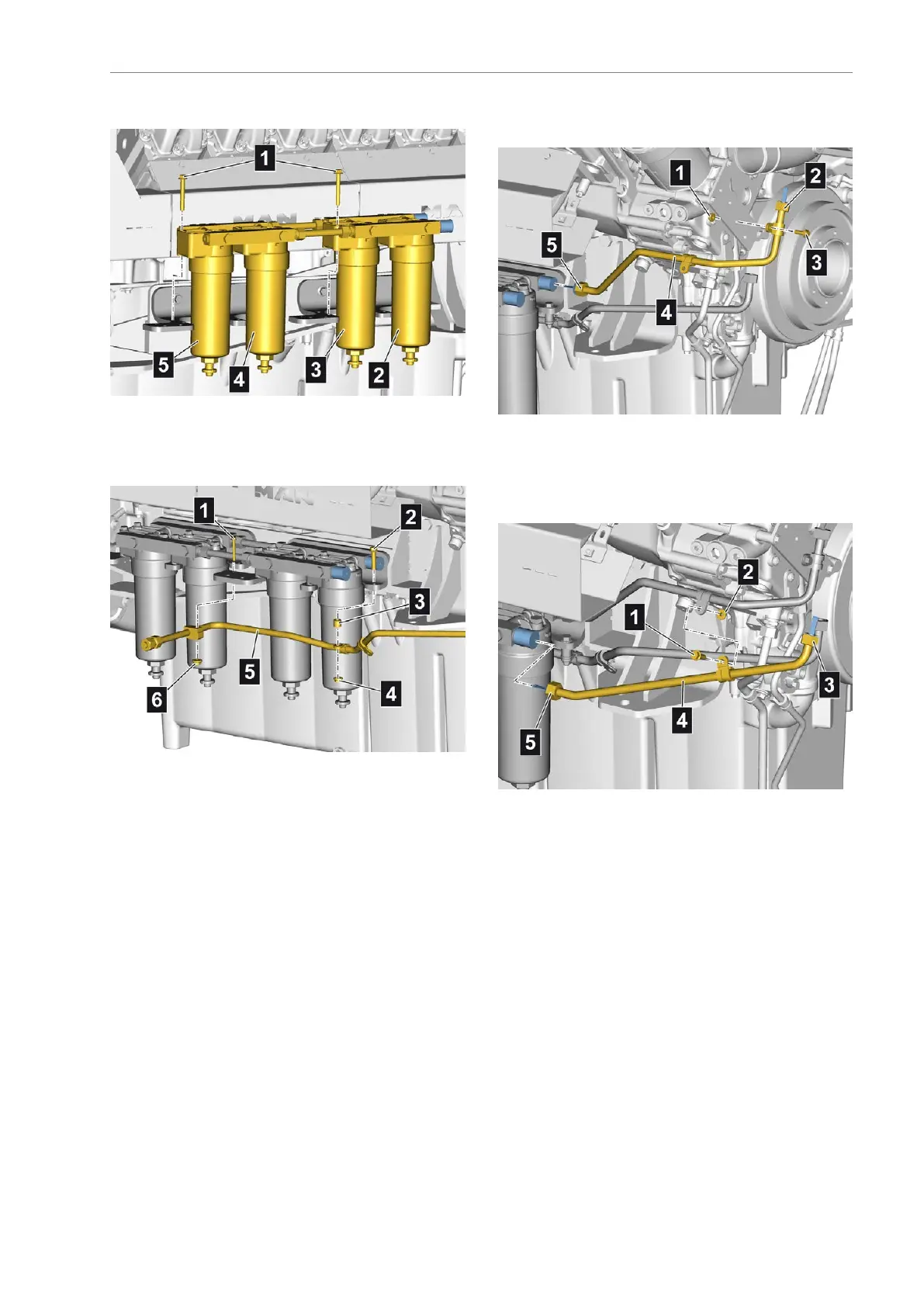

•Positionthefuellters(2),(3),(4)and(5)
•Screwinandtightenthemountingbolts(1)
Attachingthefuelreturnline
•Removeprotectivesleevesandendplugs
•Positionthefuelline(5)
•Positionthemountingbolt(2)withbush(3)
•Screwonandtightenthemountingnut(4)
•Insertthemountingbolt(1)
•Screwonandtightenthemountingnut(6)
Attachingthefuellinefuellter–high-pressure
pumps
•Removeprotectivesleevesandendplugs
•Positionthefuelline(4)
•Screwonandtightenunionnuts(2)and(5)
Attachingthefuellinegearpump–fuellter
•Removeprotectivesleevesandendplugs
•Positionthefuelline(4)
•Screwonandtightenunionnuts(3)and(5)
•Insertthemountingbolt(1)
•Screwonandtightenthemountingnut(2)
AE63stedition159
