NBT60L OPERATOR MANUAL RATED CAPACITY LIMITER
7

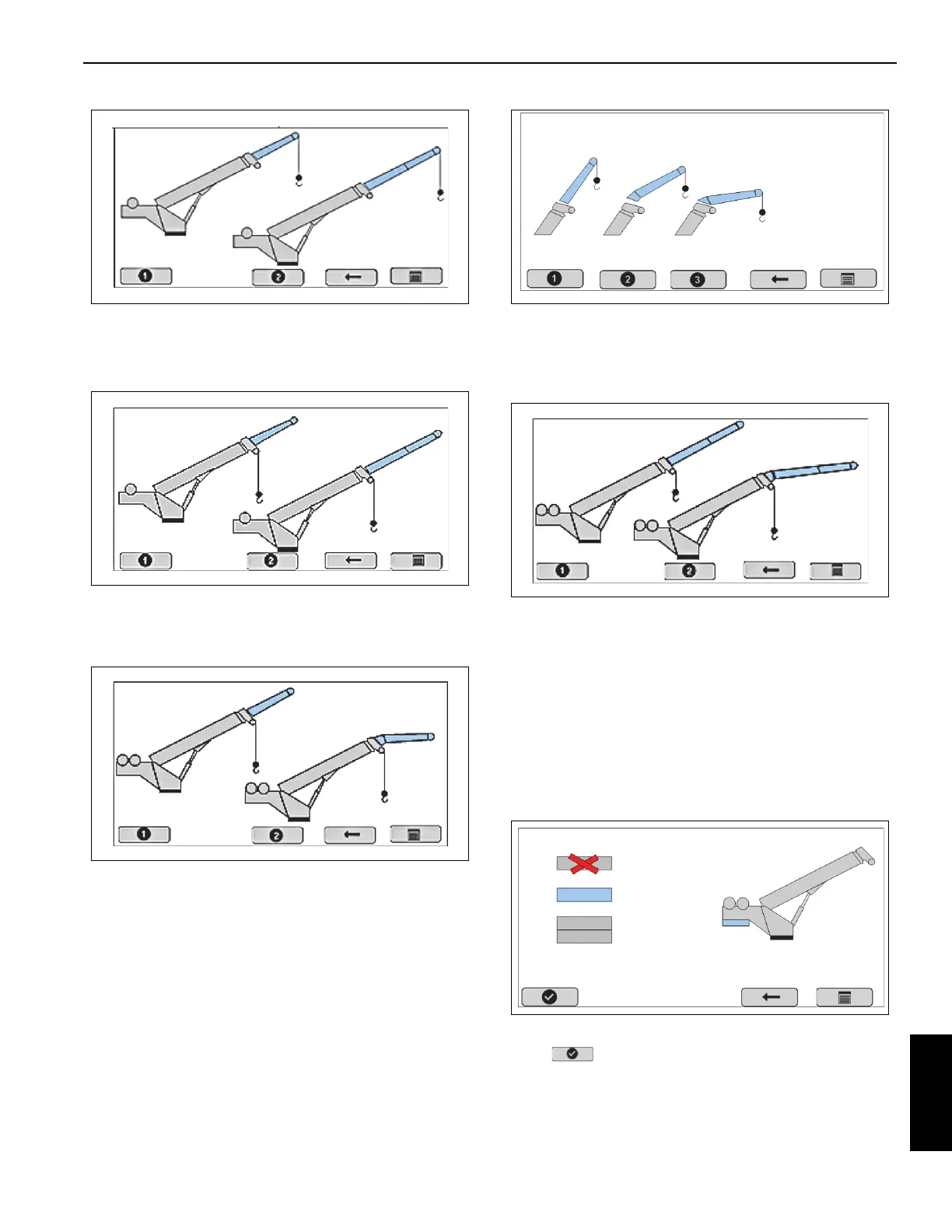

Screen 3-2
Selected 2 on Screen 2. Now select 1 or 2: is the jib retracted
or extended?
Screen 3-3
Selected 3 on Screen 3-1A. Now select 1 or 2: is the
deployed jib retracted or extended?
Screen 4-1
Selected 1 on Screen 3-2. Now select 1 or 2: is the retracted
jib straight (0°) or offset (30°)?
Screen 4-1a (NBT60L Only)
Selected 2 on Screen 3-2. Now select 1, 2, or 3: is the
retracted jib straight (0°), midpoint offset (15°), or full offset
(30°)?
Screen 4-2
Selected 2 on Screen 3-2. Select 1 or 2: is the extended jib
straight (0°) or offset (30°)?
Step 3: Configuring the Counterweight(s)
When the RCL system is configured at the factory, it is
determined if it is configured with the appropriate
counterweight configuration for the variant of crane. Screen
5-1 is adjusted to reflect the crane’s counterweight
configuration.
Screen 5-1
Use the arrow keys to highlight the configuration in blue, then
select to confirm and move forward in the set-up
procedure.
8807-11
8807-12
8807-14
9678
8807-13
9679
Typical.
Display May
Vary.
