NBT60L OPERATOR MANUAL CONTROLS AND OPERATING PROCEDURES
3
NATIONAL CRANE Published 09-06-2019 Control # 691-01 3-7
CAB OUTRIGGER CONTROL
.
Outrigger Selector Buttons
There are four outrigger jack selector buttons located on
each outrigger control panel (Figure 3-1 and Figure 3-3).
Pre-selection of a button or a combination of buttons (one or
more beams or one or more jacks) may be selected within 5
seconds before pressing next function on cab outrigger
control panel (Figure 3-3). The enable button activates the
selected functions.
NOTE: A blue LED illuminates for 5 seconds indicating a
button has been selected. A red LED illuminates if
a button selection is unavailable.
NOTE: Extension beam and jack cannot be combined to
operate simultaneously.

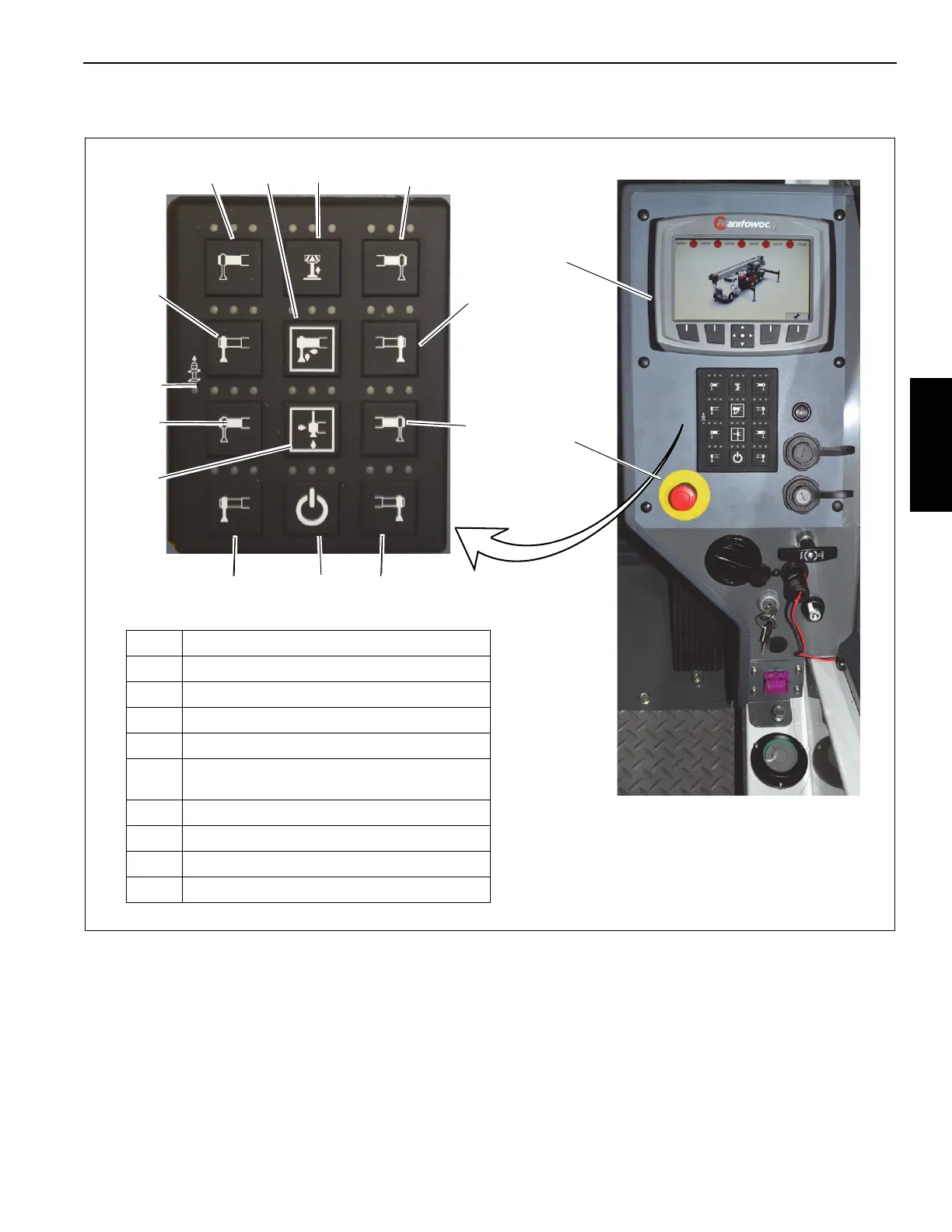

9593
8232-5
FIGURE 3-2
3
6
2
4
7
1
1
1
2
2
1
5
2
Item Description
1 Outrigger Beam Selector Button
2 Outrigger Jack Selector Button
3 Extend Button
4 Retract Button
5
Single Front Outrigger (SFO) Button (if
equipped)
6 Enable Button
7 Module Power Indicator
8 Console Panel
9 Emergency Stop Switch
9
8
REAR
FRONT
LEFT
SIDE
RIGHT
SIDE
