NBT60L OPERATOR MANUAL CONTROLS AND OPERATING PROCEDURES
NATIONAL CRANE Published 09-06-2019 Control # 691-01 3-11

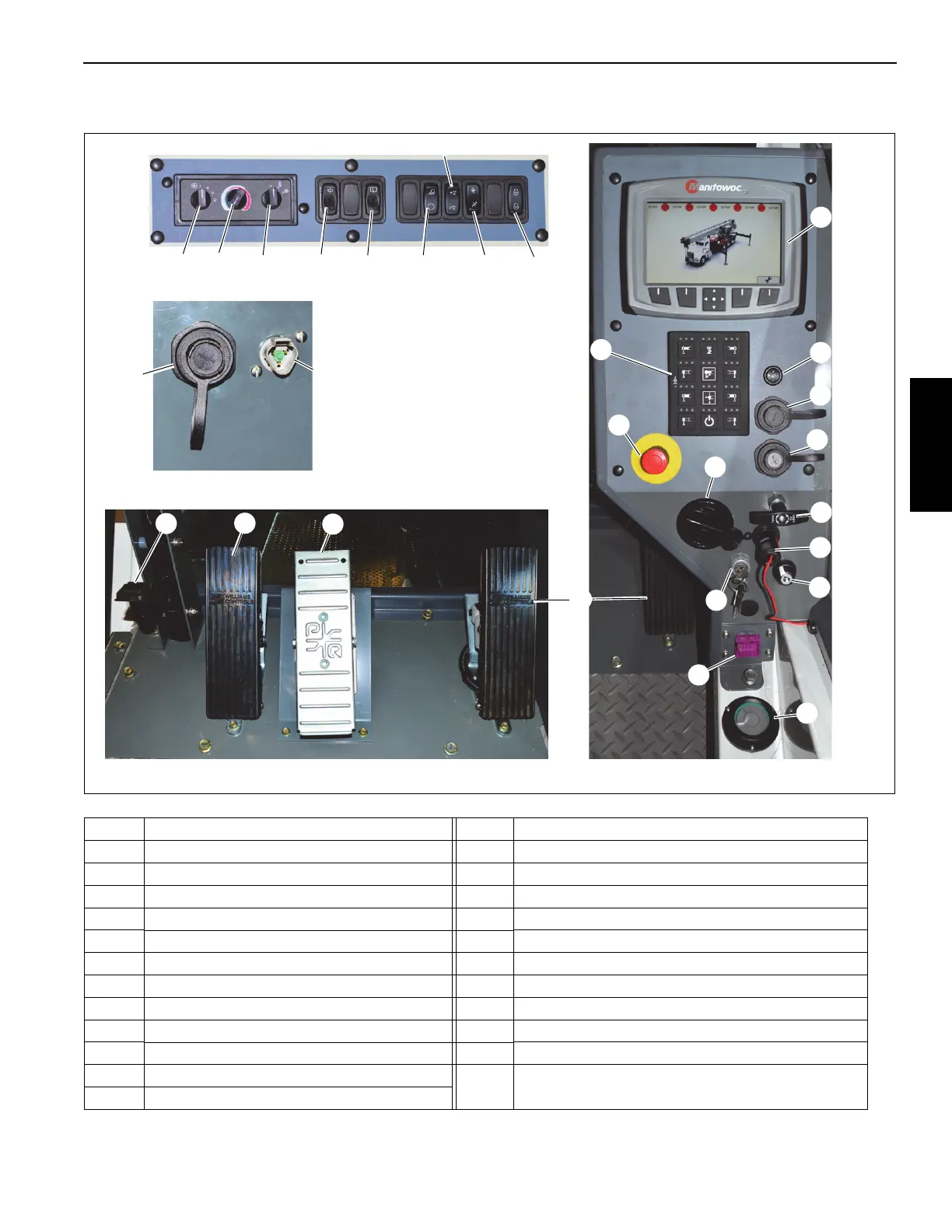

CRANE CONTROLS
2
3
23
20
19
18
16
17
15
22
21
9593
9598
40
5
9
10
12
1
6
14
42
11
45
44
47
43
13
46
9596
9597
FIGURE 3-4
4
Item Description Item Description
1 Outrigger Control Panel 13 Display Diagnostic Connector
2 Swing Brake Pedal 14 Crane Level Indicator
3 Boom Telescope Pedal (Optional) 15 Truck Engine Hi/Low Switch
4 Foot Throttle Pedal 16 Crane Function Power Switch
5 Display Panel Assembly 17 Remote Power Switch (Optional)
6 RCL Bypass Switch 18 Work Light Switch
7 Swing Brake Indicator 19 Skylight Wiper Switch
8 Minimum Indicator 20 Windshield Wiper Switch
9 Emergency Stop Switch 21 A/C Heater Function Switch
10 A/C Heater Vent 22 A/C Heater Temperature Control
11 Ignition Switch
23 A/C Heater Fan Speed
12 Receptacle (12v)
