CONTROLS AND OPERATING PROCEDURES OPERATOR MANUAL NBT60L
3-36 Published 09-06-2019 Control # 691-01
WIND SPEED INDICATOR (OPTIONAL)

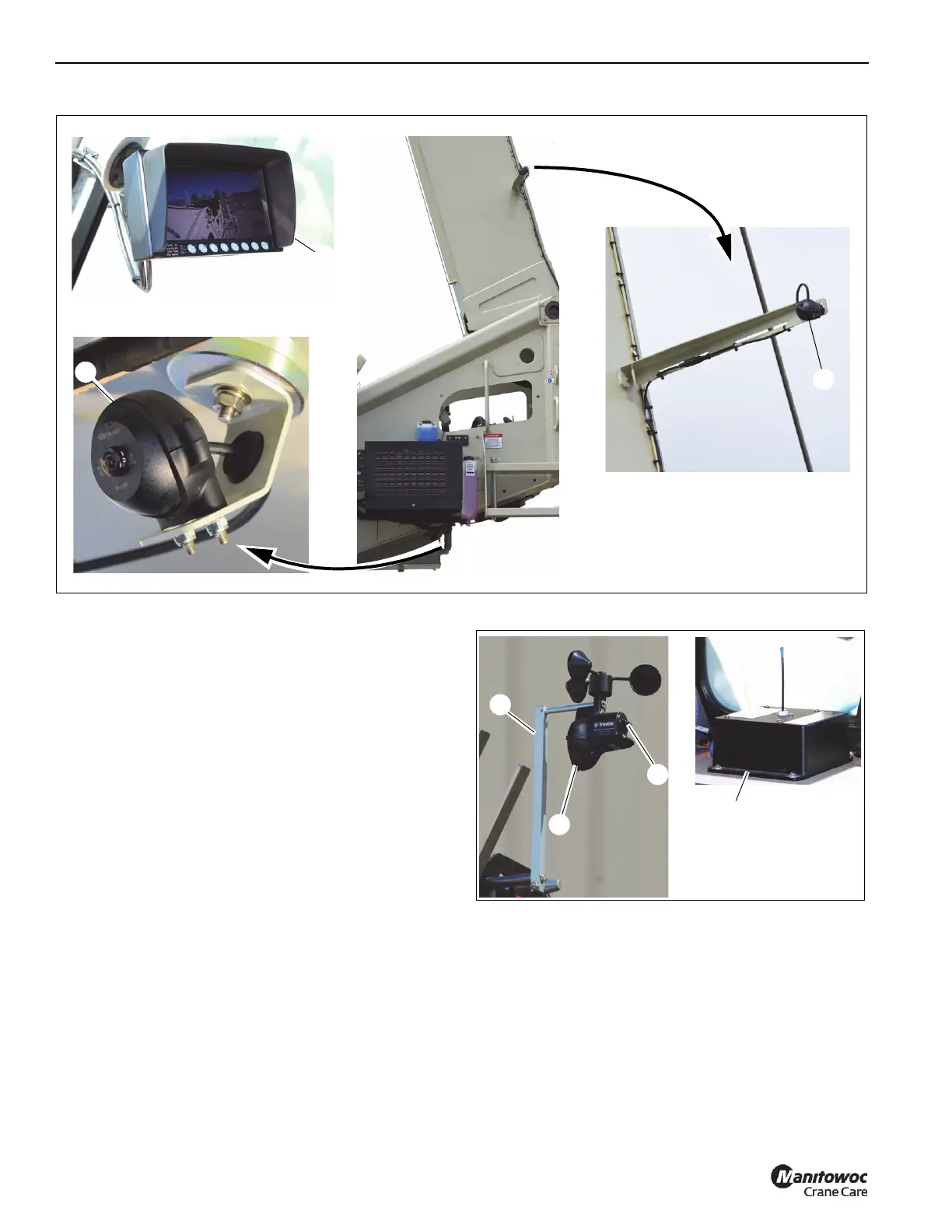

The cranes feature an optional wind speed indicator to
measure wind speed at the end of the boom. The wind speed
indicator features a radio anemometer assembly and a
wireless gateway router. The anemometer (1, Figure 3-28),
which captures wind speed data at the end of the boom or
jib, is battery powered and communicates wirelessly with the
gateway router (2) located in the crane cab. The gateway
router receives data from the anemometer and routes the
data to the RCL display. For information about how the wind
speed indicator appears in the RCL, see Table 7-3 on
page 7-4.
If using a jib, the anemometer assembly should be relocated
to the end of the jib to ensure accurate wind speed readings.
If not in use, the anemometer should be stored on the
storage rack in the operator cab.
Removing the Anemometer Assembly
Use the following procedure to remove the anemometer
assembly, including the mast, from the end of the boom or
jib.
In Operator Cab
FIGURE 3-27
9617
9618
9619
9620
1
2
3
FIGURE 3-28
1
2
3
4
9621
9622
