GROVE Published 1-20-2017, Control# 483-02 4-31
CD5515-2/YB5515-2 SERVICE MANUAL HYDRAULIC SYSTEM
4

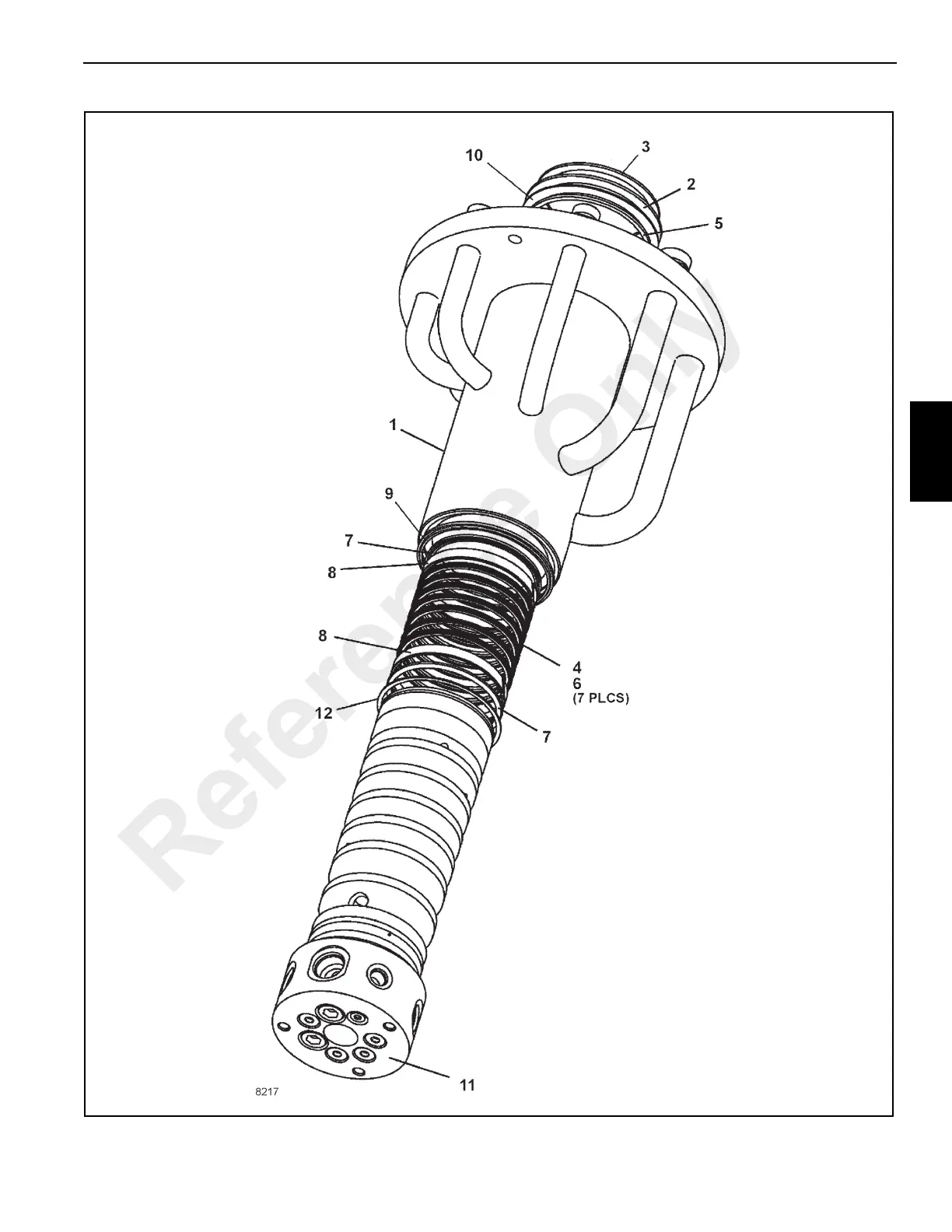

FIGURE 4-25
1. Housing Assembly
2. Washer Ring
3. Retainer Ring
4. Piston Seal (7)*
5. Wiper Ring *
6. Energizer Square Seal (7)*
7. U-cup Seal (2)*
8. Wear Ring (2)*
9. Wiper Ring *
10. Thrust Washer *
11. Spool Assembly
12.Thrust Washer *
* Included In Seal Kit
Reference Only
