CHAPTER 8: PART REPLACEMENT GUIDE

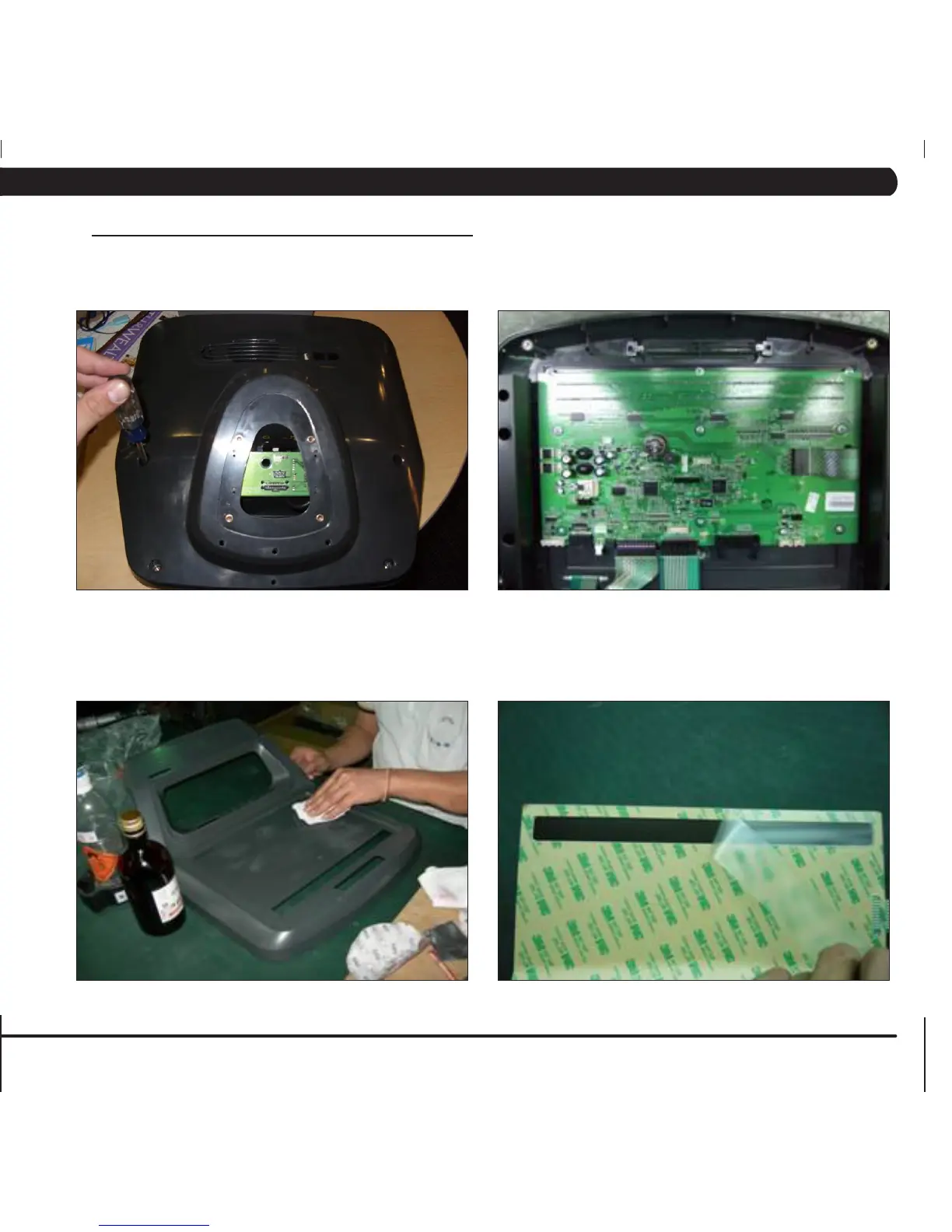

8.5 CONSOLE KEYPAD / OVERLAY REPLACEMENT
1) Remove the console as outlined in Section 8.1.
2) Remove the back cover of the console (Figure A).
3) Unplug and remove the faulty overlay (Figure B).
4) Clean the console area with alcohol to remove any left over adhesive (Figure C).
5) Remove the protective film over the display window of the overlay (Figure D).
FIGURE A
FIGURE B
FIGURE C FIGURE D
