8.16 ECB REPLACEMENT
1) Remove the front shrouds as outlined in Section 8.12.

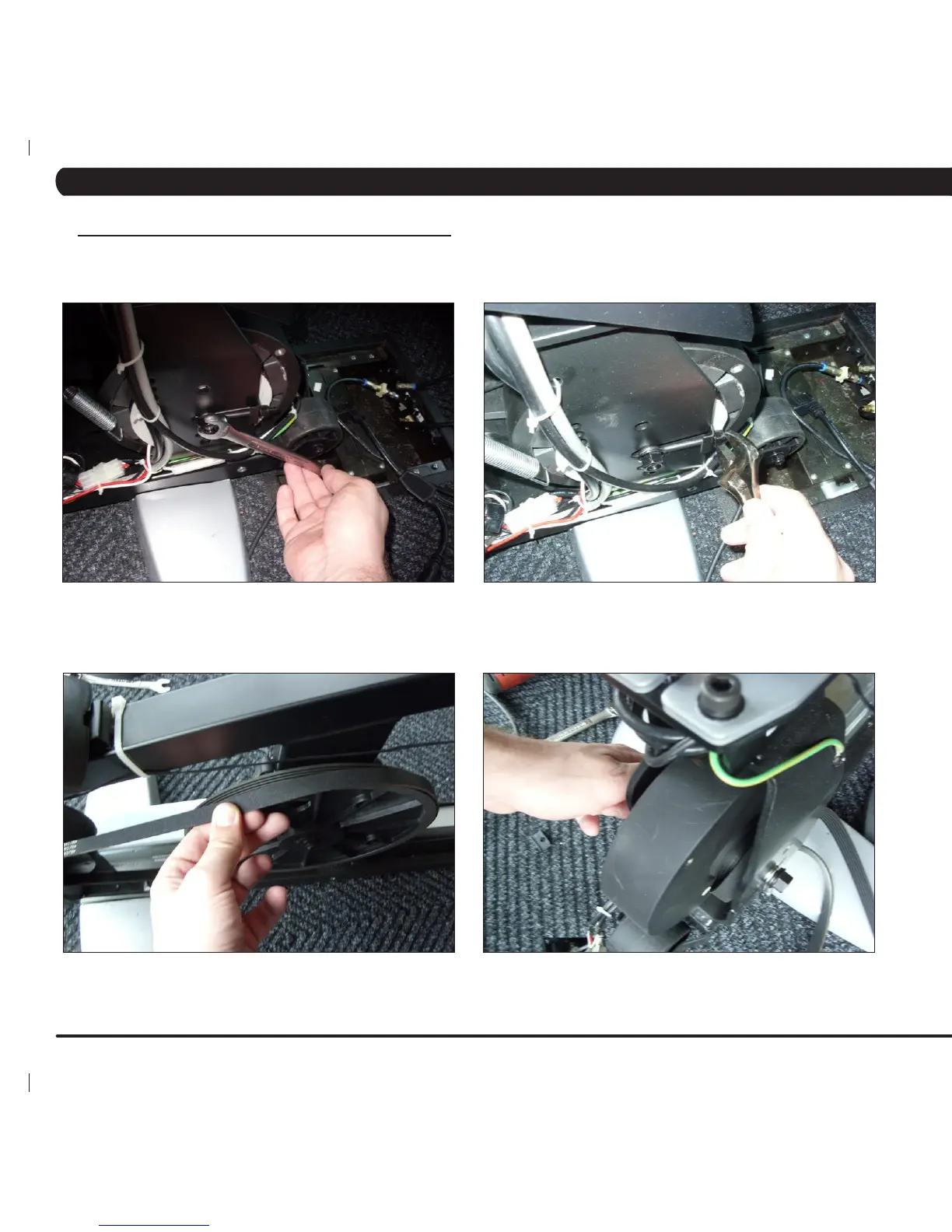

2) Remove the nuts holding the ECB to the frame (Figure A), and remove the nuts putting tension on the ECB belt (Figure B).
3) Once the tension has been removed, the ECB belt can be walked off of the pulley (Figure C).
4) Pull the ECB out of the frame towards the front of the unit, and remove the ECB belt (Figure D).
5) Reverse Steps 1-4 to install a new ECB.
6) Test the bike for function as outlined in Section 8.21.
FIGURE A FIGURE B
FIGURE C FIGURE D
