8.15 ECB (ELECTRONIC BRAKE) BELT REPLACEMENT
CHAPTER 8: PART REPLACEMENT GUIDE
1) Remove the front shrouds as outlined in Section 8.12.

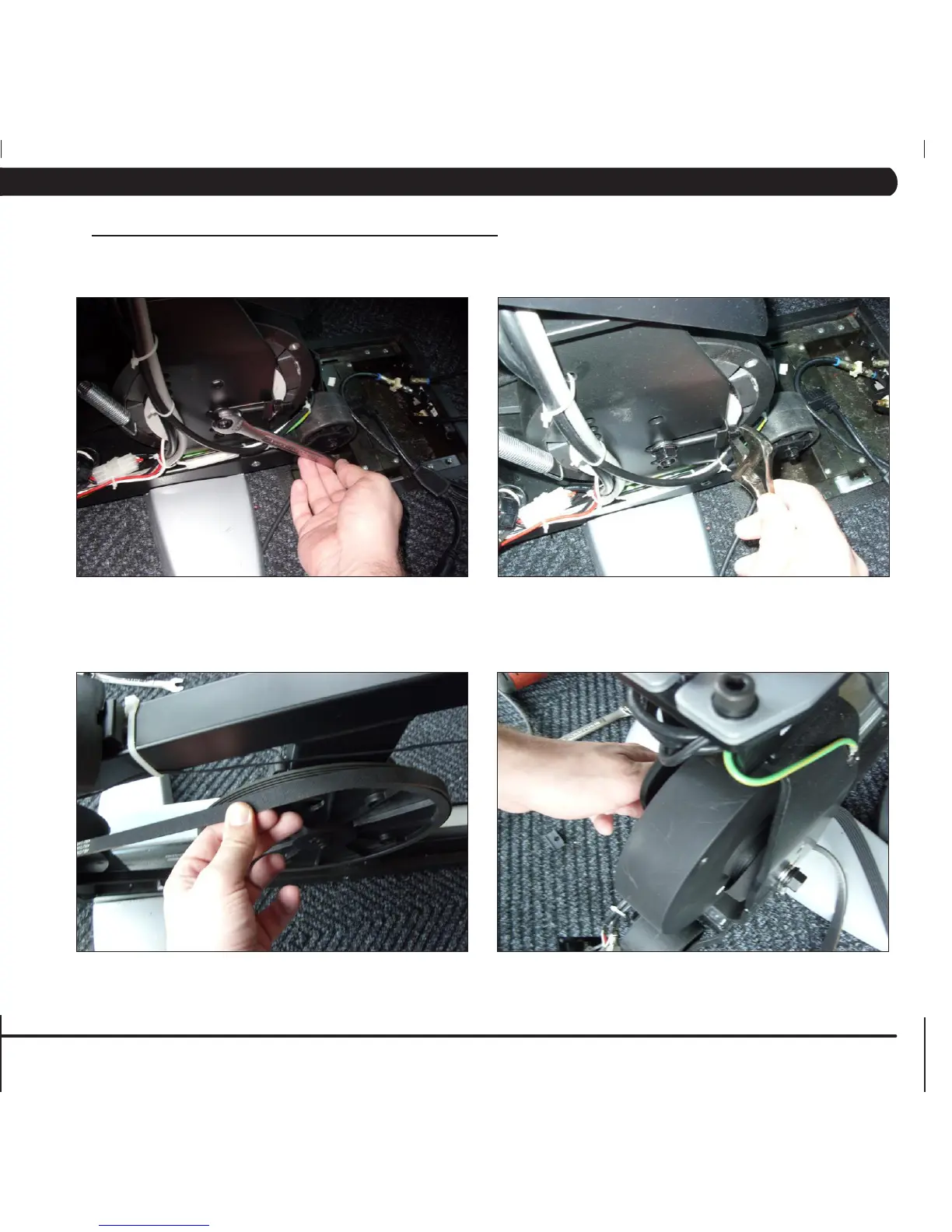

2) Loosen the nuts holding the ECB to the frame (Figure A), and remove the nuts putting tension on the ECB belt (Figure B).
3) Once the tension has been removed, the ECB belt can be walked off of the pulley (Figure C).
4) Pull the ECB out of the frame towards the front of the unit, and remove the ECB belt (Figure D).
5) Reverse Steps 1-4 to install a new ECB belt. NOTE: Be sure to retension the new ECB belt to 85 ft / lbs.
6) Test the bike for function as outlined in Section 8.21.
FIGURE A FIGURE B
FIGURE C
FIGURE D
